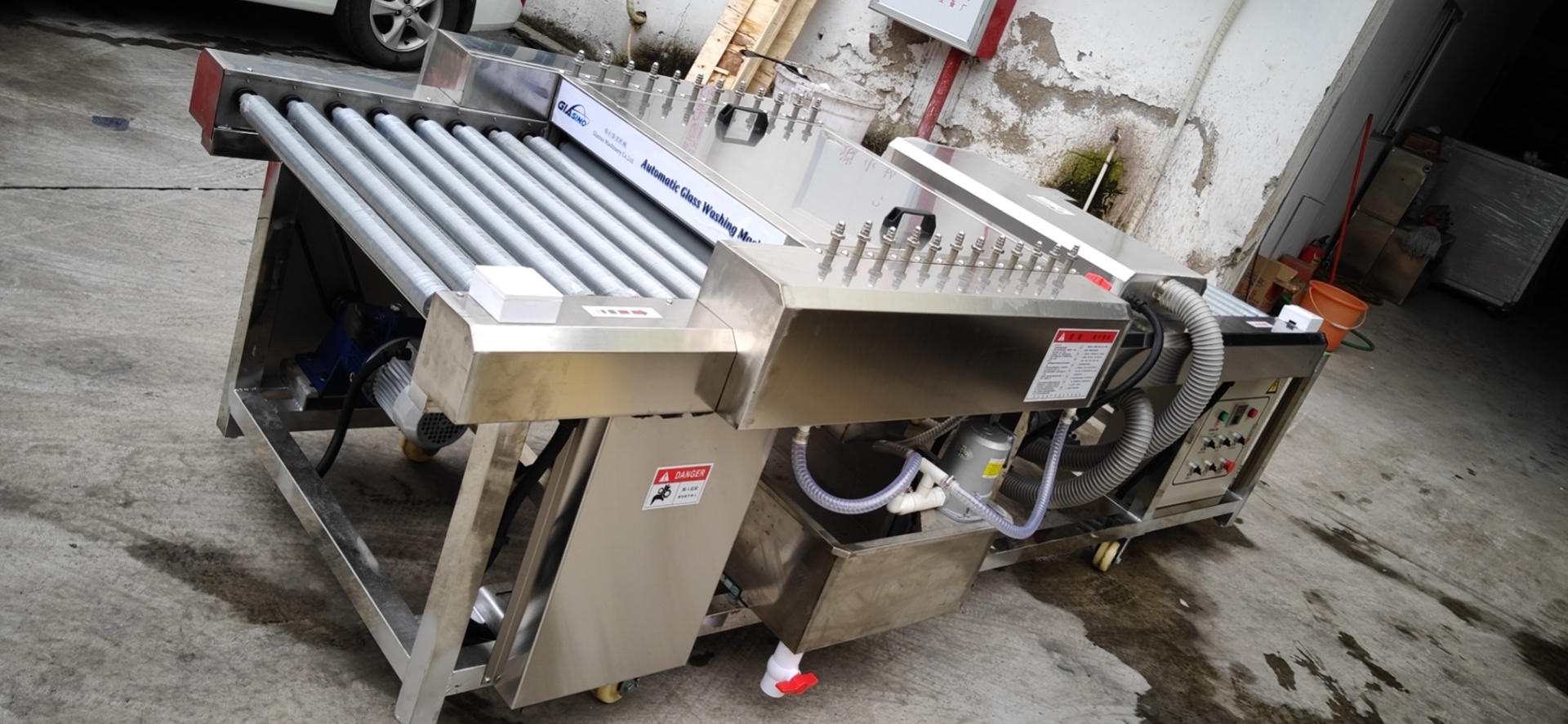

WT1200-2 Horizontal Glass Washing Machine
Category:
Summary:
The machine mainly consists of loading section,washing section,drying section and unloading section.
Tel:
E-mail:
DESCRIPTION
Features:
☆WT serial horizontal glass washing&drying machine is used for washing and drying flat glass.
☆The machine mainly consists of loading section,washing section,drying section and unloading section.
☆Main drive is chain drive and stepless speed regulation.
☆The machine is designed with two-step washing,and equipped with two tanks and high pressure pump.
☆The machine has five pairs of brushes and four pairs of sponge rollers
Technical Parameters:
|
Parameter |
WT-1600-2 |
WT-1200-2 |
WT-800-2 |
WT-500 |
|
Washing Speed |
1-5m/min |
1-5m/min |
1-5m/min |
1-5m/min |
|
Max. size(mm) |
1600×2500 |
1200×2000 |
800×1200 |
500×1000 |
|
Min. size (mm) |
120×120 |
120×120 |
80×80 |
35×35 |
|
Power supply |
15kw |
12kw |
8kw |
6kw |
|
Dimensions (mm) |
4200×2300×1200 |
3500×1750×1100 |
1800×1200×1050 |
1800×900×1000 |
|
Weight |
1800kg |
1250kg |
800kg |
500kg |
|
Work height |
900±20mm |
900±20mm |
900±20mm |
900±20mm |
Horizontal Glass Washing Machine is an advanced piece of equipment designed to deliver exceptional cleaning performance for a wide range of glass products. This machine combines efficiency, precision, and ease of use, making it an ideal choice for both small-scale workshops and large industrial operations.
The horizontal design of this washing machine ensures thorough and consistent cleaning by allowing water and cleaning solutions to flow evenly across the entire surface of the glass. Equipped with high-pressure nozzles, it effectively removes dirt, grime, and residues without causing any damage to the glass. The adjustable spray settings enable customization based on the type and size of the glass being cleaned, ensuring optimal results every time.
One of the standout features of the Horizontal Glass Washing Machine is its robust construction. Made from high-quality materials, it is built to withstand the rigors of continuous operation while maintaining its performance. The machine's compact footprint also makes it suitable for environments where space is at a premium.
In terms of safety, the Horizontal Glass Washing Machine comes equipped with various protective measures. These include emergency stop buttons and safety guards, ensuring that operators can work with confidence and peace of mind.
Overall, the Horizontal Glass Washing Machine is a reliable and efficient solution for all glass cleaning needs. Its combination of cutting-edge technology, durability, and user-friendly design makes it a must-have for anyone seeking to achieve spotless glass surfaces.
