Fully Automatic Horizontal Glass Four-side Edging Line
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
JL-KSP-2550/JL-KXP-2550 Automatic glass loading/unloading table
Equipment composition:
The equipment is suitable for four-sided grinding, double-sided grinding, multi-functional edge grinding machine, cleaning machine, cutting machine, silk screen, coating, mirror making, photovoltaic, frosted glass production lines, etc.
Working principle:
Loading table: Automatically extract the original glass from the glass rack, turn it over to the horizontal table, and automatically transport it to the edger or other processing workbench.
Unloading table: Automatically senses to receive the glass delivered from the edger or other processing workbench, absorbs and flips the transport, and releases it to the glass shelf.
Equipment composition:
1.Plc control device/conveying device/vacuum adsorption device/trolley traveling device/overturning device/voltage stabilizing device
2.Equipment performance:
3.The control system adopts imported PLC control, touch screen man-machine interface operation.
4.High-power servo drive system plus rack and pinion device, slide block plus linear guide device, high walking stability, precise positioning.
5.The transmission adopts a unique glass positioning device, which automatically senses the size of the glass to reduce the invalid movement of the glass path, high production efficiency.
6.Adopt well-known brand vacuum pumps, automatically control the work of the suction cup according to the size of the glass.
7.Suction cup single-point single-valve control, convenient operation, convenient maintenance
Double-channel overturning transmission chain and unique connecting rod device, high overturning stability and safety.
8.Electrical components and pneumatic components adopt well-known brands to ensure the continuous operation stability of the machine and realize Industry 4.0 unmanned chemical factory.
Technical parameters:
Equipment dimensions | 7600*2700mm | Number of flip side | Single turn |
Maximum loading size | 2400 * 3600mm flat glass | Number of single-arm suckers | 3 (adjusted according to product) |
Minimum loading size | 300 * 600 flat glass | Fetch cycle | 15-25 seconds / piece |
Film thickness | 3 ~ 16mm flat glass | Suction depth | 700mm |
Maximum loading load | 350KG | power supply | 380V / 50HZ |
Power | 7.5KW | Alignment method | According to customer requirements |
Belt transmission speed | 30m / min (adjustable) | Calibration mechanism | Split |
Vacuum pressure | -970 ~ 90Kpa | Compressed Air | 0.7Mpa (provided by the user) |
GS0825DL Fully Automatic Horizontal Four-side Edger
Main Features：
1.Adopts 3 bridges and 4 sets wheel structure. Each set of wheels can process up & down arris chamfering, bottom edge grinding and Low-E film removal at once. The processing speed is up to 40m/min.
2.Originate air cylinder type probe for positioning instead of contacting glass type to solve the problem of resetting parameter as the replacement of damaged probe, highly improve the lifetime of probe and make operation & maintain more convenient
3.Imported CNC servo system drive, transmission part adopts silicone roller for sync transmission, additionally polyurethane press wheel for up & polyurethane leaning wheel for side to make glass deliver more stable, more accurate position and more reliable grinding.
4.Glass width size adjustment adopts gear rack & gear reducer & servo motors for drive, equipped with straight guide, speed up to 60M/Min, automatic size adjustment, repositioning accurately.
Patent structure, perfectly meet the requirement for 3-12mm glass.
5.Fully imported servo motors to make machine more stable & reliable. Imported CNC control system, easy to operate, high automation. Compare to PLC control system, CNC system calculate & communicate more quickly, accurately and stably, effectively solve the stable problem of system.
6.Roller transmission adopts gear-occlude structure, more stable & durable.
Spindles adopts motorized spindle level waterproof and bearing fit to effectively solve the lifetime problem of spindles.
7.Available to connect with MAS ERP software ect, it seamlessly integrated into washing machine, loading & unloading table, transition table and remote cloud.

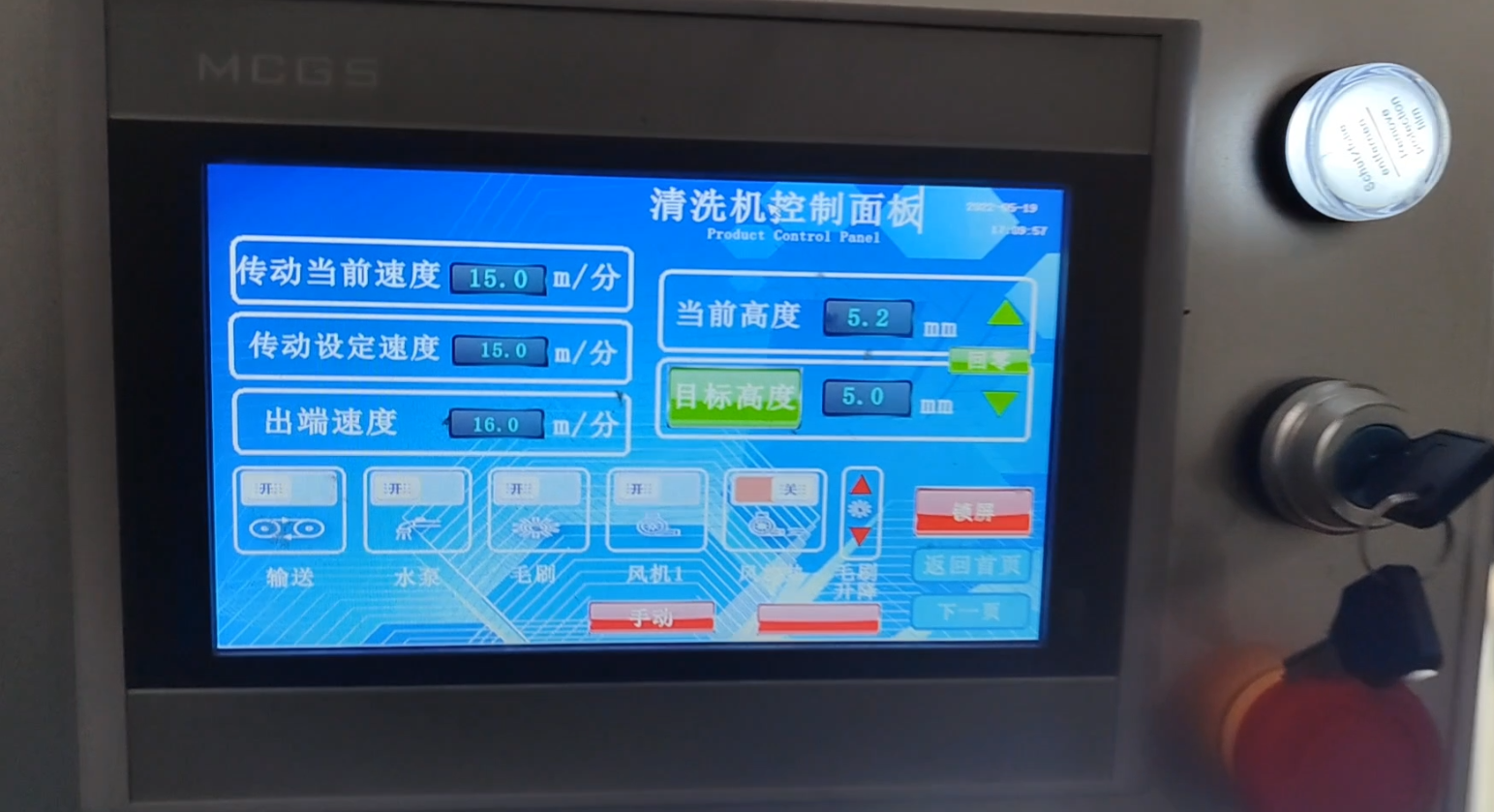

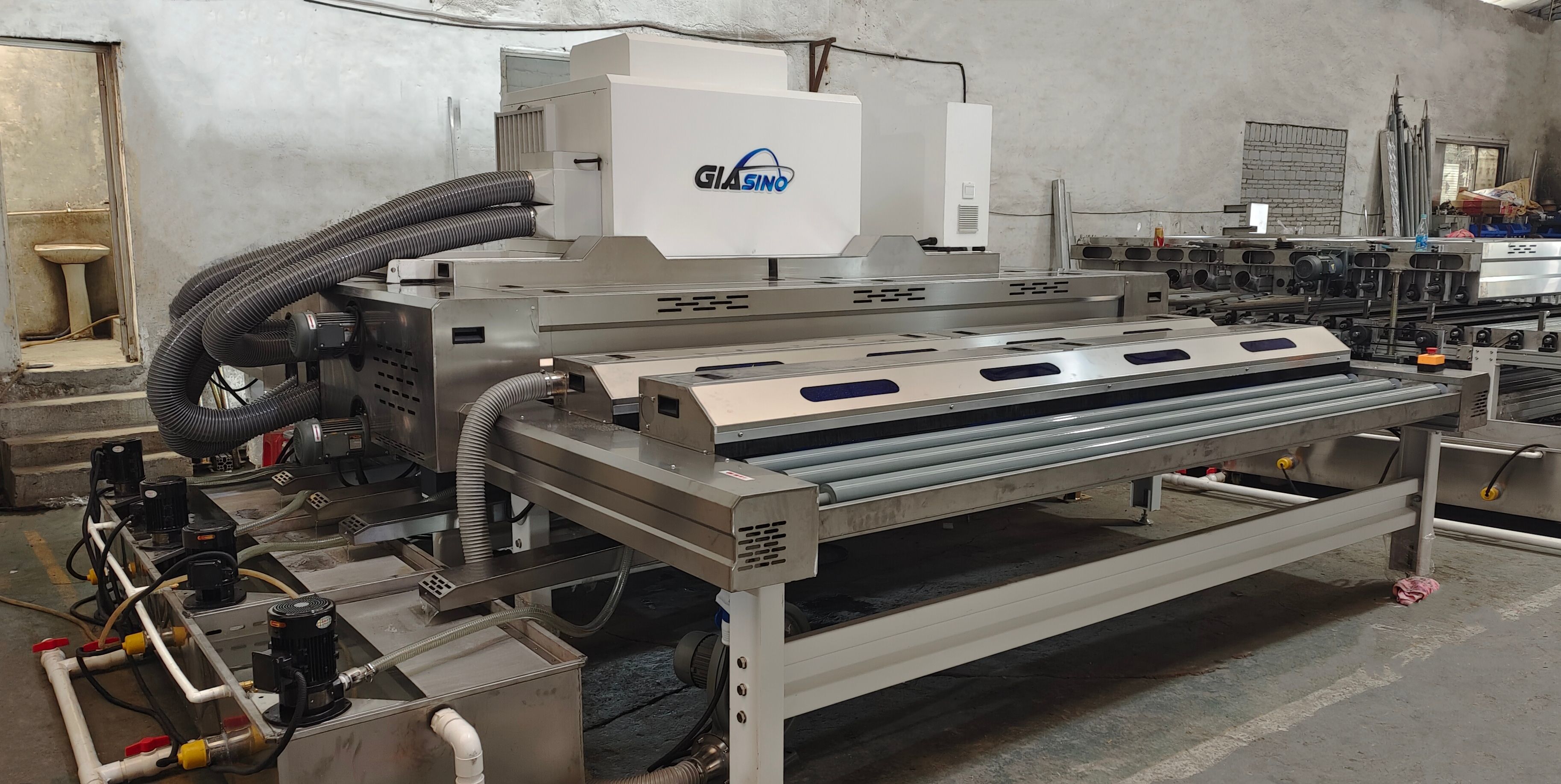

Horizontal Automatic Glass Washing Machine 2500mm
Introduction to the performance and advantages of glass washing machine:
1. Constructed adopts aluminum profile assembly technology, and there is no concept of scrapping for life. The upper shelf in the cleaning room is welded with 5 mile stainless steel plates. Features: large force, good support, not easy to deform, not easy to wear. The sheet metal shield and bucket are made of high-quality stainless steel
2. The air knife is formed by die-casting aluminum alloy with German technology. Features: large air volume and low noise
3. Three sets of 160MM diameter brushes in the cleaning room, which can wash LOW-E glass
4. There are 4 water pumps, each group of brushes has a separate water pump for water supply, and 2 groups of sprayers with air knives at the inlet end to blow water
5. The diameter of the rubber roller is 75MM and the brush is all made of stainless steel shaft head
6. The fan and air knife adopt circulating air design, the air knife of 2500 standard washing machine adopts two straight design (one set of straight line air knife and one group of multi-slope air knife), the air knife of 2500 high-speed glass washing machine adopts three straight design (one set of straight line Two sets of multi-slope design) fan with heating function.
7. The transmission mode is 3-mode helical belt frequency conversion speed regulation, features: low noise and low load.
8. The driving mode of the brush is independently driven by the upper and lower brushes, driven by the imported SPA belt, and the brush motor adopts the gear motor motor. Features: large torque, and the brush will not be stuck due to frequency conversion.
9. The whole machine is controlled by PLC. The contactor adopts Schneider Electric, and the electric cabinet is installed above the machine, which is safer and does not occupy space.
10. All the screws of the whole machine are made of stainless steel screws.
