6000mm Aluminum Profile Cnc Milling And Drilling Machining Center
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
Machine introduction:
- It is suitable for drilling, milling, tapping, round hole, special-shaped hole and plane carving of aluminum alloy profiles;
- It Adopts PA CNC system,which makes sure smooth running of machine.
- Electrical spindle is Italy brand air cooling 9KW, ATC, 18000r/min.
- Imported Taiwan Italy guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine .
- CAD-CAM Programming software can automatically convert G code,you can drawing any holes on computer.
- Adopt auto oil supply system, blades adopt system control spray cooling device.
- The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
- The main components adopt steel structure and they are all through aging treatment.
- Effective processing width: 300mm;
- Adopt 6 sets tool magazine, can change different tools automatic.
Technical parameter：
Model | JGZX-CNC-6000 |
Working voltage | 380V 3Phase 50HZ |
Tool Magazine | 6 pieces |
Total Power | 11.5KW |
Max rotary speed | 24000r/min |
X-axis Journey | 5500MM |
Y-axis Journey | 400MM |
Z-axis Journey | 350MM |
Air Pressure | 0.6-0.8MPA |
Air consumption | 100L/min |
Spindle Power | 9.0KW ATC Air Cooling |
Weight | About 2300KG |
Machine Configuration：
Specs. | Details and brand |

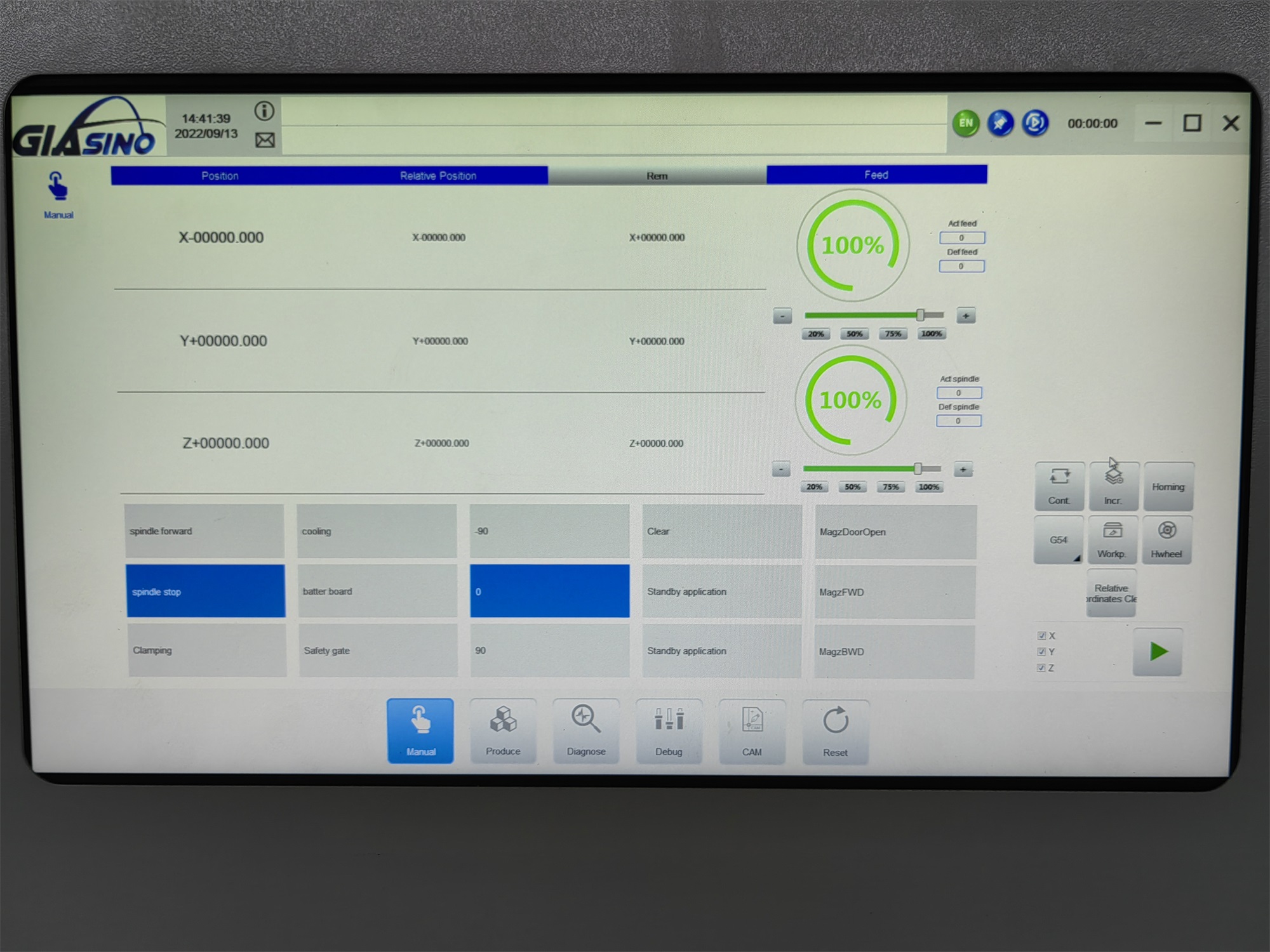

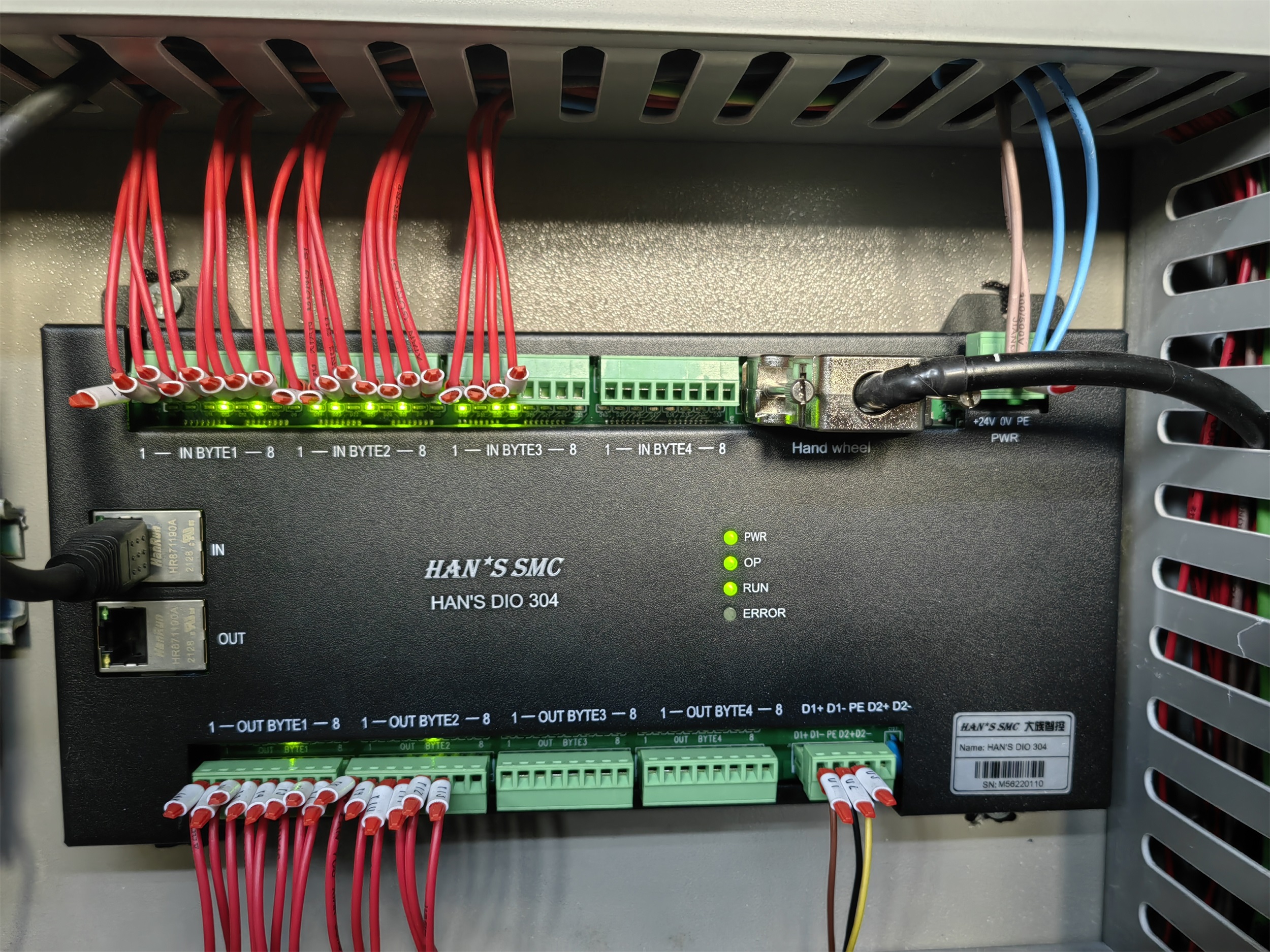

Controller | HANS PA industrial CNC system is equipped with professional CAD-CAM programming software |
touch screen | 21.5inch |

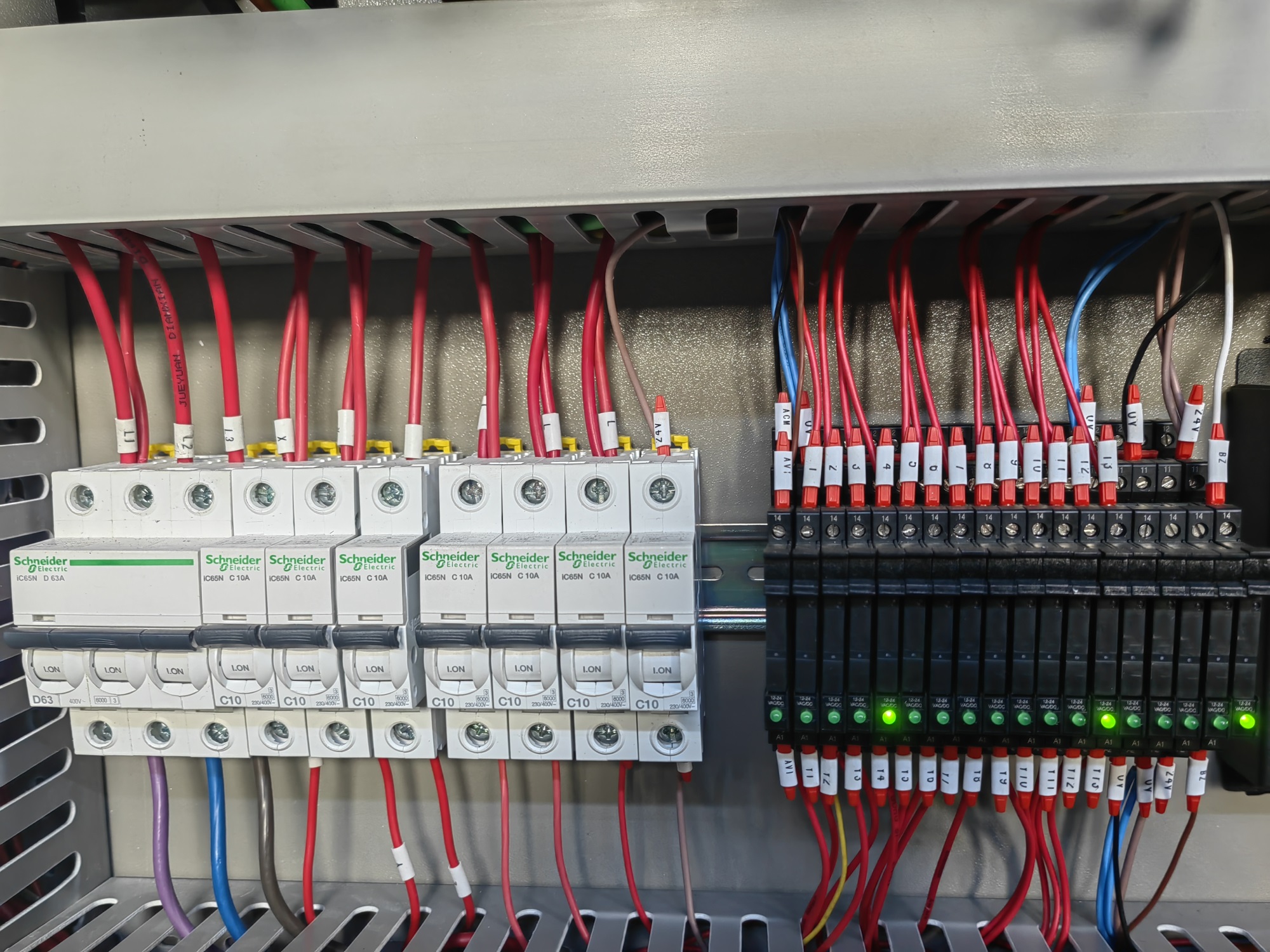

Low-voltage electrical | Schneider |

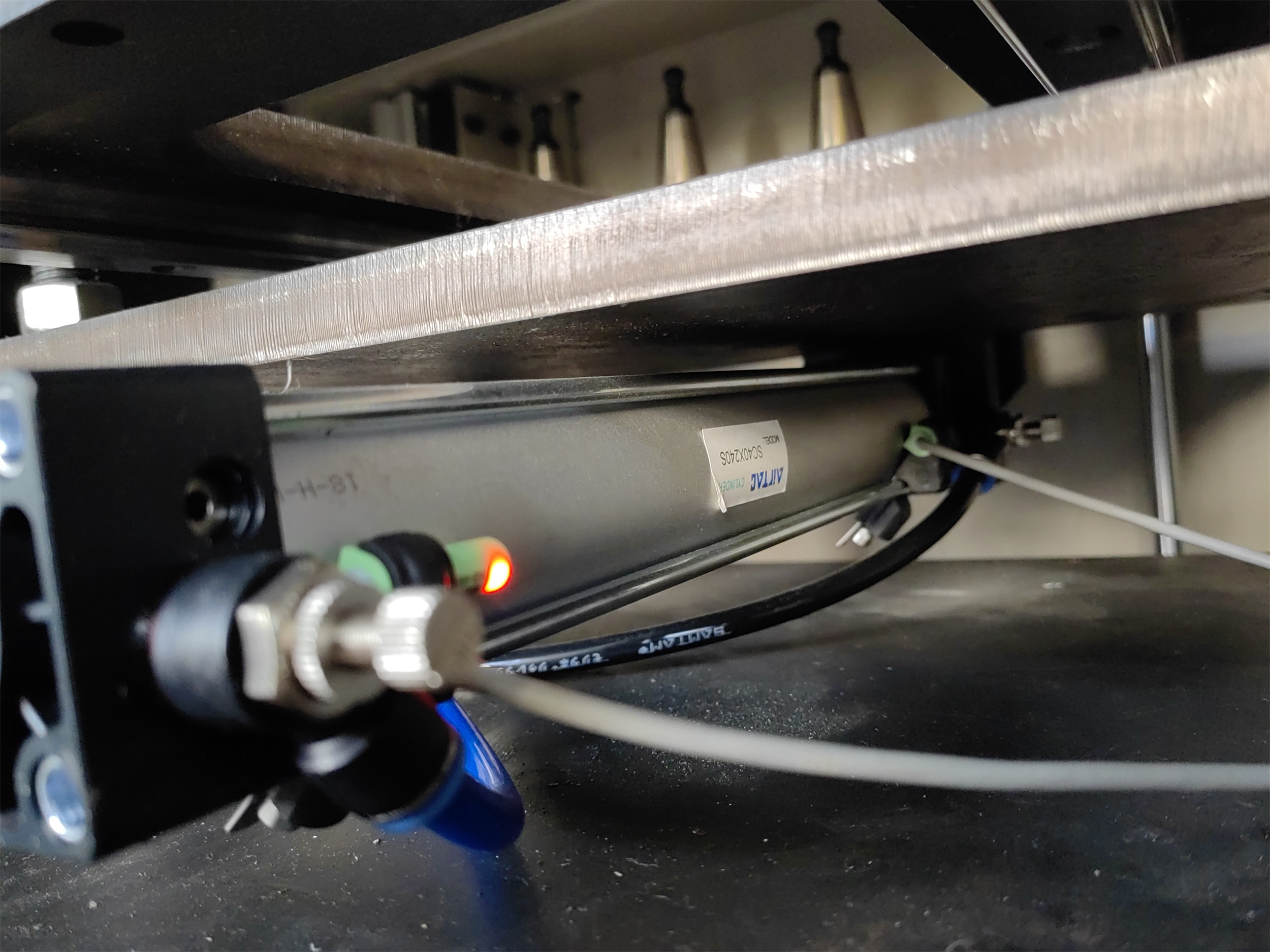

Cylinder | Taiwan AirTac |
Solenoid valve | Taiwan AirTAC 24V |

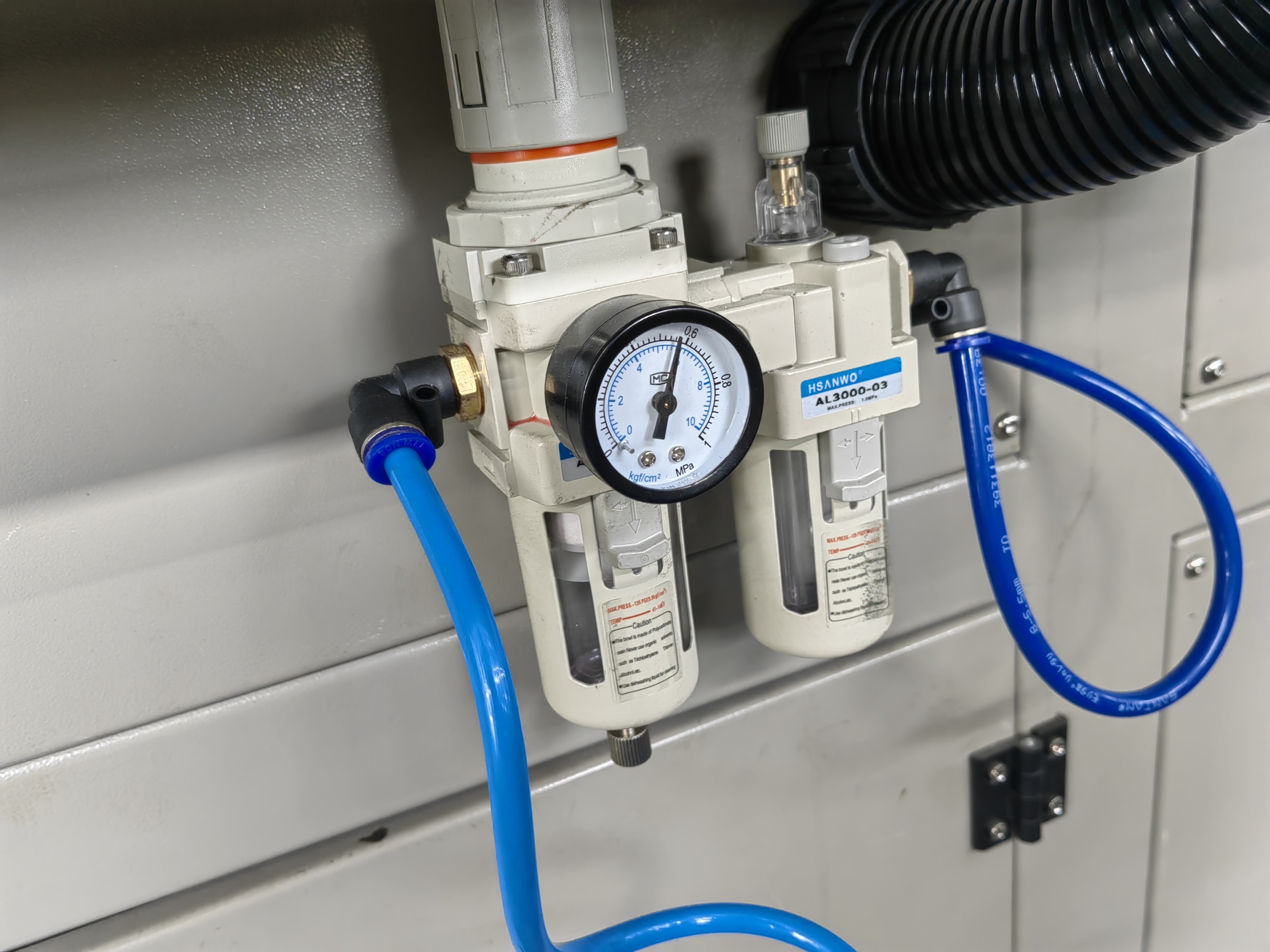

Water Separator | HSH |

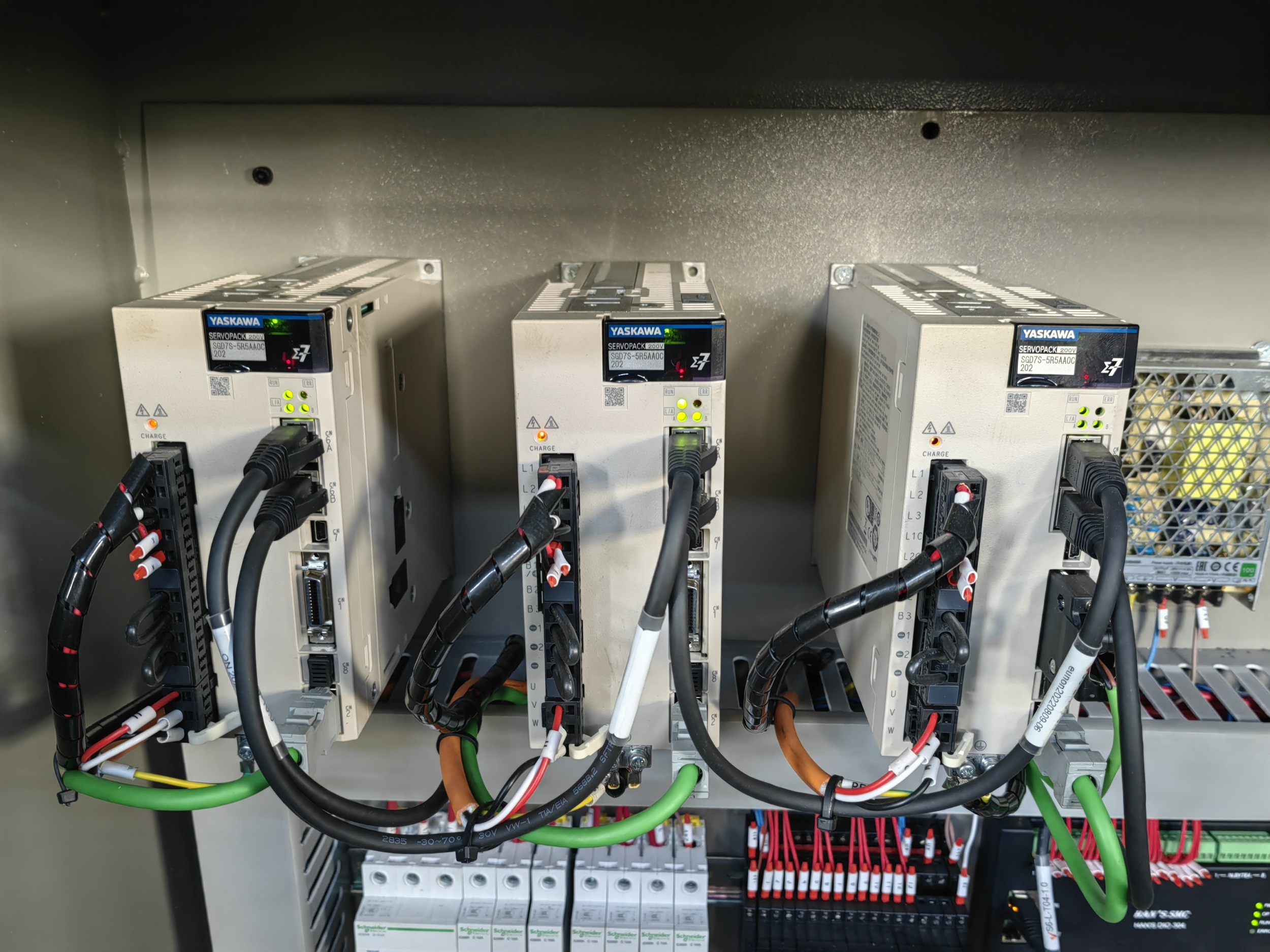

Servo driver | Japan Yaskawa |
Driver motor | Japan Yaskawa |

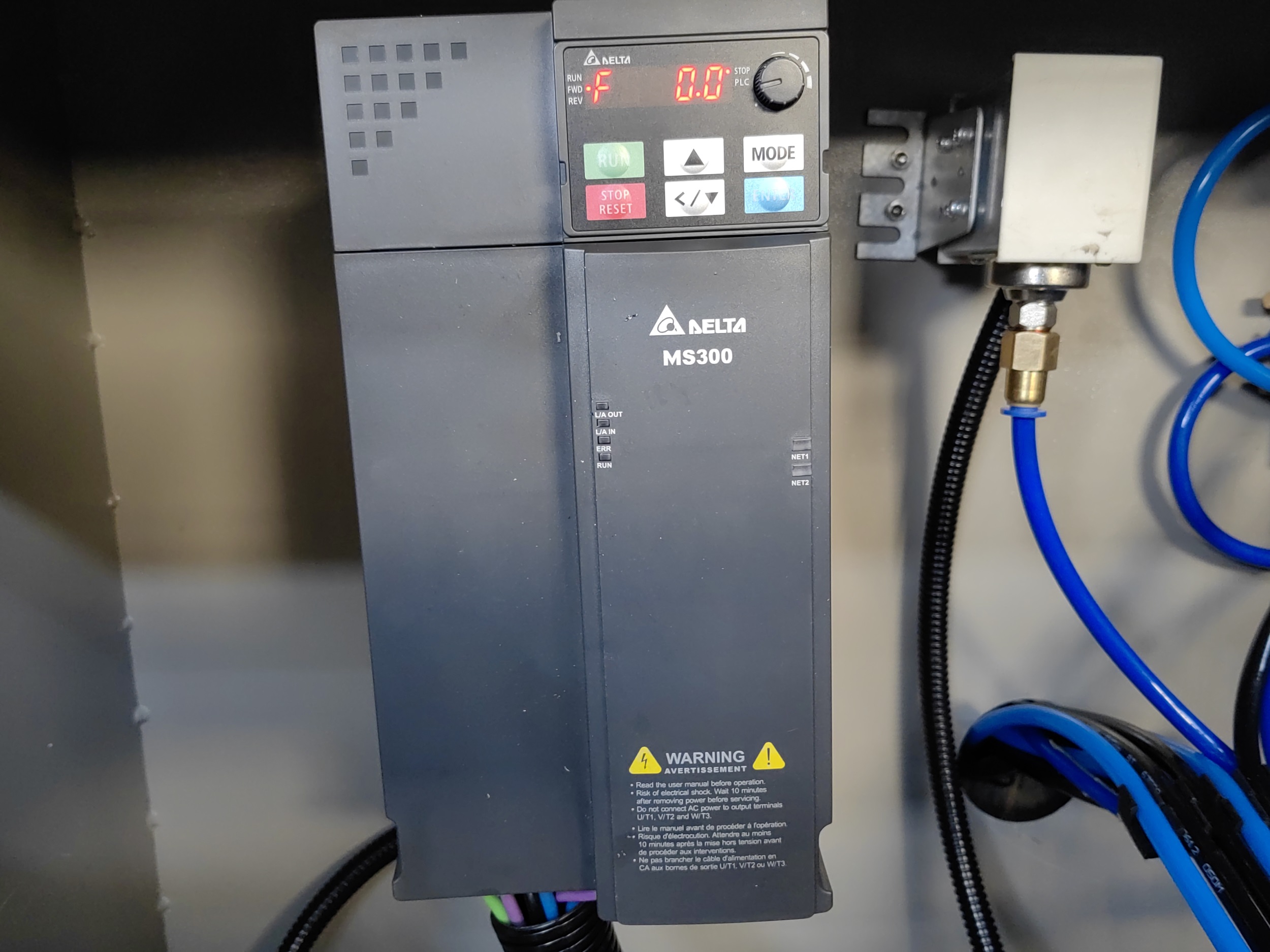

Inverter | Invoice, China |
Spindle | Italy 9.0KW OLI |

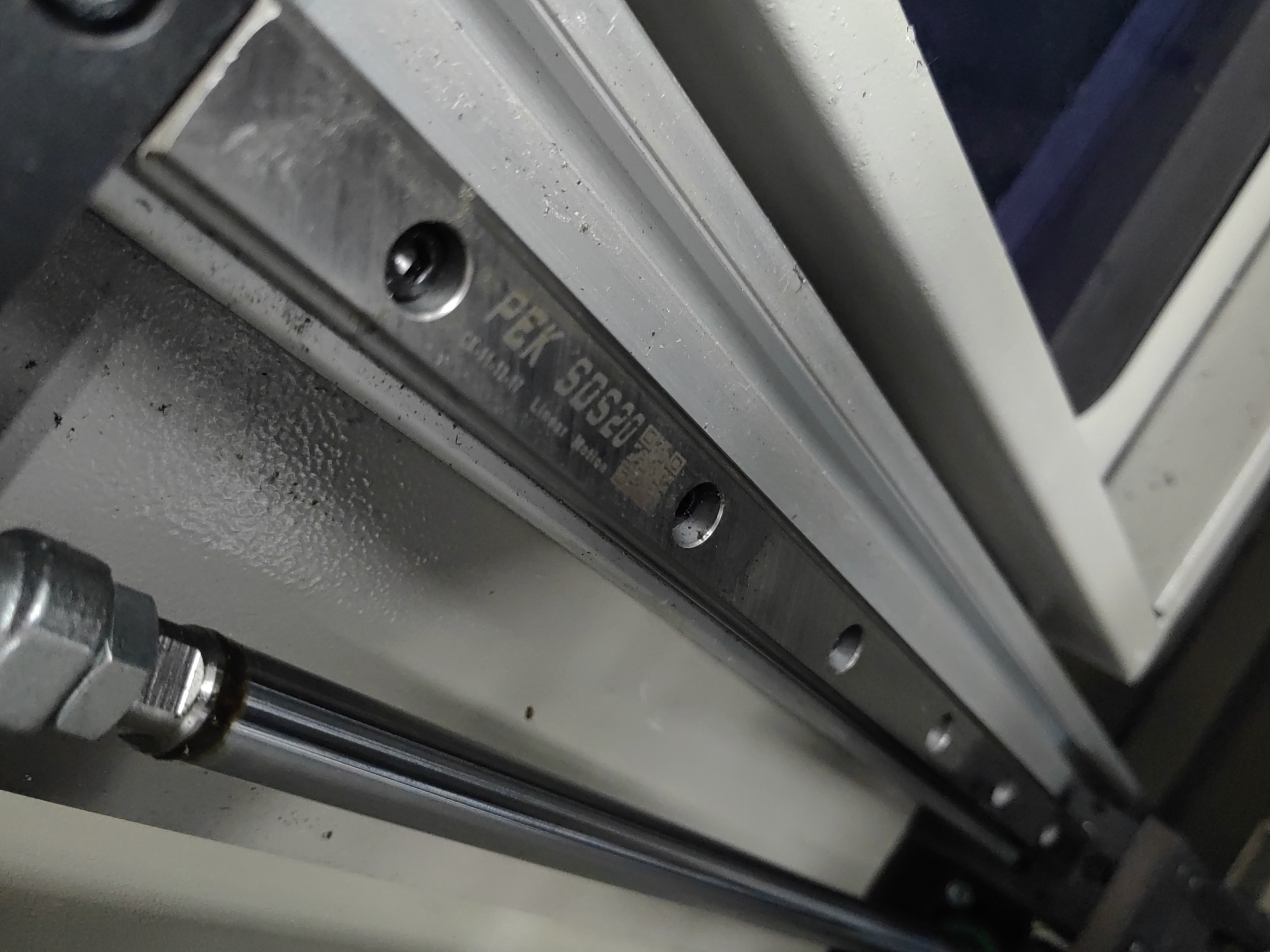

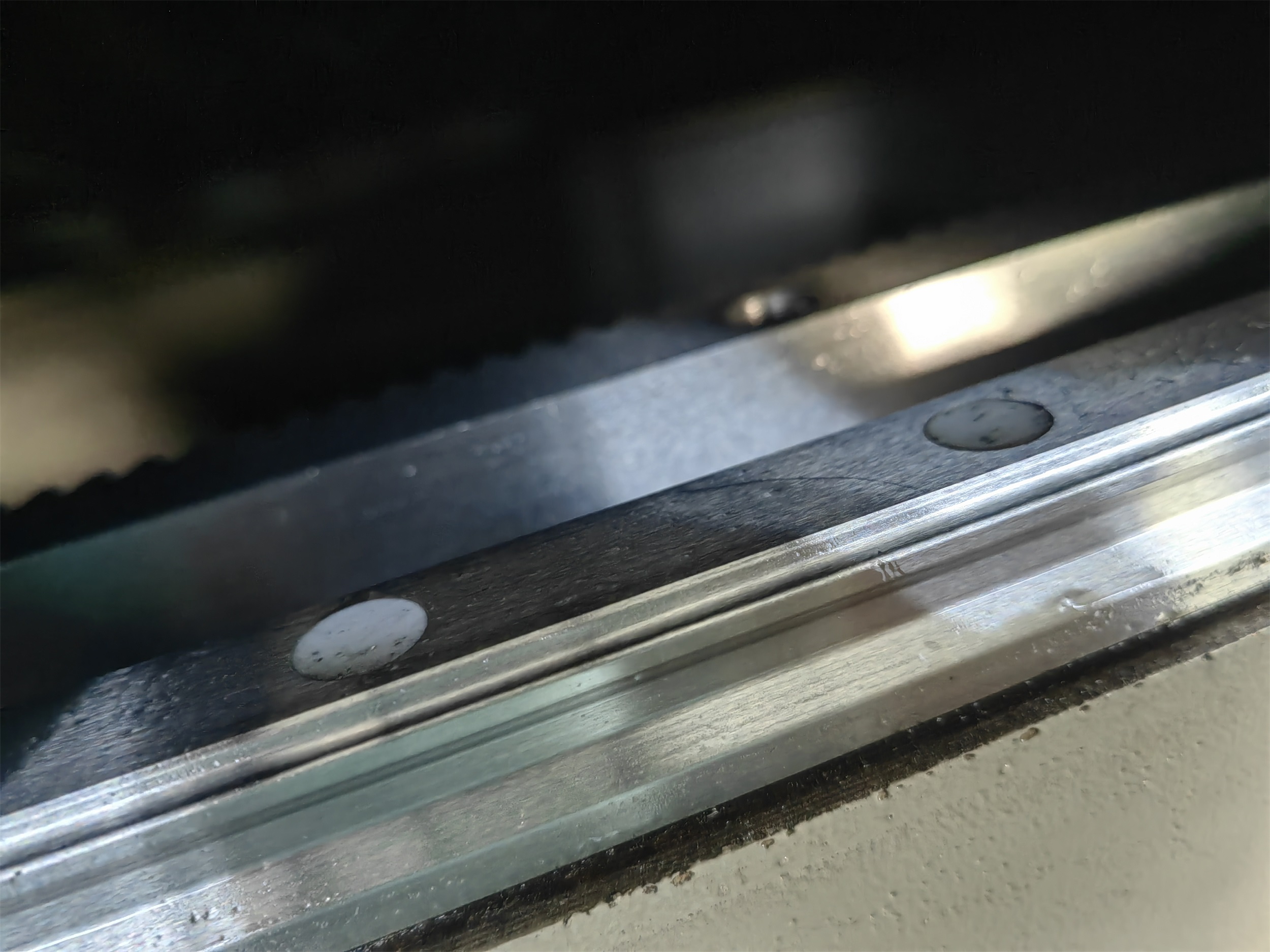

Linear guide rail | Itlay PEK |
Ball screw | Taiwan China |
Machine head | cast iron |
Rotated angel | 0° |
Processing speed | 0-60m/min |
Machine dimensions | About 7000*1950*2200mm |
Processing range | 300*150mm |

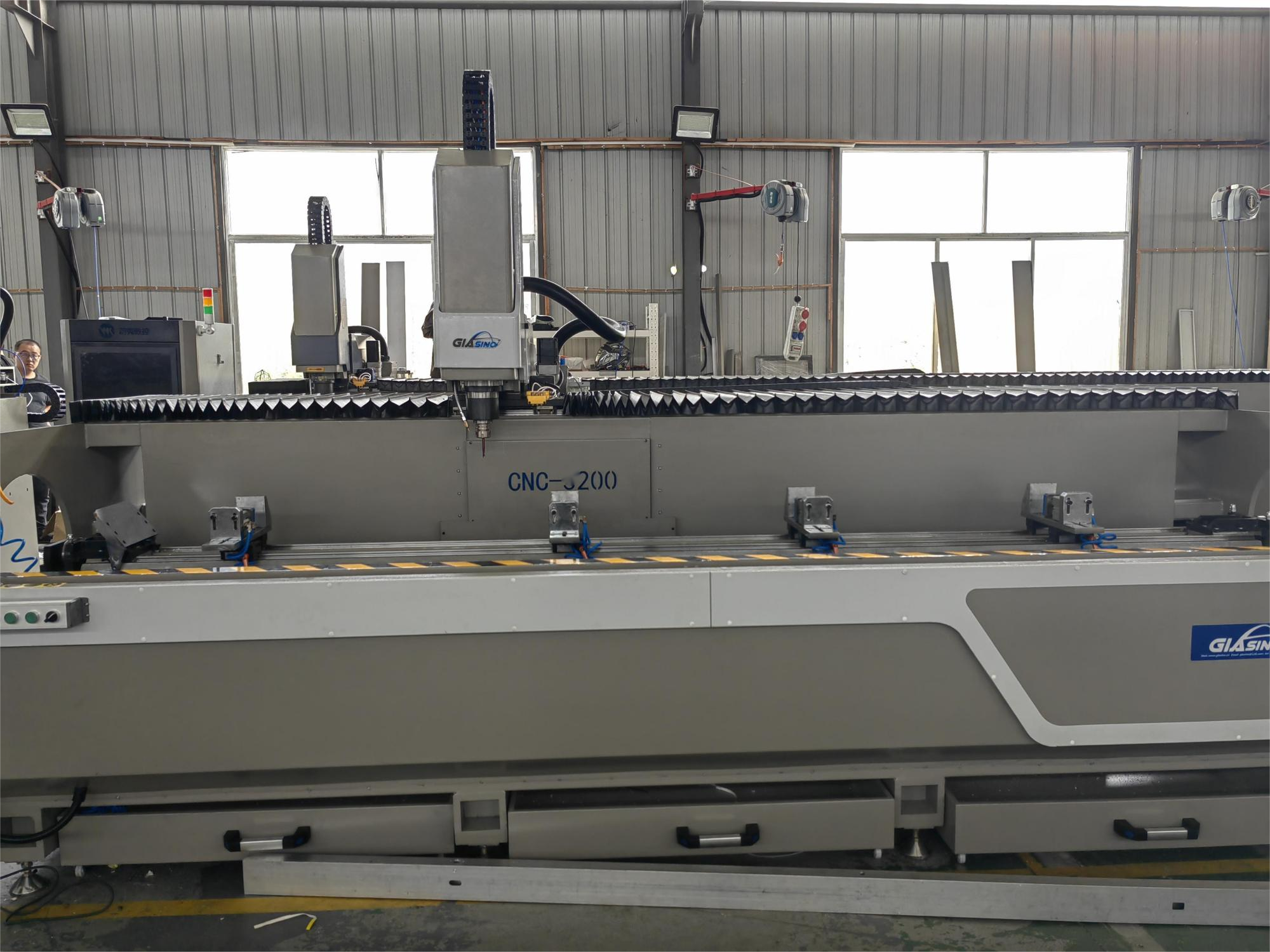

More pictures of machine for your reference:
|
|
|
|
|
|
|
|
|
|

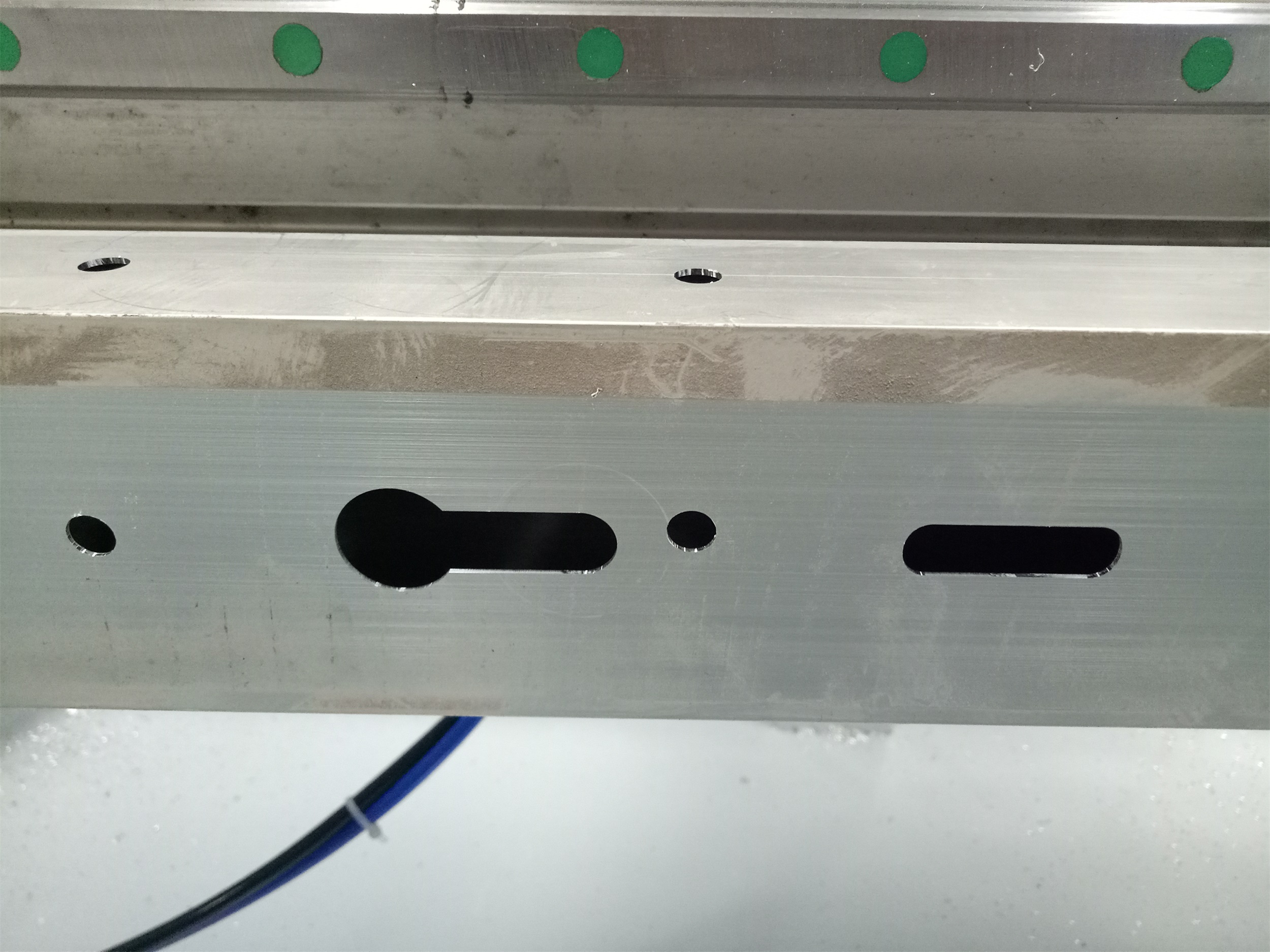

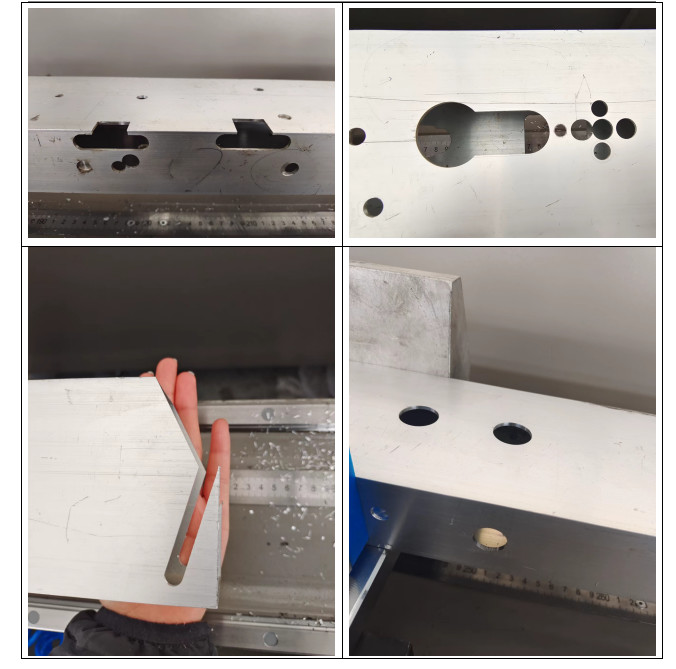

Working samples | |
|
|
