Automotive Glass Bending Furnace
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
Main structure of equipment:
The continuous hot bending furnace is a combined structure of the whole frame, which is welded by section steel, with a total of 26 chambers, 13 chambers in the upper part and 13 chambers in the lower part. There are lifting and lowering mechanisms at both ends of the furnace body, and its operation form is continuous cyclic action. The top of continuous hot bending furnace with refractory rock wool and domestic and foreign joint venture insulation asbestos board insulation material, insulation effect is good. Under the furnace top is the heating element, from zone 0 is the waiting zone, zone 1-6 is the electric heating preheating zone, zone 7-9 is the electric heating preforming zone, and zone 10-12 is the electric heating forming zone. The glass after forming is driven by the rear lifting mechanism to the lower layer of the furnace for annealing and cooling, and a set of twice forming pushing mechanism is installed in zone 11 and 12, and the large spherical product is formed twice on the hot bending furnace by using the twice forming pushing mechanism (motor), so as to improve the optical and profile problems of the large spherical product.
Main equipment configuration:
Name | Brand |
Steel | The furnace body adopts high-quality profiles and steel plates (carbon steel Q235/Q345) |
Thermal insulation cotton | the use of high quality aluminum silicate cotton and aluminum silicate fiberboard |
Reducer | SEW |
Heater | The electric heating wire adopts KANTHAL brand |
Terminal computer | Advantech |
PLC/ Inverter | Japan Omron |
Moulded case circuit breakers and contactors | Schneider |
Micro circuit breaker | Schneider |
Solid state relay | Omron |
Thermocouple | Anhui Tiankang |
Infrared thermometer | RAYTEK |
Photoelectric switch/proximity switch | Japan Omron |
Main technical parameters:
SACBF-25-16-24 -E continuous hot bending furnace is not only suitable for multi-variety small batch production, but also suitable for single variety mass production; At the same time, the production of multiple varieties, different molding processes, different spheres of automotive glass. The yield of glass hot bending is in the leading position of similar hot bending equipment. Both optical and physical properties have reached a higher level of similar products.
Product performance, quality standards | in line with GB-9656(2021) automotive safety glass, European ECE R43/ ANSI Z-26, American DOT requirements |
Product stress | Inner band tension max. ＜6 MPa |
Min. Edge compression | ＞5 MPa |
Processing glass minimum size | 1000*600, maximum size: 2000*1500 (mold without hinges/counterweights，with twice-formed pushing mechanism)，2300*1400（mold with hinges/counterweights， without twice-formed pushing mechanism） |
Glass thickness (Double layer) | 3.0~6.0mm |
Maximum arch height | 380mm |
Min. radius of curvature | 110 mm |
Rate of change | <1.5 mm/400 mm |
Max. central sag | 38 mm |
Yield min. | 97% |
Max. off form | ±1 mm |
Max. central curvature variation | ± 2mm (sag≤15 mm),±3mm (sag 15-30 mm)，± 4mm (sag >30 mm) |
Temperature glass at exit | <80°℃(Text <35℃) |
Capacity | 1200 pairs /24 hours（2mm+2mm）, 900 pairs /24 hours（3mm+3mm） |
wagon Size | length 2500mm, width 1600mm, height 460mm |
Number of wagons | 24, adopting full box type structure |
Power supply | 380V, 50HZ, 3 Phase+1N+1G |
energy consumption | 10-14kw/h/m² |
compressed air | 3-6bar about 30L/min |
control system | PLC variable frequency control and human-machine interface data interaction control |
The total design power | 1742KW(heating power load of the furnace is 1642kw,+the total motion power load is 100kw) ,and the average use power is 60% |

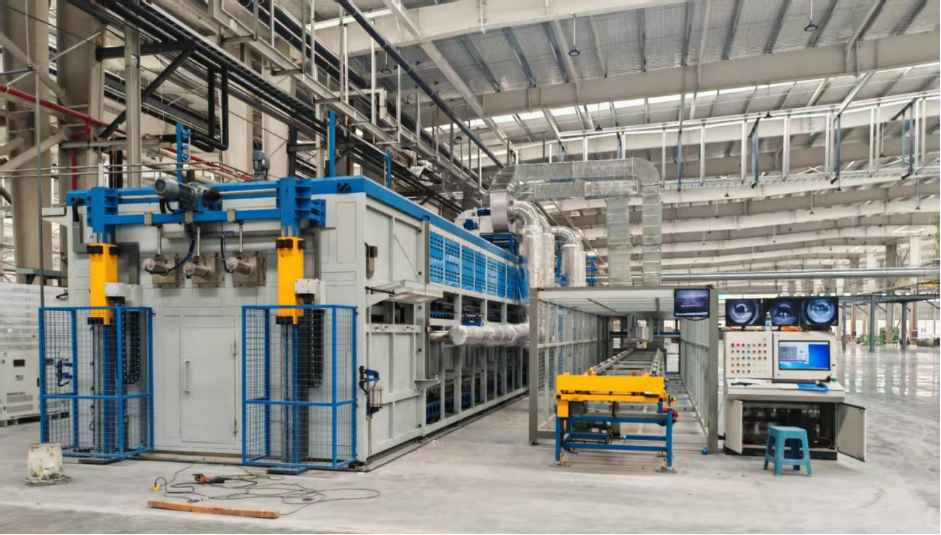

Equipment diagram:
