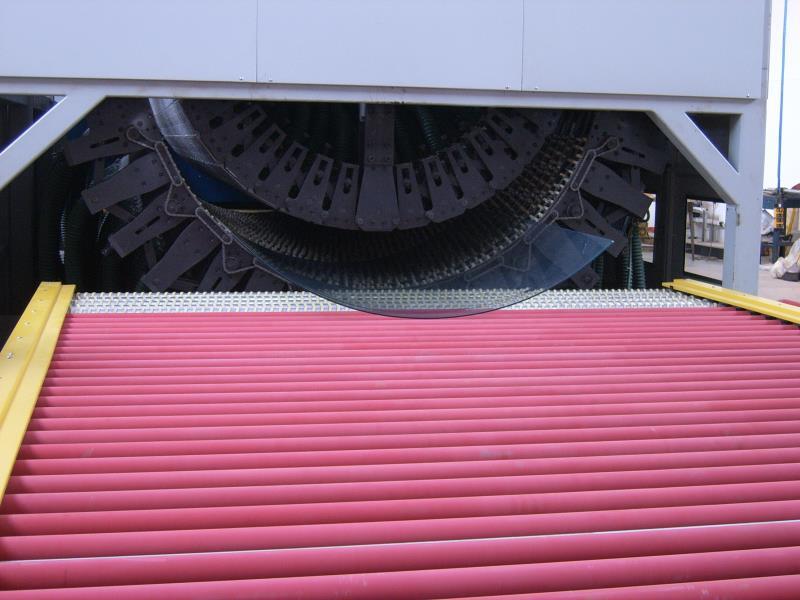

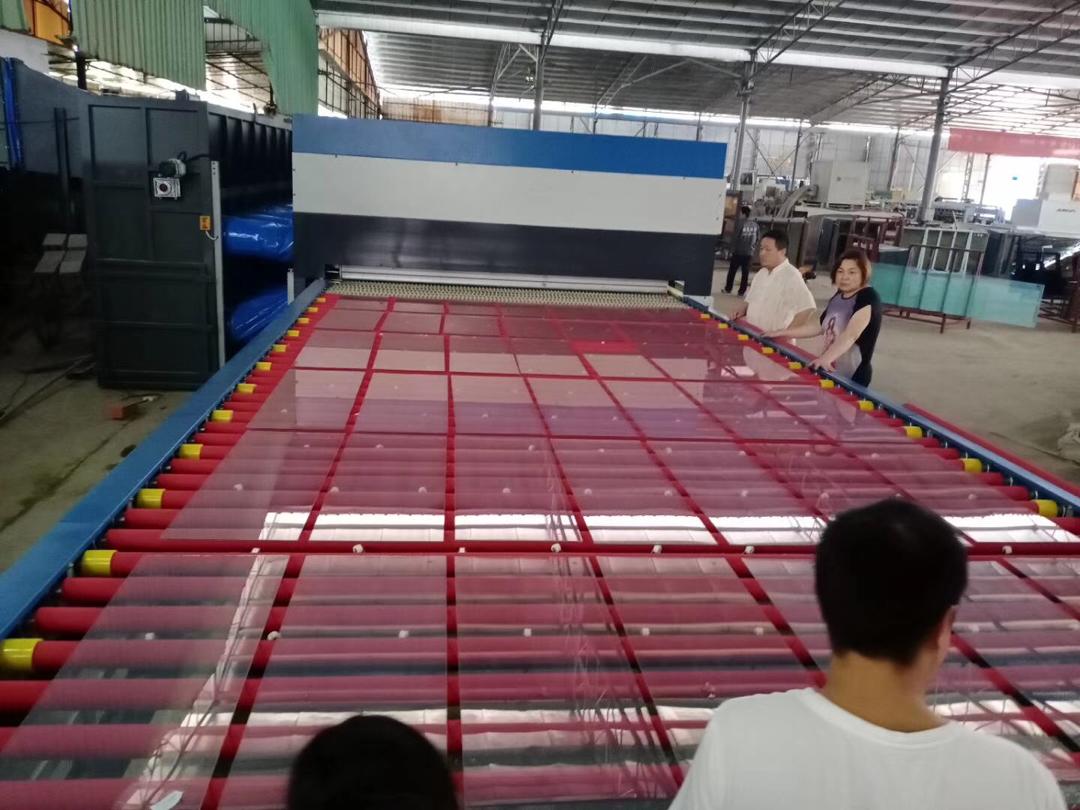

Flat / Bend Glass Tempering Furnace
Category:
Summary:
2.The temperature control module is accurate and precise, with high speed and high inhibition rate
Tel:
E-mail:
DESCRIPTION
Product features:
1. Intelligent control system man-machine operation interface
2. The temperature control module is accurate and precise, with high speed and high inhibition rate
3. Furnace door adopts advanced guillotine slide blade design
4. Open and close freely with high resistance to deformation
5. Synchronous O-belt adopts double groove design
6. The reciprocating of heating section is more stable and online replacement is efficient and convenient
7. Tempered glass: ultra white glass, screen printing glass, embossed glass, colored glass, white glass, etc
Technical specification:
|
Model |
Max.glass size （mm） |
Min.glass size(mm) |
Glass thickness(mm) |
Production (㎡/h) |
Installed capacity(KVA) |
|
AT-TA1225 |
1250*2500 |
100*250 |
3-19 |
53 |
200 |
|
AT-TA1636 |
1600*3660 |
100*250 |
3-19 |
91 |
400 |
|
AT-TA2036 |
2000*3660 |
100*250 |
4-19 |
126 |
500 |
|
AT-TA2436 |
2440*3660 |
100*300 |
4-25 |
152 |
630 |
|
AT-TA2442 |
2440*4200 |
100*300 |
4-25 |
173 |
630 |
|
AT-TA2450 |
2440*5000 |
100*300 |
4-25 |
202 |
800 |
|
AT-TA2460 |
2440*6000 |
100*300 |
4-25 |
245 |
1000 |
|
AT-TA2B42 |
2850*4200 |
200*350 |
5-25 |
213 |
800 |
|
AT-TA2850 |
2850*5000 |
200*350 |
5-25 |
247 |
1000 |
|
AT-TA2860 |
2850*6000 |
200*350 |
5-25 |
301 |
1000 |
|
AT-TA3050 |
3000*5000 |
200*400 |
5-25 |
267 |
1000 |
|
AT-TA3060 |
3000*6000 |
200*400 |
5-25 |
321 |
1250 |
|
AT-TA3350 |
3300*5000 |
200*400 |
5-25 |
300 |
1000 |
|
AT-TA3360 |
3300*6000 |
200*400 |
5-25 |
352 |
1250 |
Key words:
glass tempering furnace
glass tempered machine
tempered glass making machine
glass tempering oven
glass machine
