11 Motors Straight Line 45 degrees Glass Edging Machine
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
1. Description
GS 11325C-45°Glass straight line edging machine using PLC to control glass thickness and angle
1.Suitable for grinding straight edge of different size and thickness flat glass .
2. The coarse grinding, fine grinding, clamfering and polishing can be finished at one time. The #1-#5 grinders can be swung 0~45°as request to grinding straight edge with angle 45°.
3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission
4. Adjust front rail to match different glass thickness.
5.The machine is equipped with automatic clamping system and voltage stabilizing system.
6. PLC control, easy operation, high precision and efficiency, this machine becomes one of indispensable equipment for glass procession.
2.Technical Specifications
voltage | Power | Glass thickness | Min size |
380v/50Hz | 24kw | 3-25mm | 80x80mm |
Feeding speed | Angle | Weight of machine | Overall Size(LxWxH) |
0.5-5m/min | 90 or 45 | 3200kg | 7000x1000x2500mm |

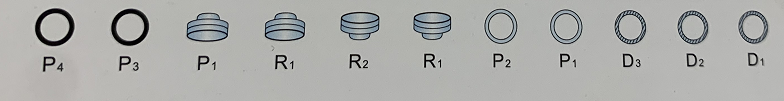

3.Position of Wheels
4. Machine Configuration
4.1.Foundation, beams : cast steel, annealing treatment.
4.2.JINGLONG motors.
4.3.Schneider electrical components
4.4.PLC control
5. Machine Configuration With Photos

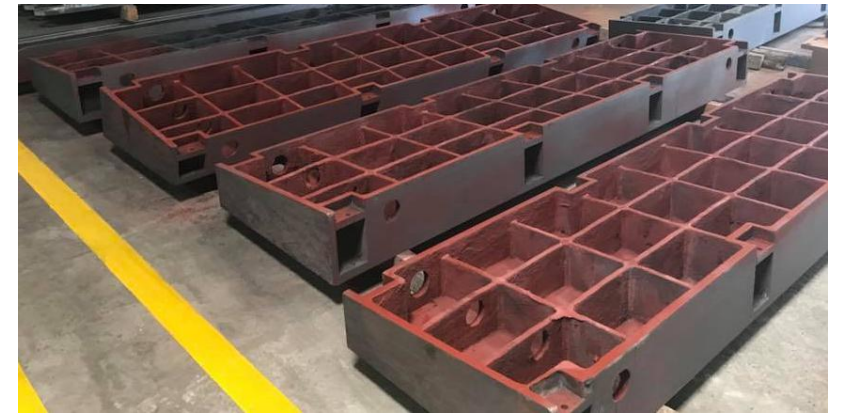

1.Foundation, beams are heavy duty cast steel, annealing treatment. Stable, will never deformation and Ensure high process precision.

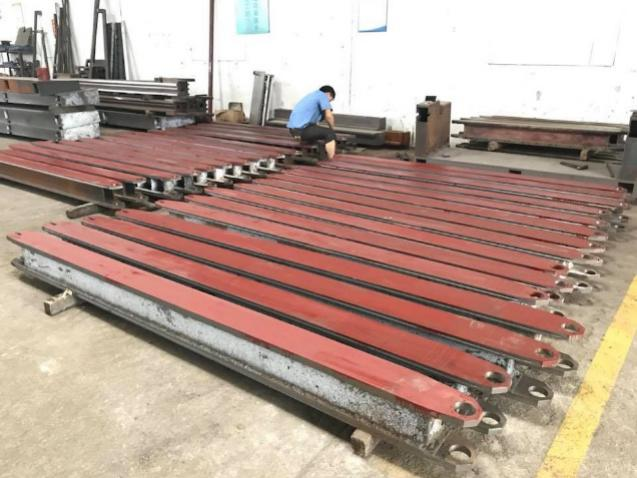

2. Use CNC grind machine grind beams, provide high process precision.

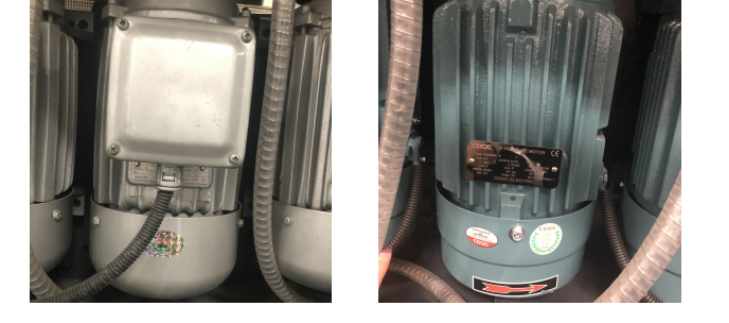

3. All the spindles are JINGLONG motors motors. Best quality provide.
Plastic transparency breakwater, can prevent water splash and easy observe the grinder work status.
The glass edging machine is a remarkable piece of equipment that plays a crucial role in the glass processing industry. It is designed to precisely shape and finish the edges of glass panels.
This machine typically features a set of abrasive wheels or belts that are used to grind and polish the glass edges. It can create various edge profiles, such as flat, beveled, or rounded, depending on the specific requirements.
The glass edging machine offers several significant benefits. Firstly, it enhances the appearance and quality of the glass. Smooth and well-defined edges not only look aesthetically pleasing but also increase the safety of the glass.
It also improves the functionality of the glass. Precise edging allows for better fitting and sealing when the glass is incorporated into different applications, such as windows, doors, or furniture.
The machine is highly efficient and can process a large number of glass pieces in a relatively short time. This helps to increase productivity and meet the demands of busy manufacturing operations.
Furthermore, modern glass edging machines are often equipped with advanced control systems that ensure accuracy and repeatability. Operators can easily adjust the settings to achieve the desired edge finish for different types of glass.
In addition to its primary function of edging, some machines may offer additional features like corner rounding or edge chamfering. This provides more flexibility in meeting the diverse needs of customers.
