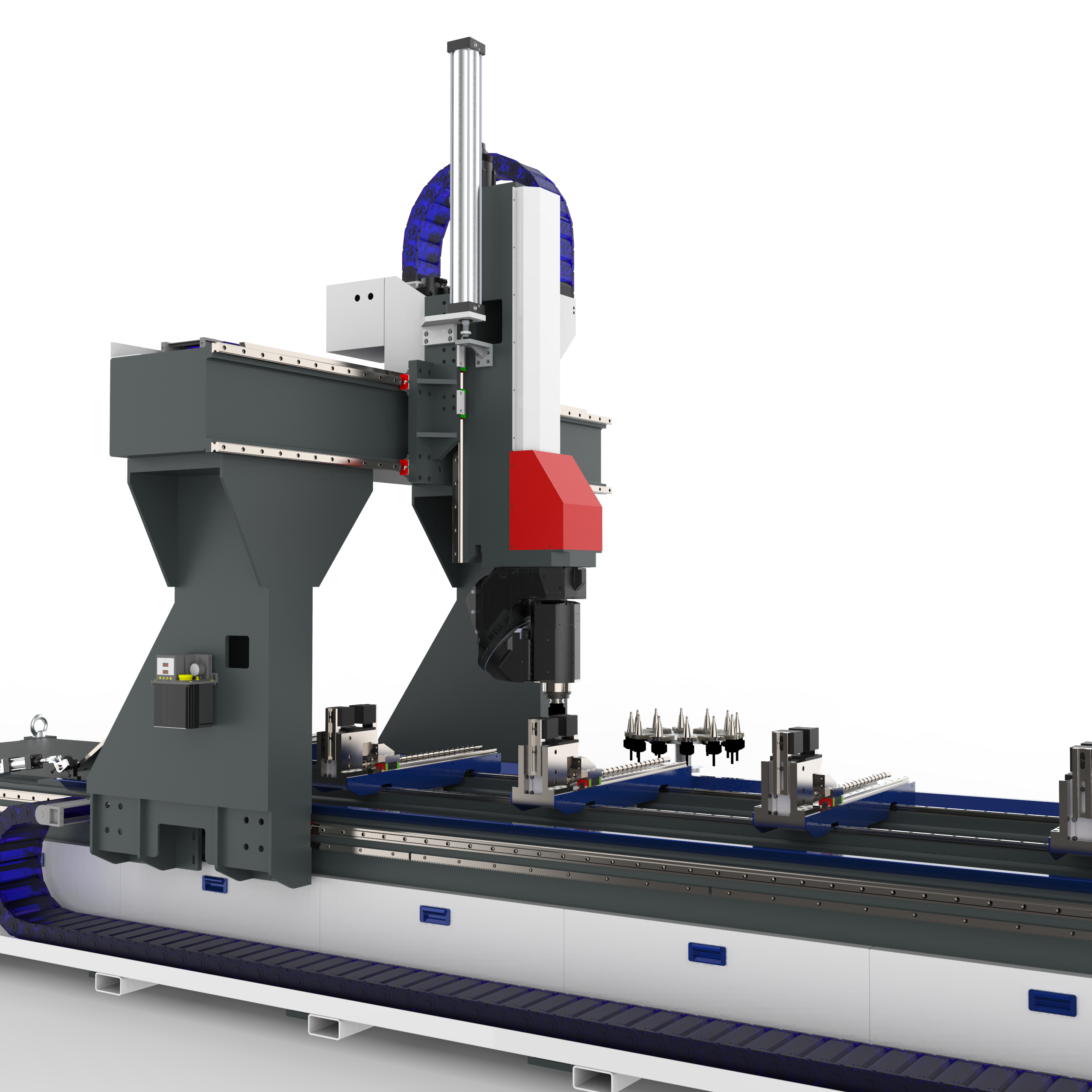

5 Axis Alu. Profile CNC Machining Center
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
Machine introduction:
5 axis aluminum machining center adopts CNC double-swing head with five-axis and five-linkage function, which can complete the processing of 5-sided milling, boring, drilling and sawing. It is suitable for all kinds of vehicles. , rail transit, and three-dimensional space five-axis linkage processing of various industrial aluminum materials, which can complete the process content of holes, grooves and contour shapes on various aluminum profiles.
Specification | |||
Working size X-Y-Z | 10200*600*300mm | Footprint size | 11700*2750*2400mm |
Weight | 8000 kg | Total power | 25KW |
Maximum speed | 80m/min | Positioning accuracy | 0.03/1000mm |
Voltage | 380V/50Hz | ATC | HSK-63F-24000RPM |
Specification 2. | |||
Spindle | 5A-head HITECO 12KW,24000rpm | ||
Guide rail | Japan Pantoscopic 35/30/30 rails | ||
Ball screw | Taiwan TBI-3205 ball screw | ||
Rack | Germany WMH-2M-1000,Taiwan TBI 3205mm ball screw | ||
Controller | Italy OSAI OPEN Smart 5A control system | ||
Motor | YASKAWA servo motor 1.8*2kw+1.3kw*2,Z axis with brake | ||
Inverter | Taiwan Delta 18.5 KW inverter | ||

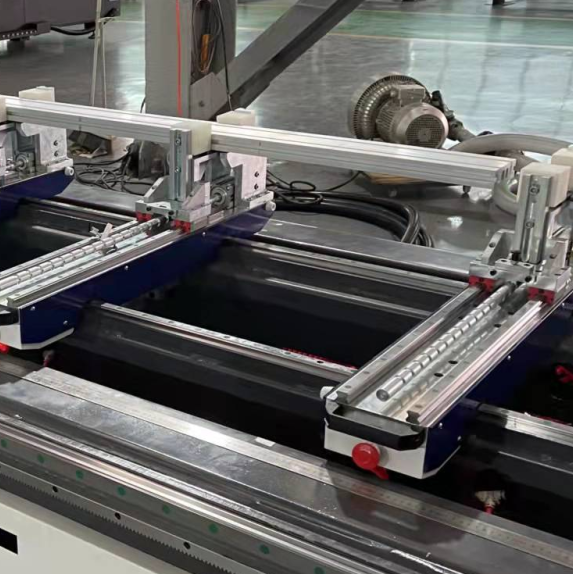

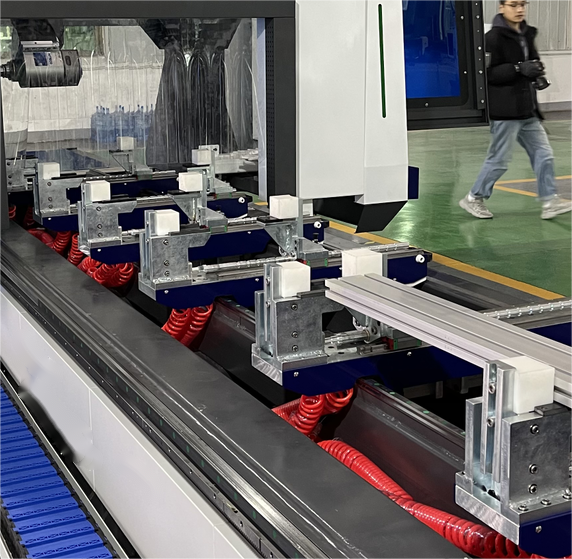

Working table | 12 sets pneumatic fixed clamps with pneumatic positioning and pneumatic brake | ||
Lubrication | Auto oil lubrication | ||
Control cabinet | Rittal control cabinet with Industrial air conditioner | ||
Switch | Japan Omron proximity switch | ||
Cable | ShangHai Ain | ||
Electrical parts | French Schneider | ||
Reducer | Taiwan LIMING reducer*3 | ||
Software | Alphacam-3d software | ||
Other | CHILLER-CW5200 water cooler | ||

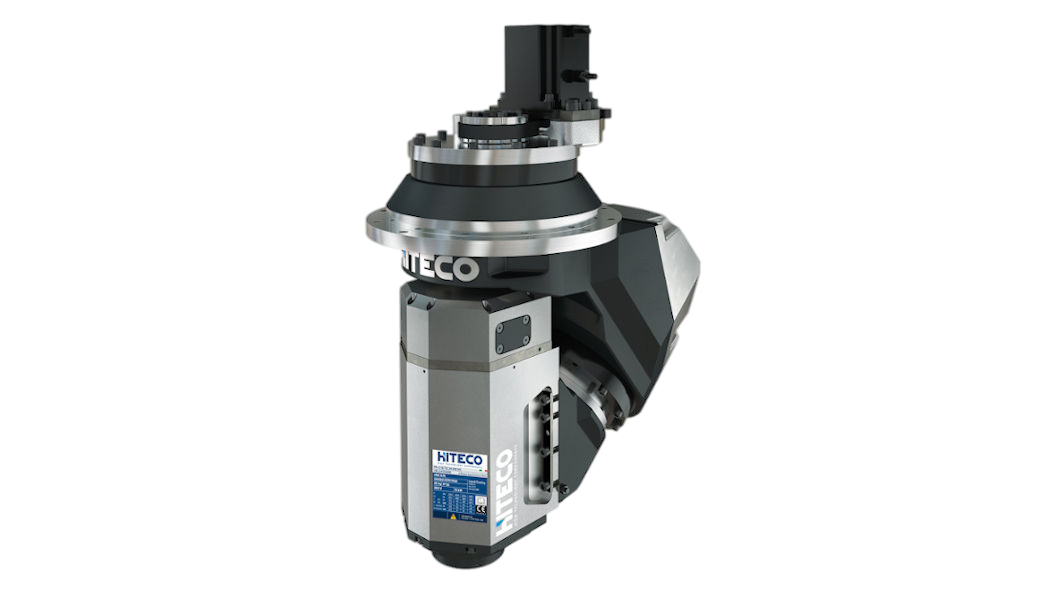

Italy Hiteco 5A-head

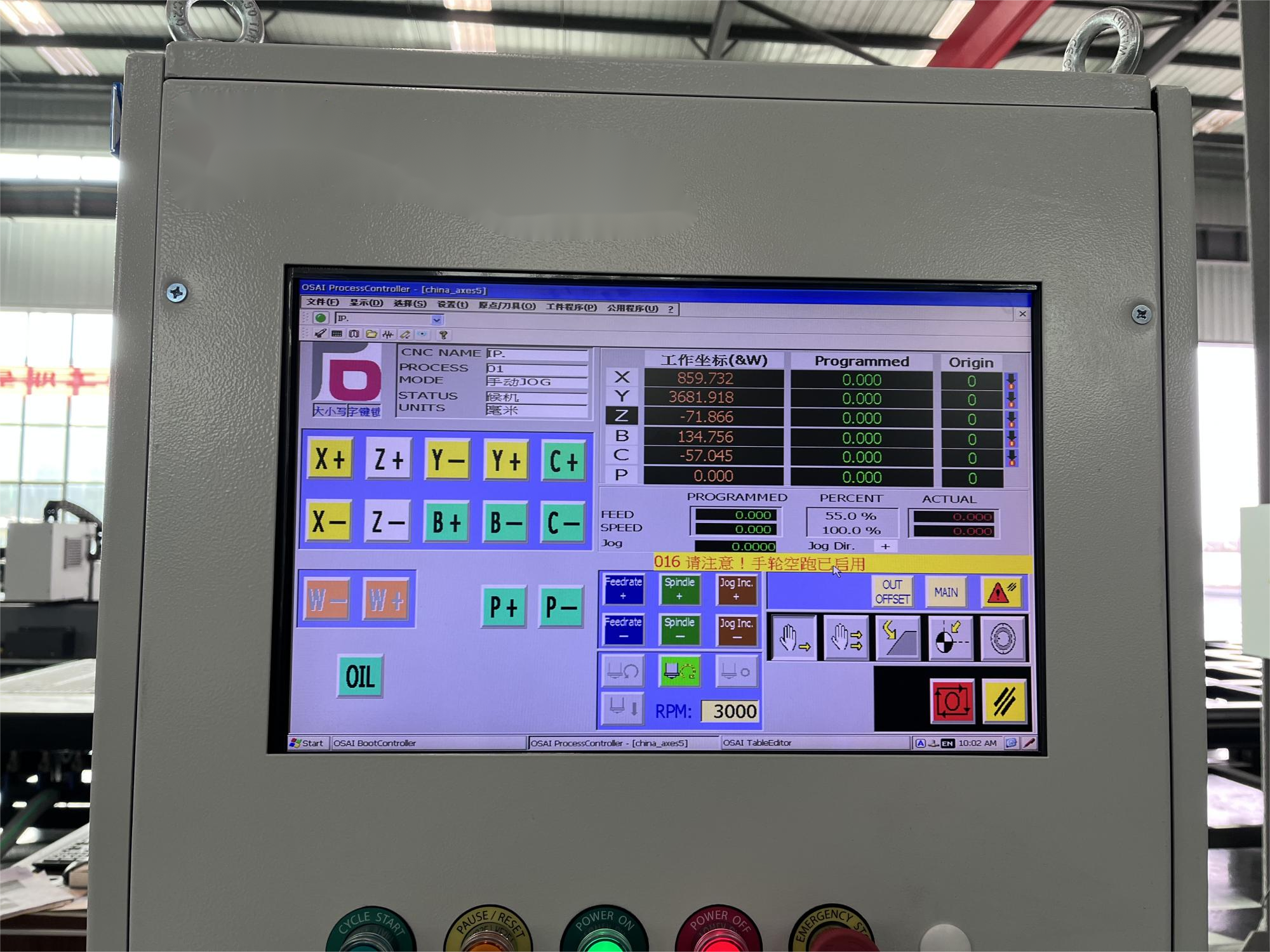

| Italy OSAI OPEN Smart 5A

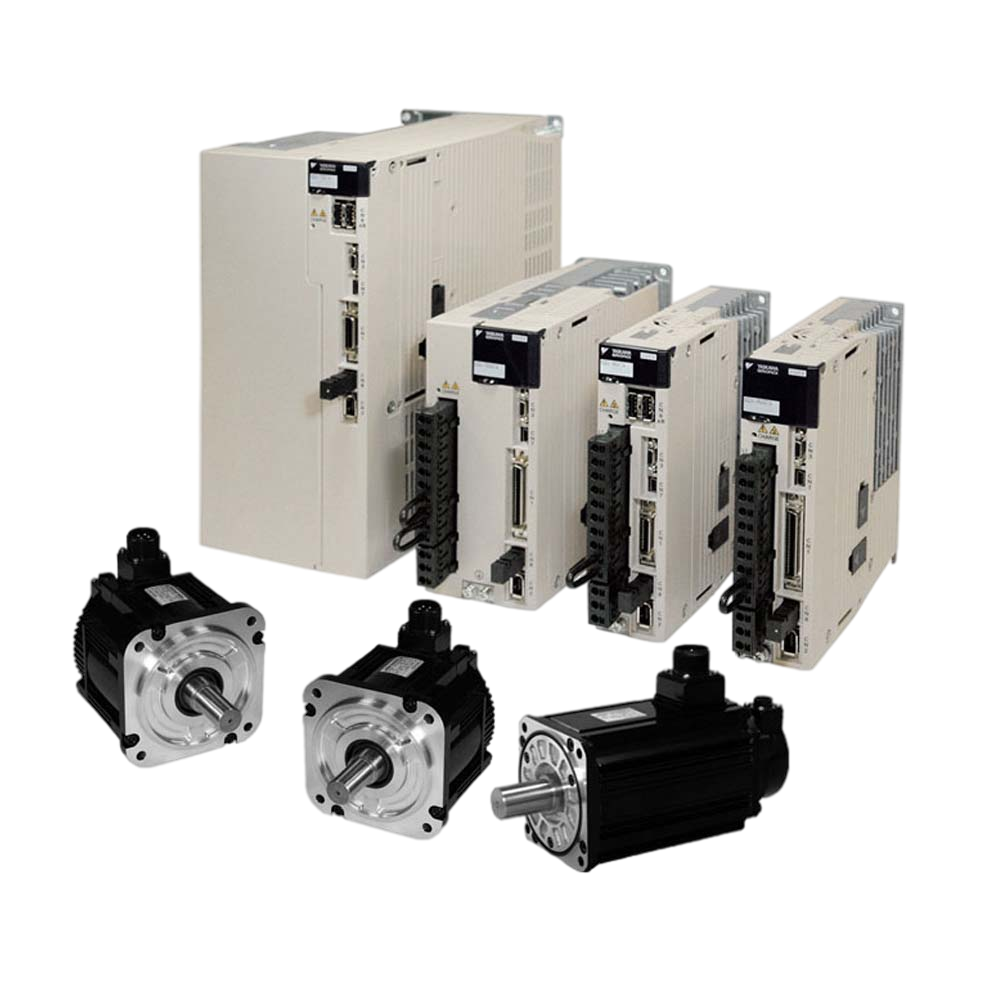

| YASKAWA servo motor
|

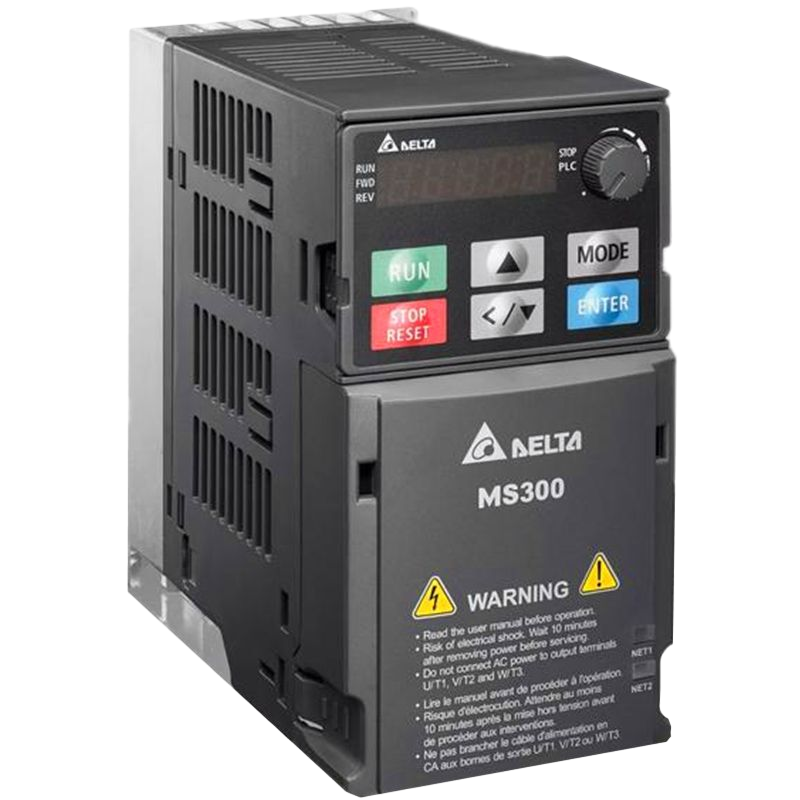

Taiwan Delta inverter
|
|
|
Saw blade changer handle |

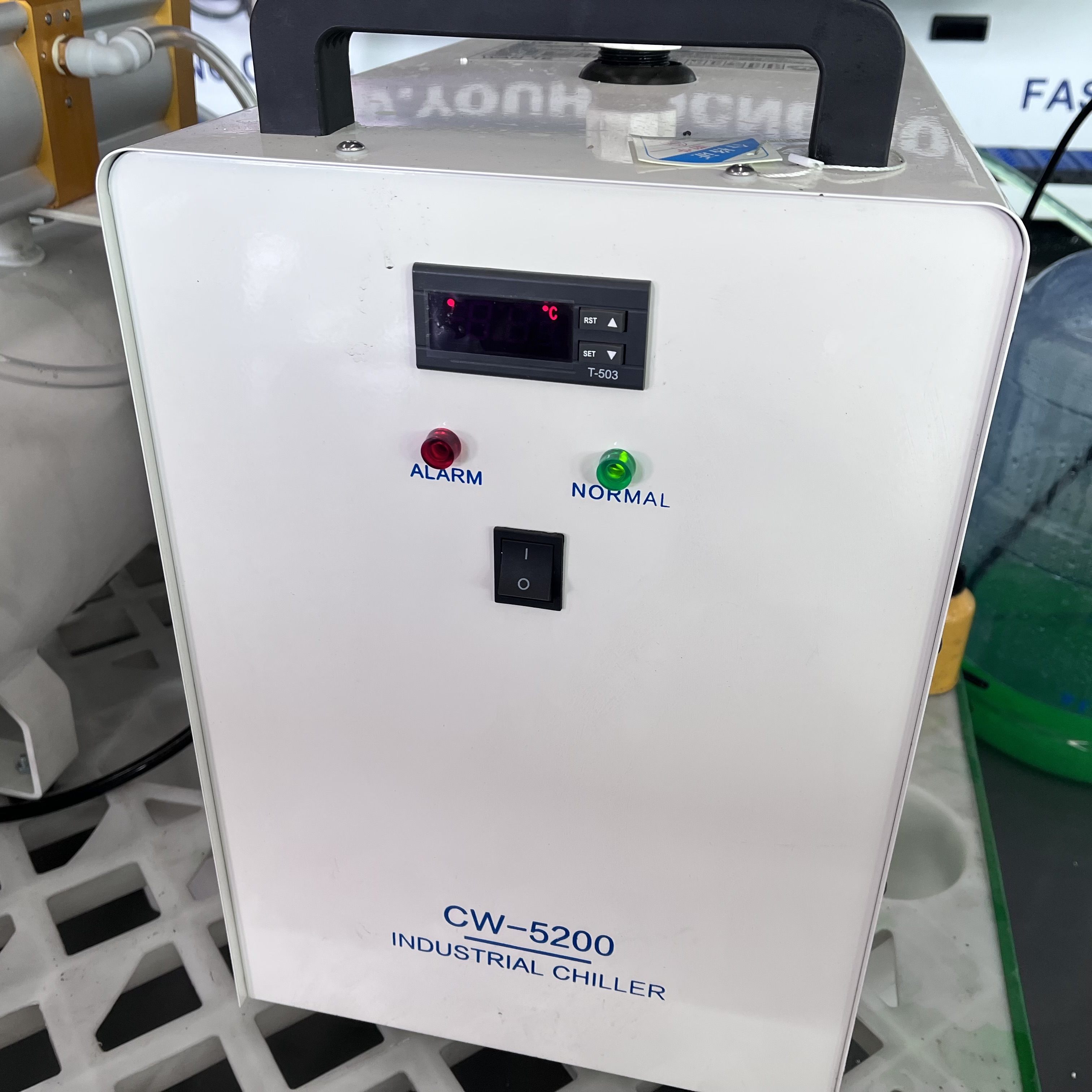

Photoelectric protection LNTECH | CW5200 water cooler
|
