Glass Drilling Machine
Category:
Summary:
Tel:
E-mail:
DESCRIPTION

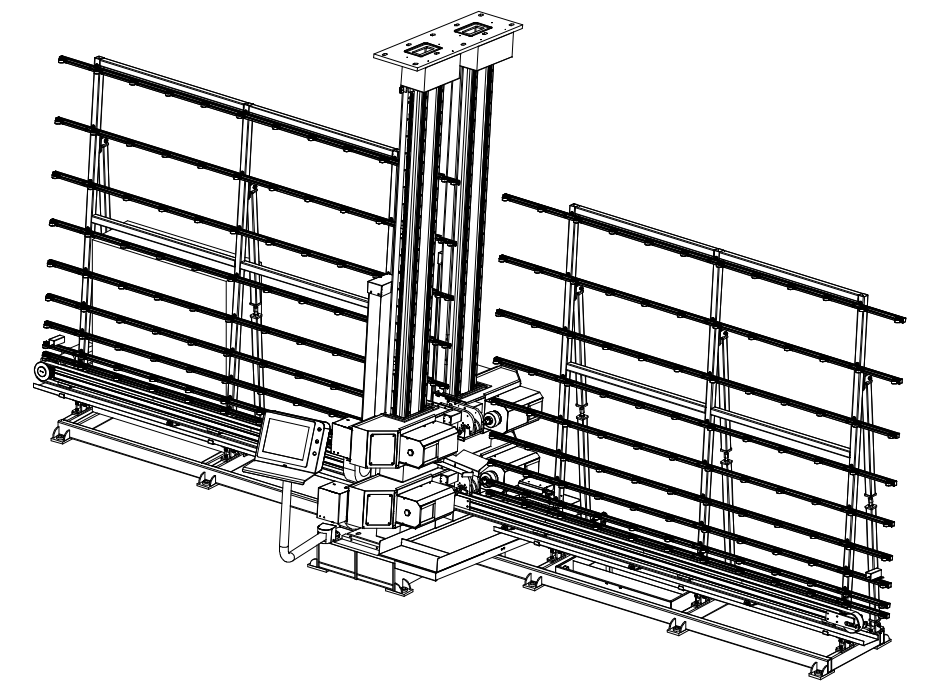

1、Layout
- Combinat
|
2.1 |
Drilling machine unit |
1 Set |
|
2.2 |
Programming control system |
1 Set |
3. Technical parameter
3.1 echnical parameter
|
Effective moving range |
axis |
|
[mm] |
|
|
axis（Distance between holes and edges） |
40-2100 |
[mm]
|
||
|
axis |
440-2500 |
[mm]
|
||
|
Minimum drilling hole center distance between Y1 and Y2
|
400 |
[mm] |
||
|
The movement precision (The error range of diagonal is ±0.5mm,the glass edge straightness is ±0.05mm) |
axis |
±0.25mm/m |
[mm] |
|
|
axis |
±0.25mm/m |
[mm] |
||
|
Drilling diameter (Without countersink) |
|
φ6–φ50 |
[mm] |
|
|
The processing efficiency for T6 glass |
φ 10 mm （data provided by seller） |
≤ 8 |
[ s ] |
|
|
φ 20 mm （data provided by seller) |
≤ 15 |
[ s ] |
||
|
Qty for setting coordinates |
X 10个/points Y 10个/points |
|||
|
Starting point coordinates |
|
|||
|
The speed of movement |
X 轴/axis |
0 -- 300 |
mm / S |
|
|
Y1Y2轴/axis |
0 -- 100 |
mm / S |
||
|
The speed of the screw propulsion |
Z 1 -Z2轴/axis |
0 -- 3 |
mm / S |
|
|
Z 3-Z4轴/axis |
0 -- 3 |
mm / S |
||
|
Convey speed |
5-30m (Adjustable ) |
|||
|
Overall size |
L×W×H 7300X1800X3800 [mm] |
|||
|
The height of the table |
600+/- 20 [mm] |
|||
|
Glass thickness |
4-19 mm |
|||
|
The max glass size: L * W |
4100 X 2500 |
|||
|
The min glass size: L * W |
800X300 |
|||
|
Installation condition |
Power supply |
Voltage |
(with Yellow-green wire) |
|
|
Watt |
7KW |
|||
|
Air pressure |
Connector |
8mm gas pipe |
||
|
Pressure |
≥6.0 |
[bar] |
||
|
Flow |
20 |
[m3/h] |
||
|
Lubricants |
20 # |
|||
|
Water supply |
Connector |
12mm water pipe |
||
|
Pressure |
≥3.0 |
[bar] |
||
|
Environment temperature |
min. |
15 |
[°C] |
|
|
max. |
Without cooling equipment
装置 |
35 |
[°C] |
|
|
With cooling equipment |
45 |
[°C] |
||
3.2
Drilling component configuration parameters
|
Item：Material、Component configuration |
|||
|
No |
|
|
|
|
1 |
Component |
Name |
45# A3 Plate、Tube |
|
Thickness |
6、8、10、12、14、16 mm |
||
|
2 |
The drilling motor |
Manufacturer |
|
|
Model |
0.9 KW |
||
|
3 |
X Y axis / Drilling propulsion driving motor |
Configuration part |
The X / Y axis movement drive by Servo motor/ Drilling hole propulsion drive by Stepper motor |
|
Specification |
130Series 80Series YK3913A Series |
||
|
4 |
Ball screw |
Manufacturer |
TBI |
|
5 |
Linear guide |
Manufacturer |
TBI |
|
6 |
Bearing |
Manufacturer |
HRB C&U |
|
Item: Electronic control component |
|||
|
No |
供Supplier |
|
|
|
1 |
Contactor |
Manufacturer |
Schneider |
|
Specification |
AC220V |
||
|
2 |
DC power supply |
Manufacturer |
Taiwan Meanwell |
|
Specificatio |
AC220V-DC24V |
||
|
3 |
PLC |
Manufacturer |
KEYENCE |
|
4 |
Cable |
Manufacturer |
Dadu |
|
5 |
Drag chain cable Limit switch |
Manufacturer |
Hebei Cangzhou |
|
Manufacturer |
Taiwan Tend |
||
|
6 |
Controller |
Manufacturer |
Industrial computer |
|
7 |
Sensor |
Manufacturer |
OMRON、SONON |
4: Documents/Language
|
Circuit diagram |
Chinese/English |
Paper Document |
5: Machine colors
|
Main frame |
RAL7035 |
|
External plate |
304 stainless steel |
|
Equipment decoration board |
Red |
|
Electric control cabinet |
RAL7035 |
6: Accessories
|
Tool box |
|
1 |
|
Internal hexagonal wrench |
1-10mm |
1 |
|
Monkey wrench |
250mm |
1 |
|
Open spanner |
22-24 |
1 |
|
Open spanner |
27-30 |
1 |
|
Slotted screw driver |
(大Big） |
1
|
|
Cross screw driver |
（大Big） |
1 |
|
G1/2 Drilling chuck |
35mm |
4 |
|
Drilling bit |
Φ10mm |
4（Without countersink） |
This glass drilling machine is specifically designed to create precise holes in glass with high efficiency and accuracy. It features a sturdy construction, which is essential to ensure stability during the drilling process. The body of the machine is often made of high - quality metal materials that can withstand the vibrations and forces generated while drilling.
The drilling mechanism of the glass drilling machine is highly specialized. It typically consists of a high - speed drill bit. These drill bits are made of hard - wearing materials such as diamond - coated tips. Diamond is used because of its extreme hardness, allowing it to easily cut through the tough glass surface without causing excessive cracking or chipping.
One of the key advantages of a glass drilling machine is its ability to drill holes of various sizes. The diameter of the holes can be adjusted according to the specific requirements of the glass product. Whether it is for creating small holes for decorative purposes or larger holes for fitting components, this machine can handle the task with ease.
The operation of the glass drilling machine is also user - friendly. It is equipped with controls that allow operators to set the drilling speed and depth accurately. This precision is crucial, especially when dealing with different thicknesses of glass. A proper drilling speed ensures a clean cut, while the correct depth control prevents over - drilling, which could damage the glass.
