V-Cutting Saw for PVC Profile SVJ-60
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
Equipment Features

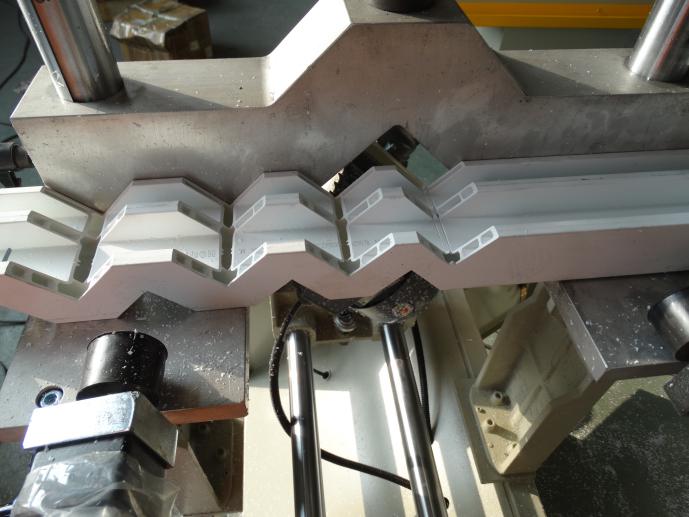

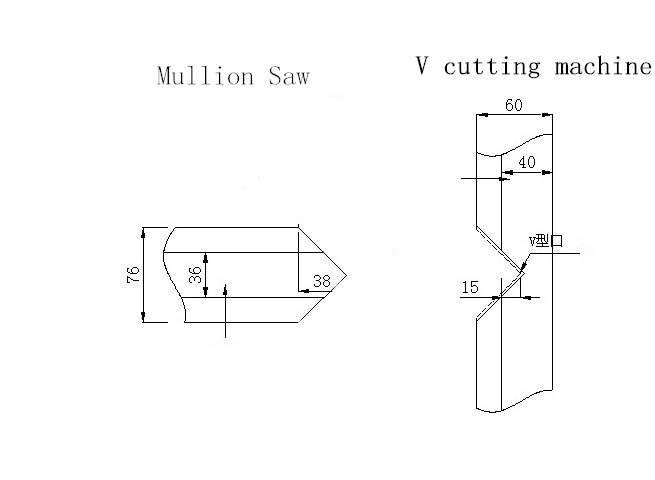

For 90 °V-shaped groove cutting .
Pneumatic driving ,easy operation .
Smoothly feeding and high cutting precision
Technical Parameter
Input power | 2x0.75kw |
Power supply | 380V50/Hz |
Working pressure | 0.4-0.6MPa |
Motor rotary speed | 0.4~0.6MPa |
Air consumption | 80L/min |
Cutting width | 120mm |
Cutting length | 300~1600mm |
Depth cutting | 20-60mm |
Overall dimension | 1900x700x1350 |
Weight | 160 kg |
|
|
|
Key words:
Product Message
Glasino aim: Design and produce new and practical machines, following the development of the glass and window industry.
