Aluminum and PVC Double Head CNC Cutting Saw LJZ2S-500x4200
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
1. Feature
1.1 Imported carbides blade is of accurate processing and high endurance
1.2 Saw blade rotates smoothly due to high accurate main spindle
1.3 Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder
1.4 The feeding system adopts the imported linear guide pair,with high accuracy and stability
1.5 Two saw heads are adjustable and cut the profiles in 45°90°freely.
1.6 Auto-opening shield makes the operation safety.
1.7 Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving,locating and smooth working.
1.8 This machine uses the numerical control technology,profiles pf different of different specifications can be completed automatically under the expected size.
2.Technical Parameter
Power Supply | 380V50HZ |
Motor Power | 5.9kw |
Cutting motor rotary speed | 2800r/min |
Air pressure | 0.5-0.8MPA |
Air consumption | 200L/min |
Saw Blade | D=500mm d=30mm |
Cutting Width | max 135mm |
Cutting Length | Max. 4200mm, min 400mm |
Cutting Height | max 200mm |
Cutting angle | 45° 90° |
Dimonsion | 5700 x 1650 x 1520mm |
Weight | About 1500kg |

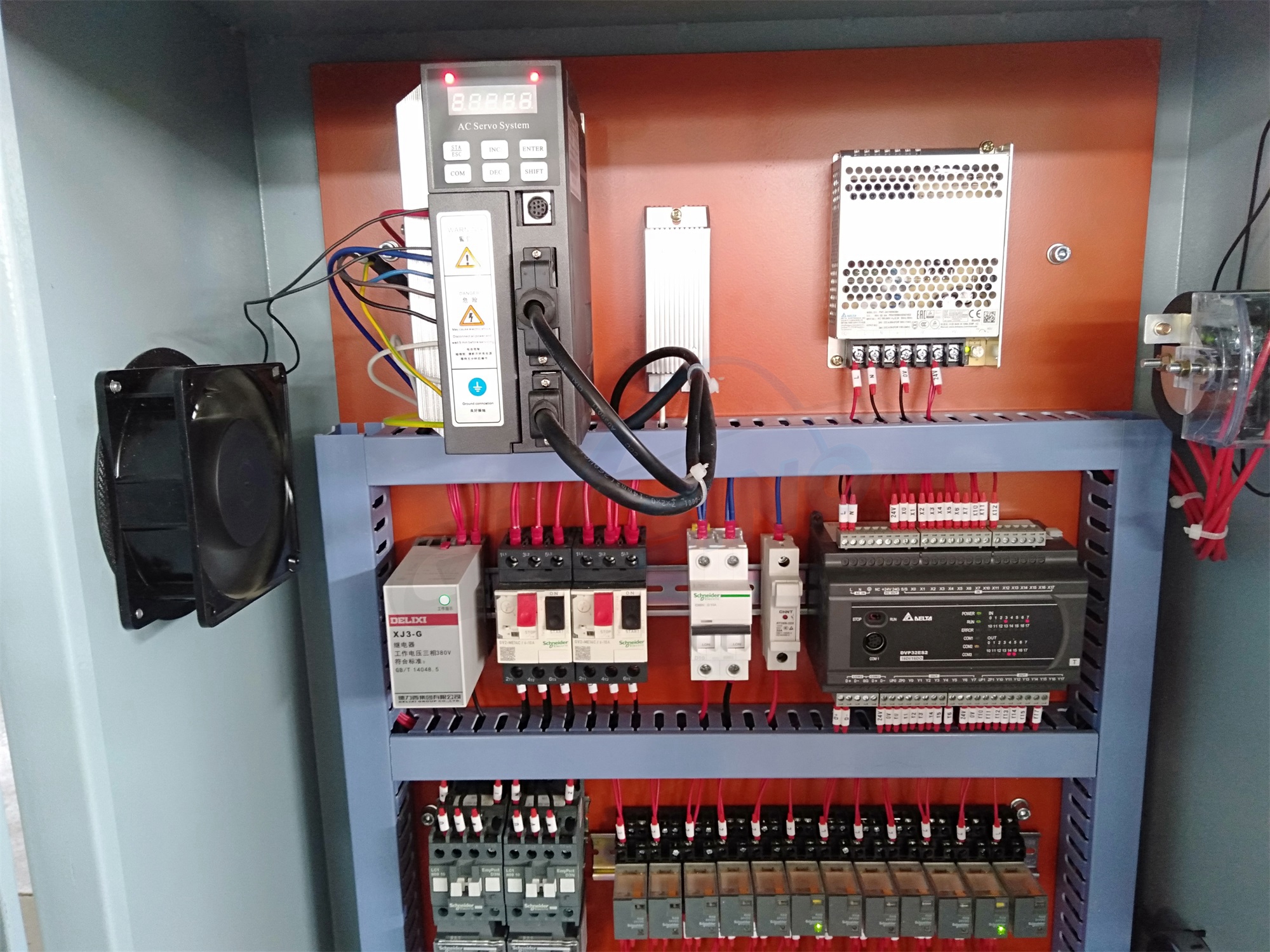

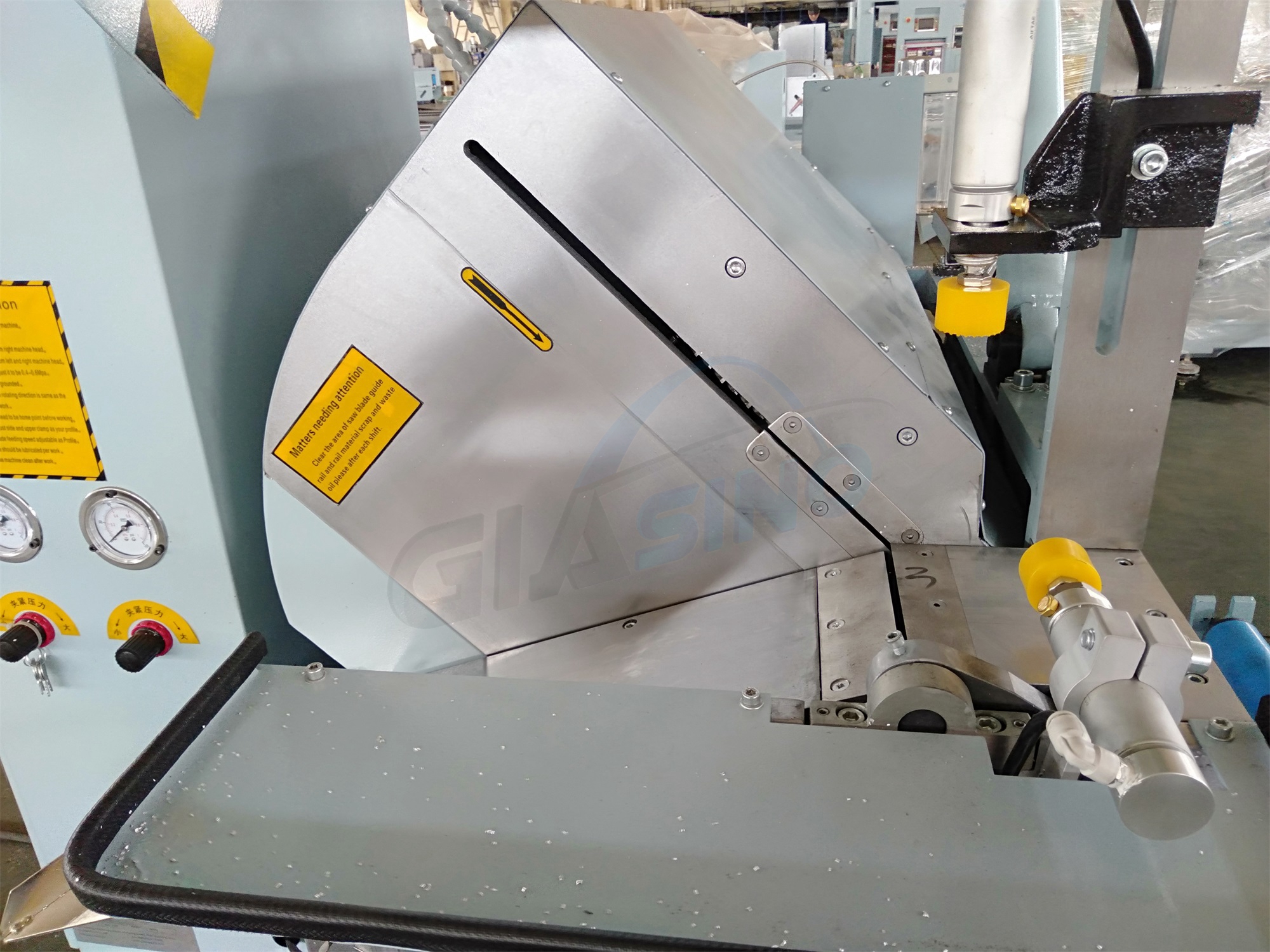

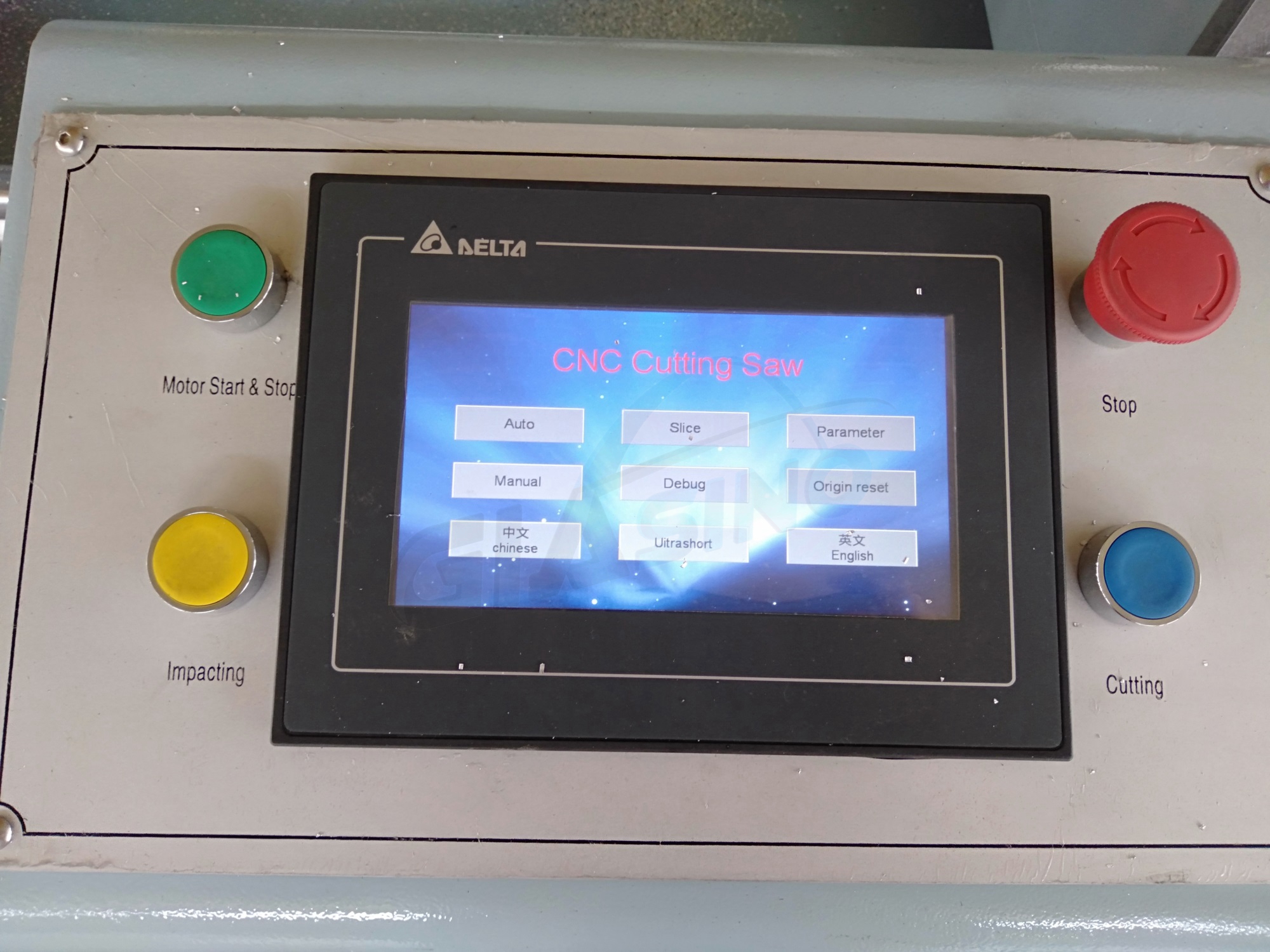

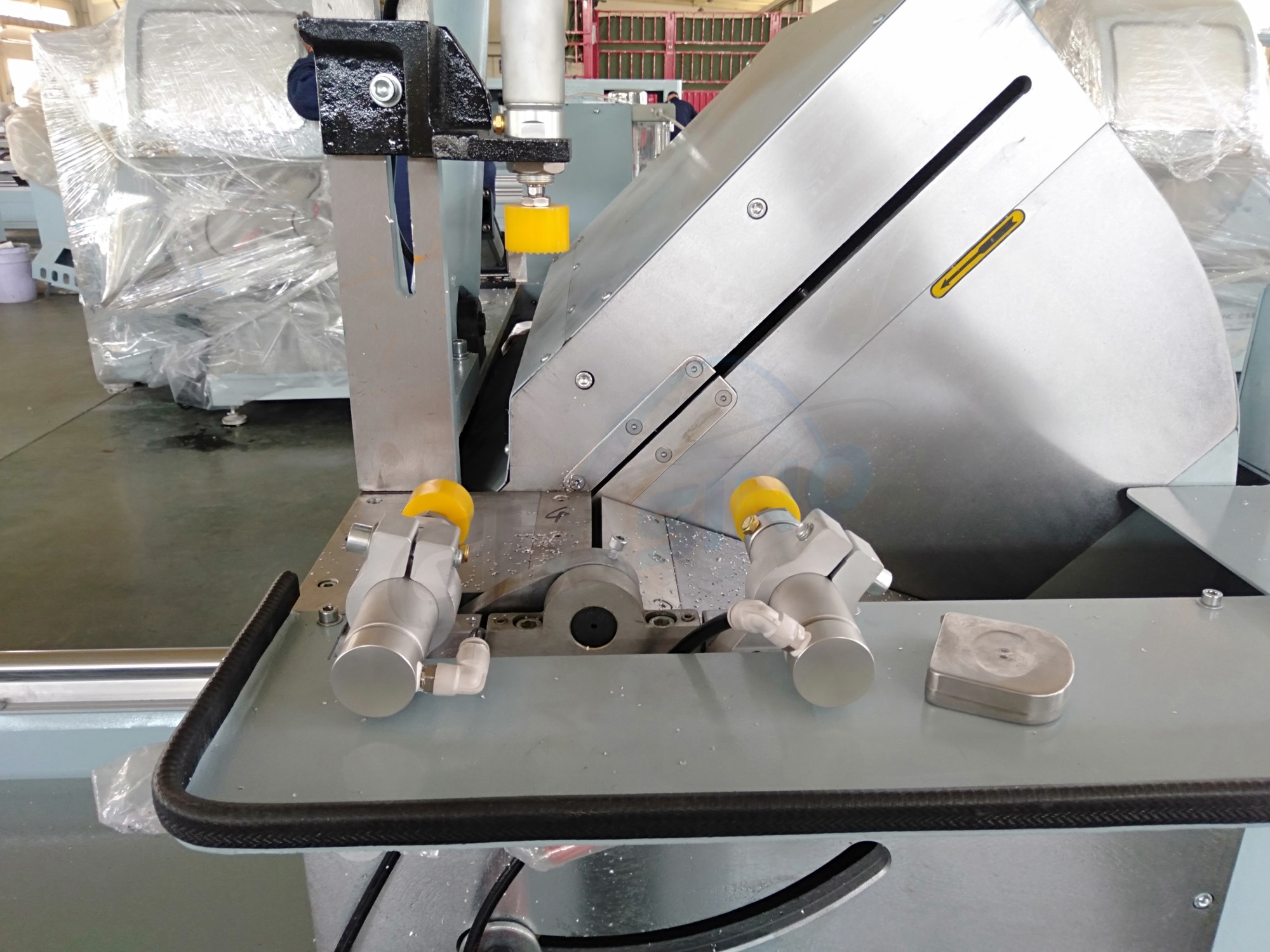

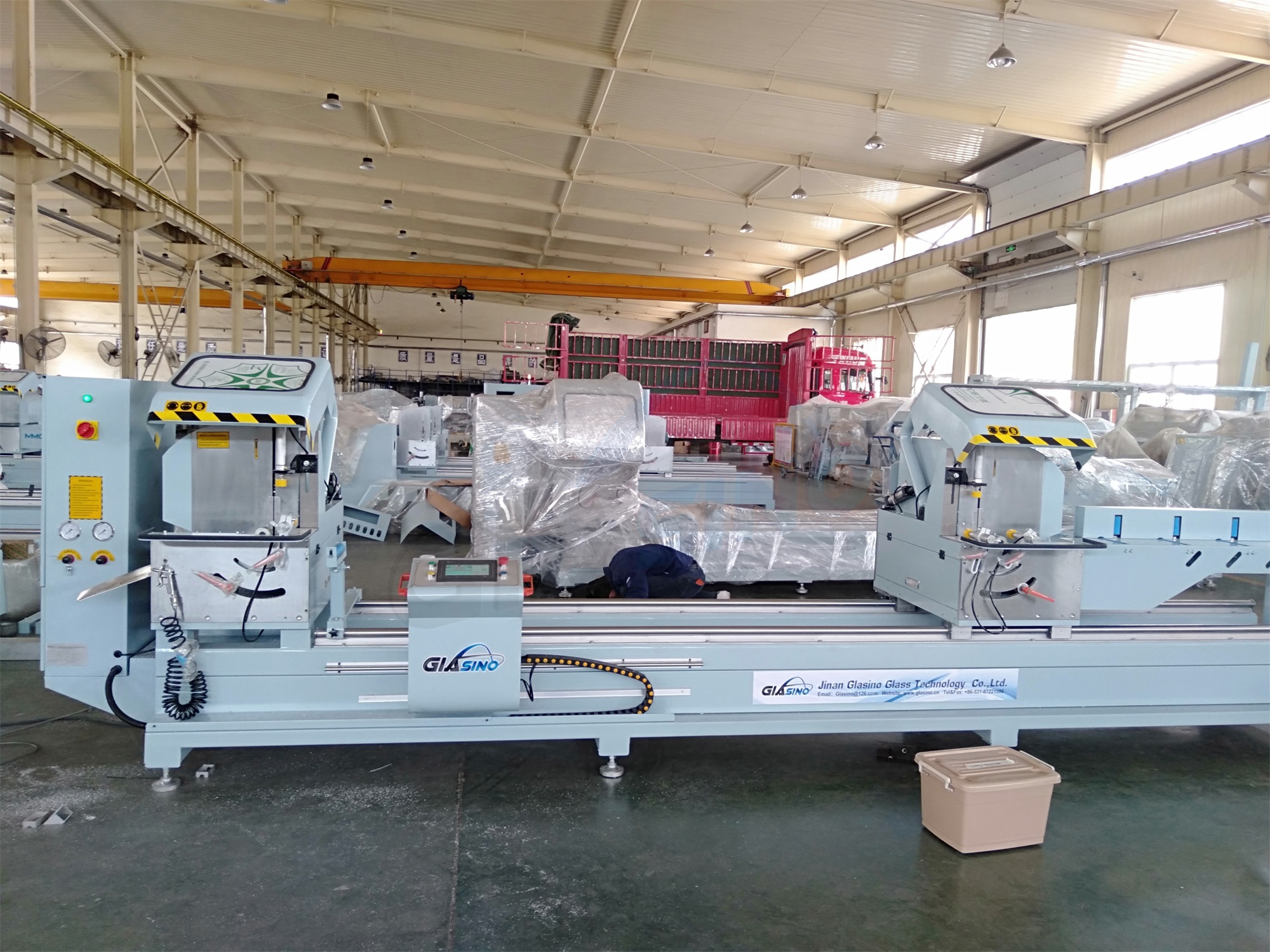

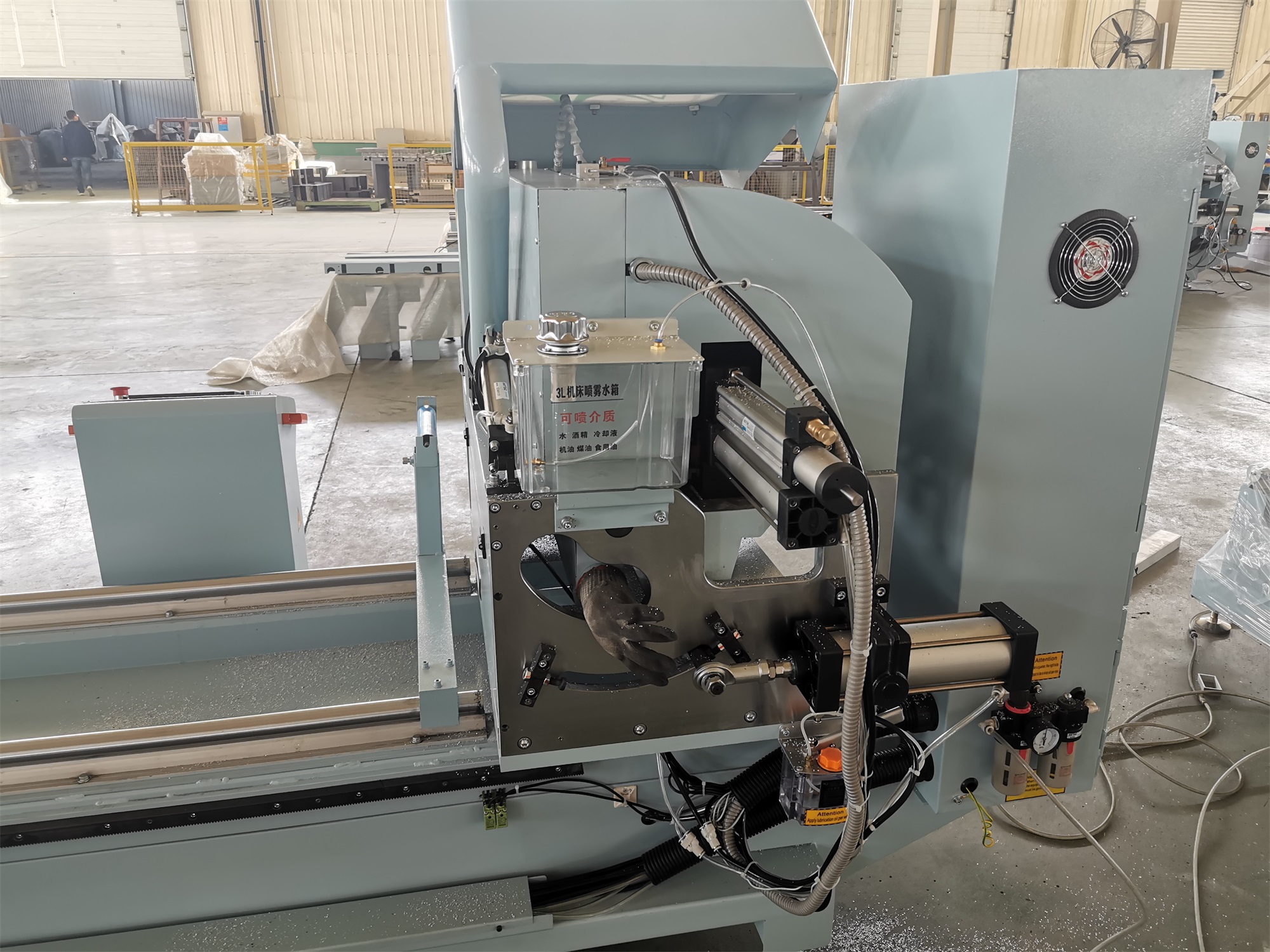

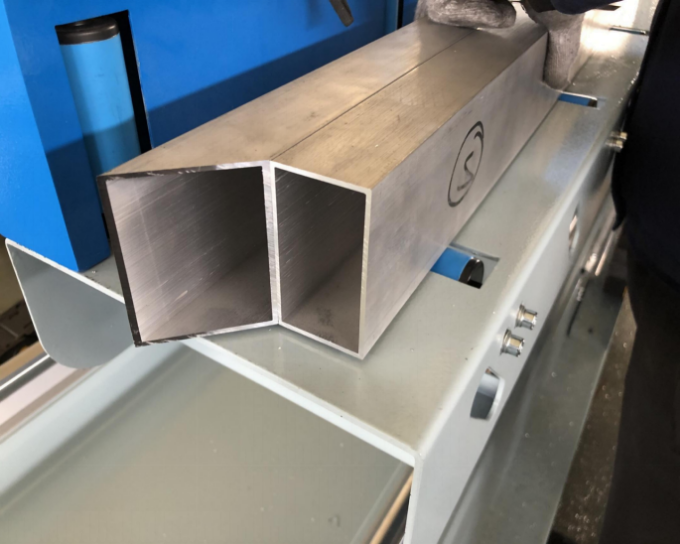

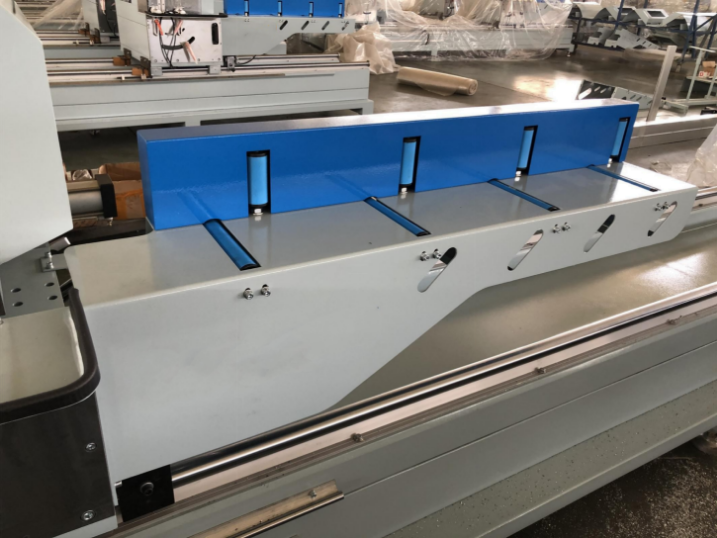

More pictures of Machine: | |
| |
|
|
|
|
|
|
|
|

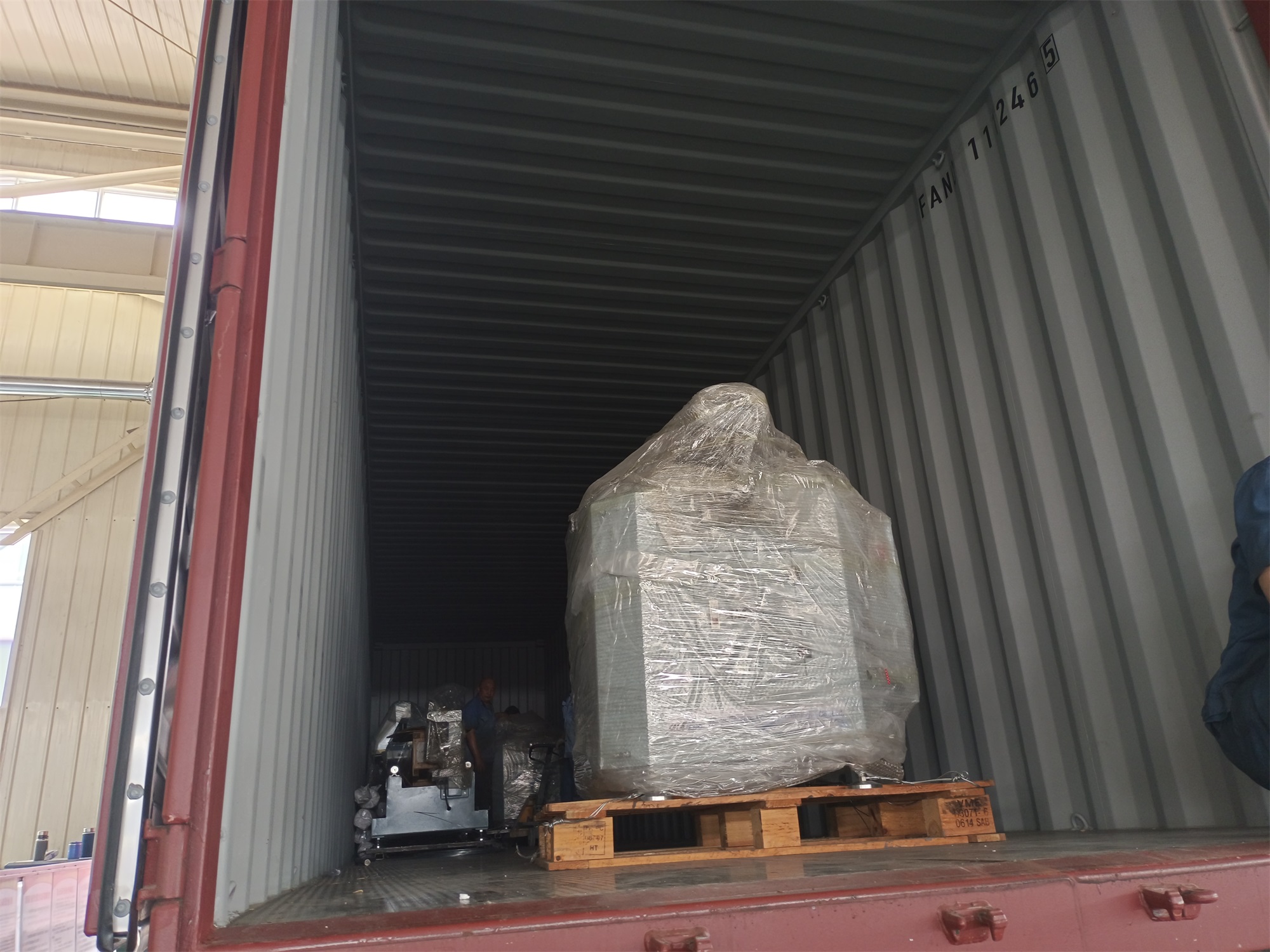

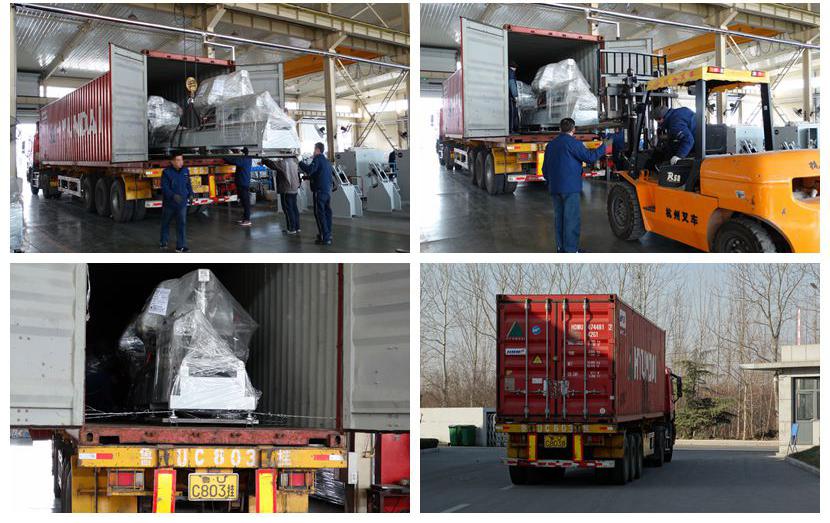

Packaging and Delivery | |
|
|
| |
