Digital Display Aluminum and PVC Double Head Cutting Saw
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
1. Feature
1.1 The machine is used for cutting of aluminum profile or uPVC profile.
1.2 Imported carbides blade is of accurate processing and high endurance
1.3 The two heads can work alone, can also work at the same time
1.4 To cut out a section of desired length and two end angles
1.5 Right head adopts motor drive
1.6 Two saw head can be manually switching angle, realize the - 45 degrees, 90 degrees, 45 degrees angle cutting profile
2.Technical Parameter
Power Supply | 380V50HZ |
Motor Power | 2x2.2kw |
Cutting motor rotary speed | 2800r/min |
Air pressure | 0.5-0.8MPA |
Air consumption | 200L/min |
Saw Blade | D=500mm d=30mm |
Cutting Width | max 150mm |
Cutting Length | Max. 4200mm, min 380mm |
Cutting Height | 45°180mm, 90°240mm |
Cutting angle | 45° 90° |
Dimonsion | 5800 x 1500 x 1700mm |
Weight | About 1500kg |

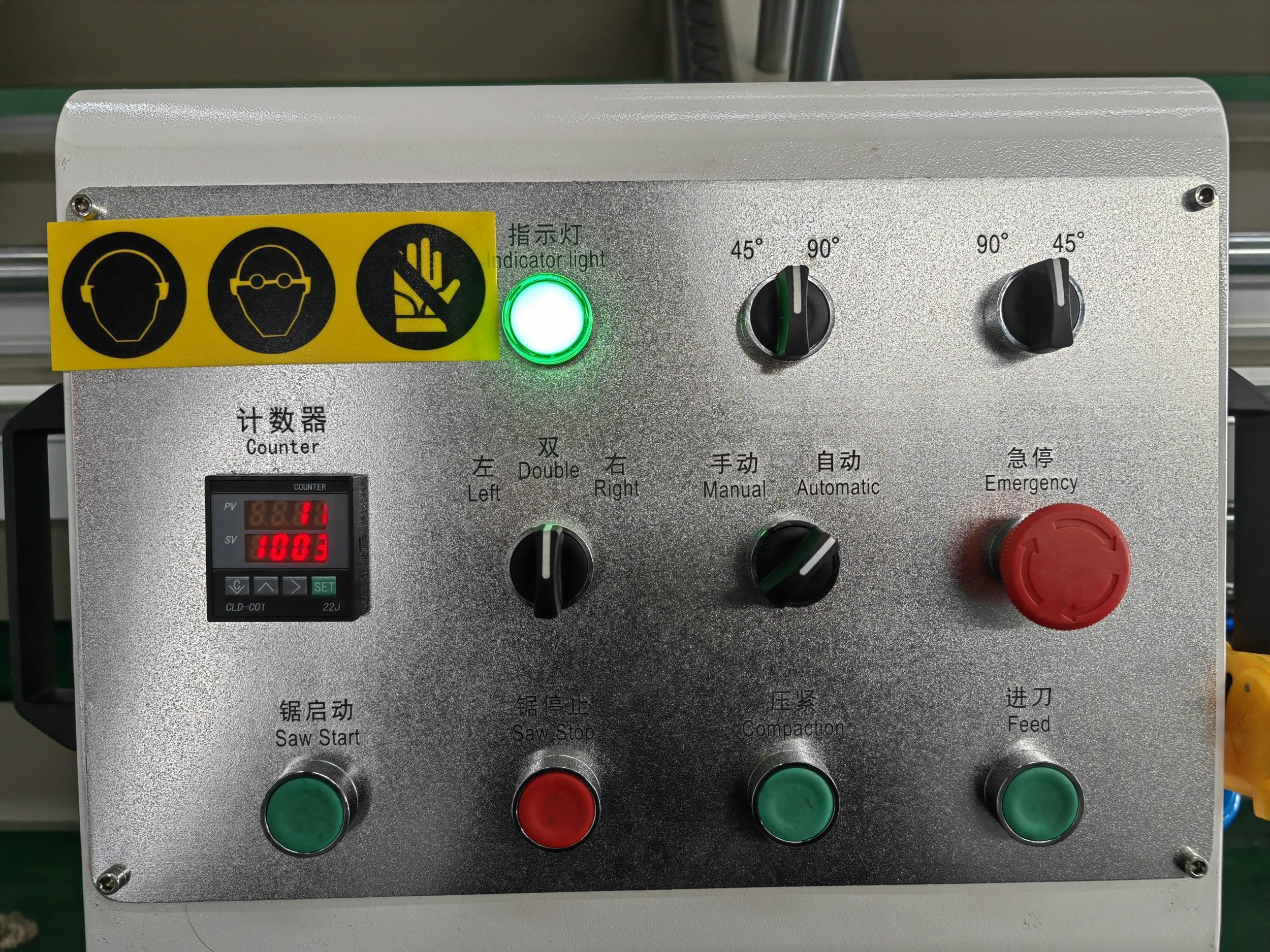

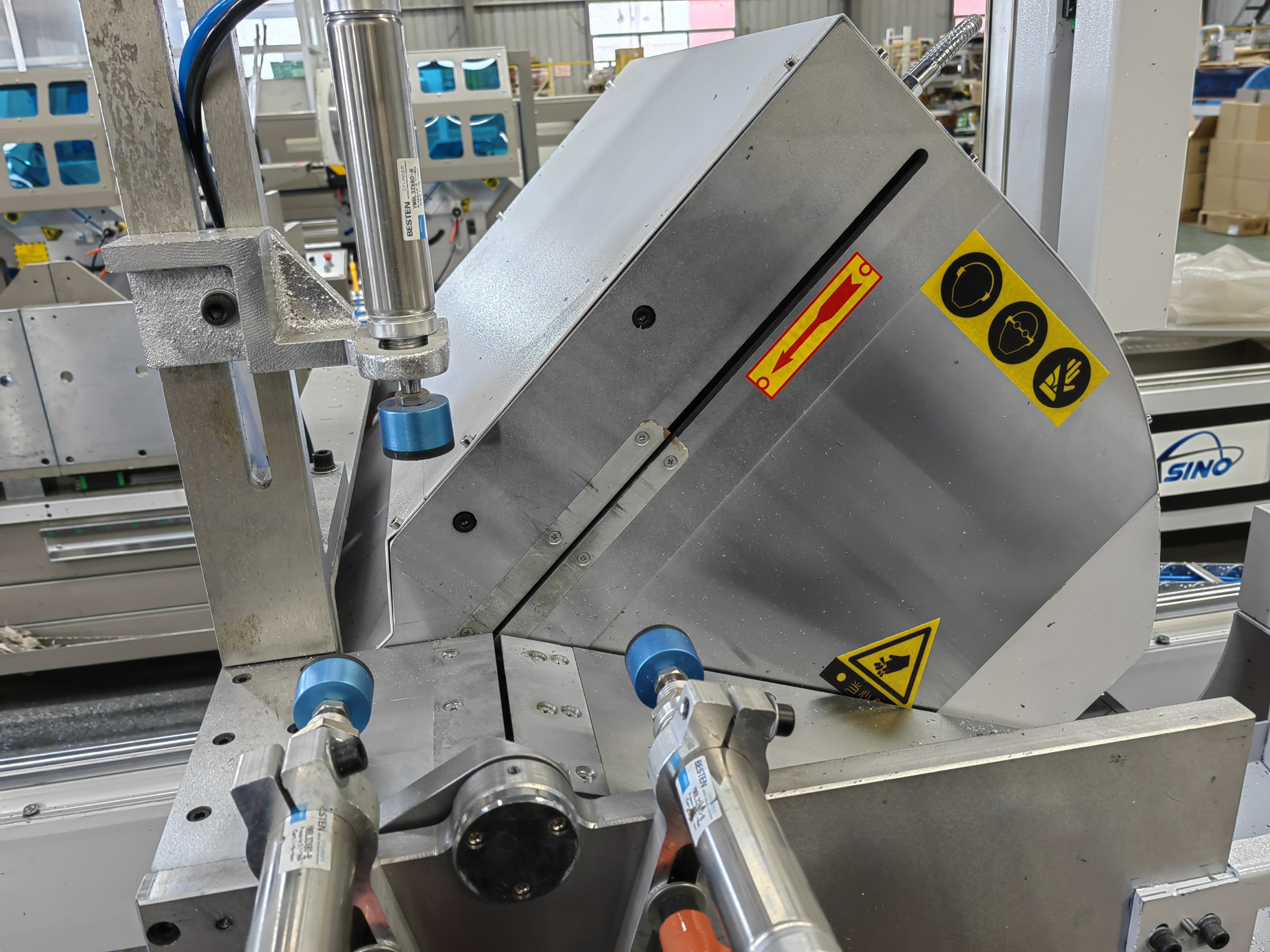

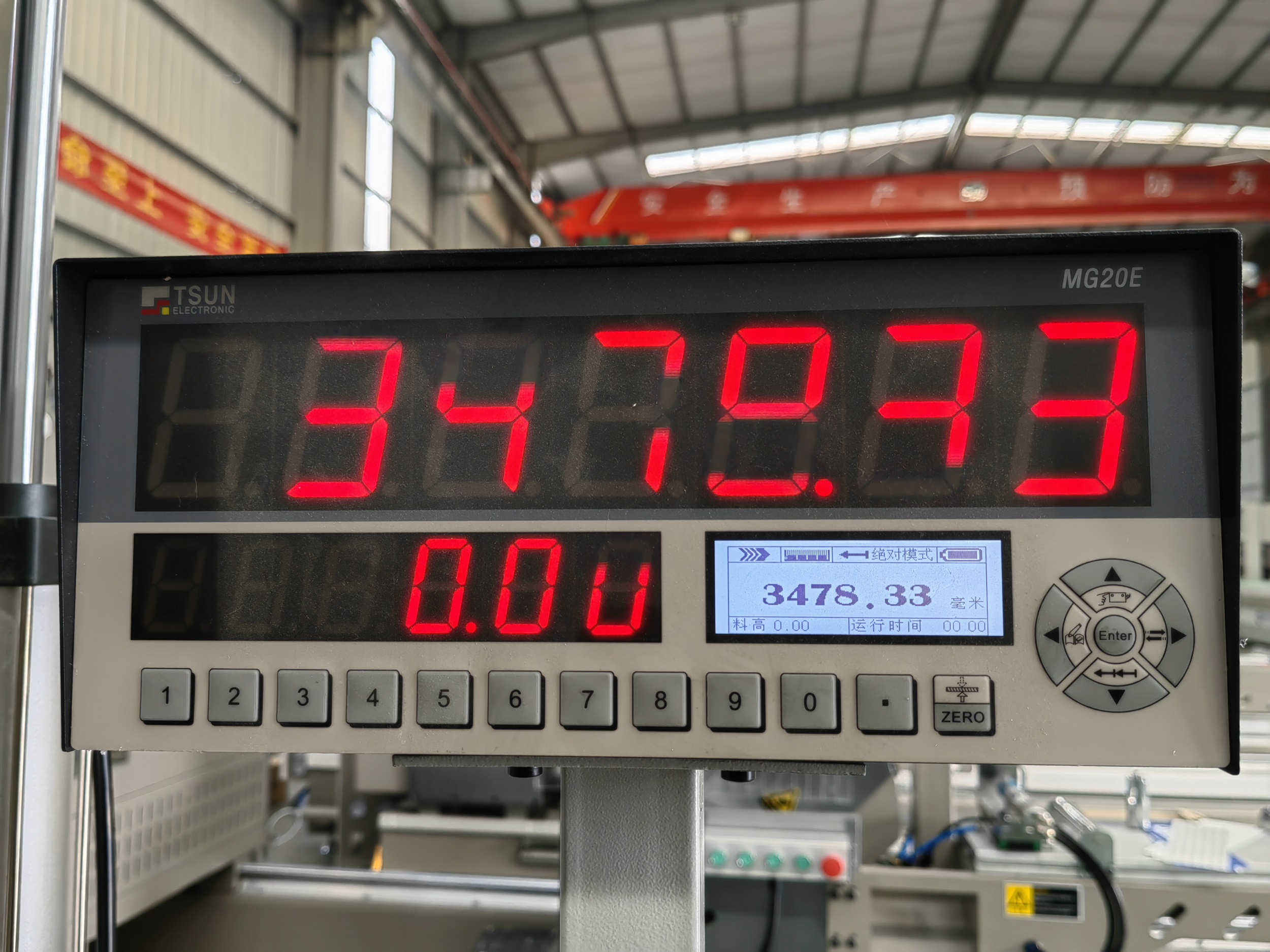

More pictures of Machine: | |
|
|
|
|

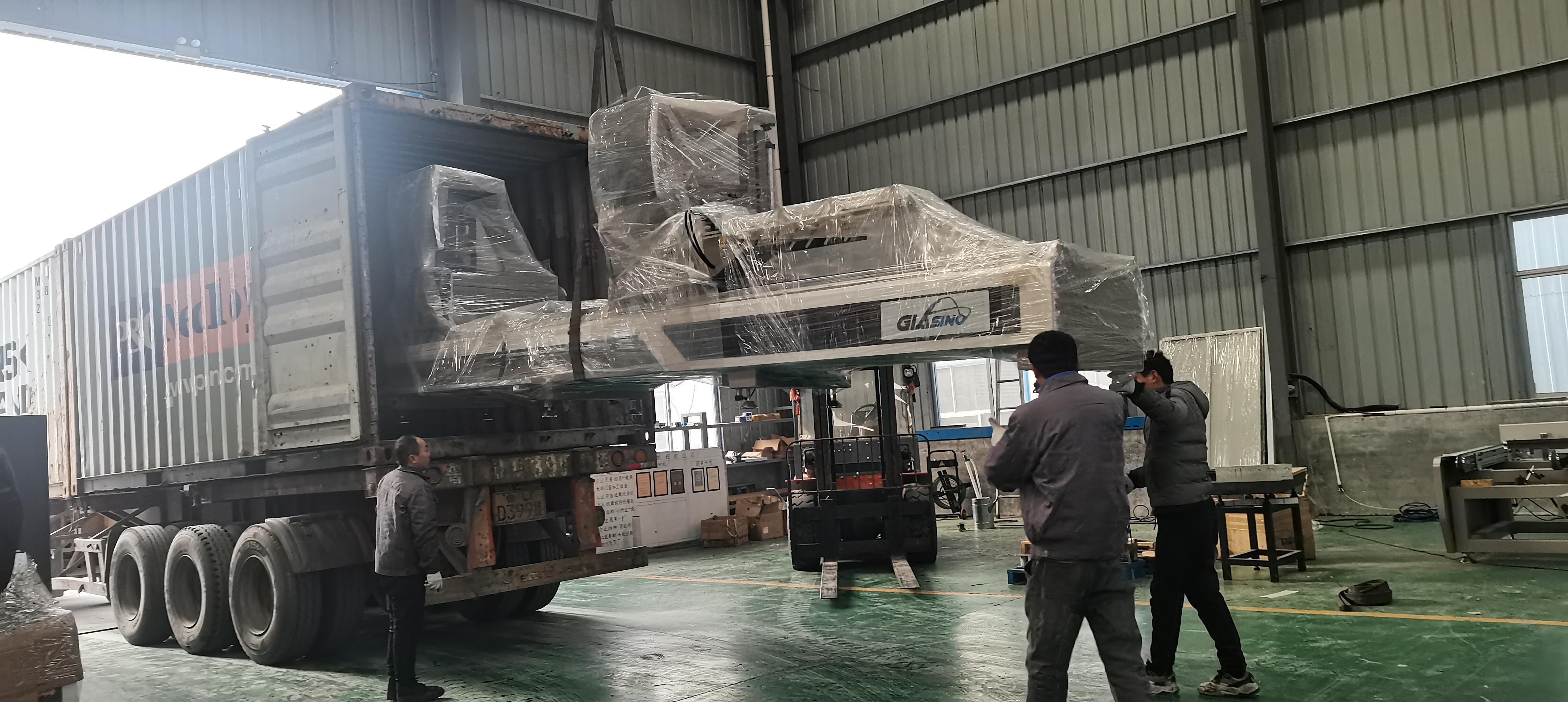

Packaging and Delivery | |
| |
Key words:
Product Message
Glasino aim: Design and produce new and practical machines, following the development of the glass and window industry.
