3000mm Aluminum Profile Cnc Milling And Drilling Machining Center
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
Machine introduction:
- Applicable for drilling holes, milling groove, tapping, circular hole,irregular-shaped and keyhole and plane engraving of aluminum profile.
- It Adopts Syntec CNC system,which makes sure smooth running of machine.
- Electrical spindle is Italy Hiteco brand air cooling 9KW, 24000r/min.
- Imported Taiwan Hiwin guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine .
- CAD-CAM Programming software can automatically convert G code,you can drawing any holes on computer.
- Adopt auto oil supply system, blades adopt system control spray cooling device.
- The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
- The main components adopt steel structure and they are all through aging treatment.
- Effective processing range: according to your requirements.
- Adopt 6 sets tool magazine, can change different tools automatic.
Technical parameter：
Model | LCJG3-CNC-3000 |
Working voltage | 380V 3Phase 50HZ(please confirm the power) |
Tool Magazine | 6 pieces |
Total Power | 11KW |
Max rotary speed | 8000-24000r/min |
X-axis Journey | 3000MM |
Y-axis Journey | 500MM |
Z-axis Journey | 350MM |
Air Pressure | 0.6-0.8MPA |
Air consumption | 100L/min |
Spindle Power | 9KW |
X-axis speed | 0-60M/min |
Y-axis speed | 0-60M/min |
Z-axis speed | 0-60M/min |
Weight | About 1500KG |
Machine Configuration：
Specs. | Details and brand |
Controller | Taiwan Syntec |
touch screen | 21.5inch |
Relay | Schneider |
Low-voltage electrical | Schneider |
Cylinder | Taiwan AirTac |
Solenoid valve | Taiwan AirTAC 24V |
Servo driver | Yaskawa Japan |
Driver motor | Yaskawa Japan |
Inverter | Detal Taiwan |
Spindle | 9.0KW Italy Hiteco |
Linear guide rail | Taiwan Hiwin |
Ball screw | Taiwan TBI |
Dust cover | PVC mold buckle |
Machine head | cast iron |
Rotating table | industrial aluminum |
Warranty | 18 months(System/drive/drive motor/inverter) |
Rotated angel | 0° |
Processing speed | 0-60m/min |
Machine dimensions | About 3850*1450*2100mm |
Packaging size | About 4200x1600x2200mm |
Processing range | 130*130mm |

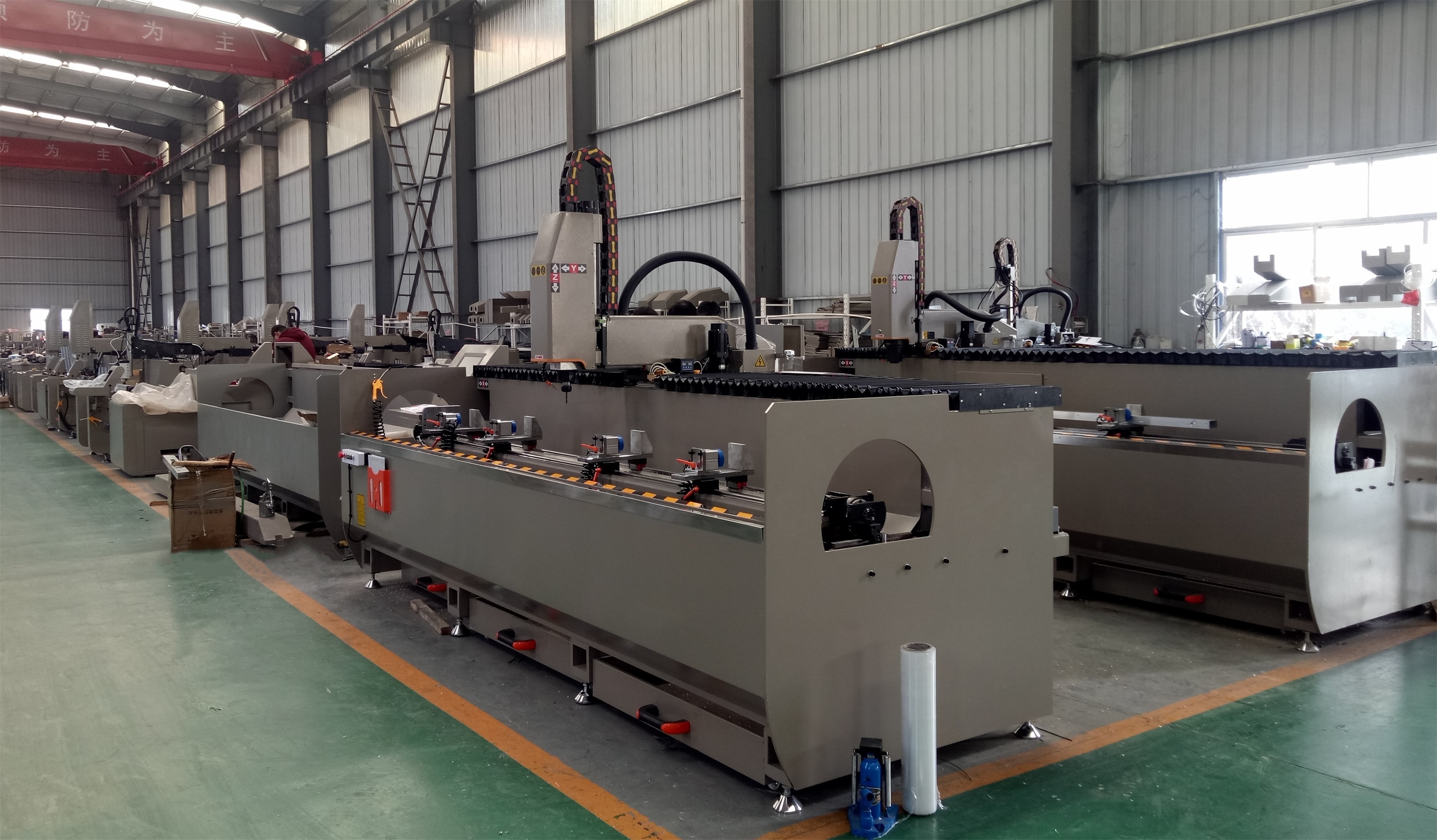

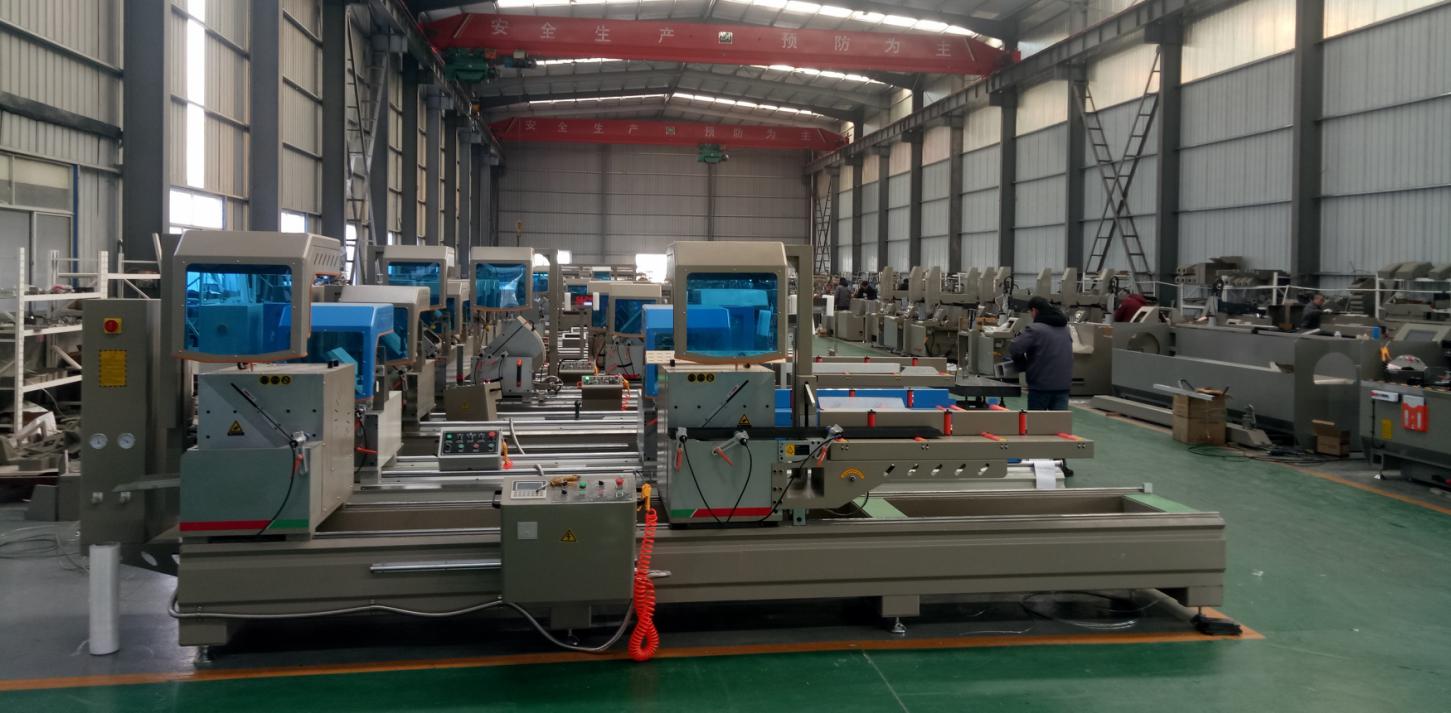

Pictures of factory Machine for reference:
| |
| |

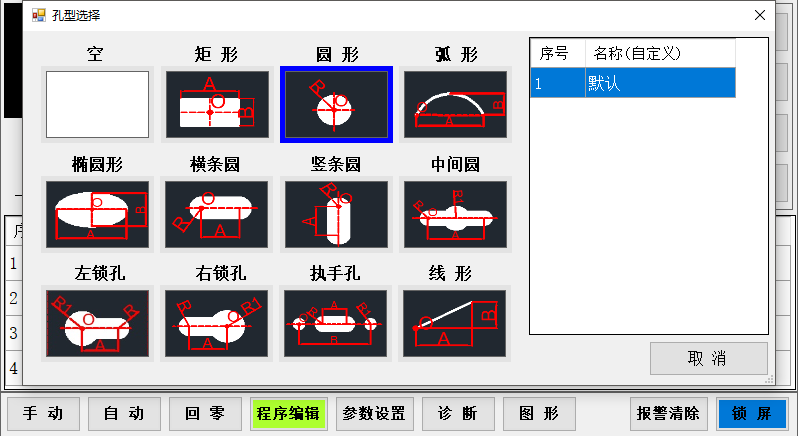

Shapes that the machine can processing in the system, you also can make own drawing:
| |

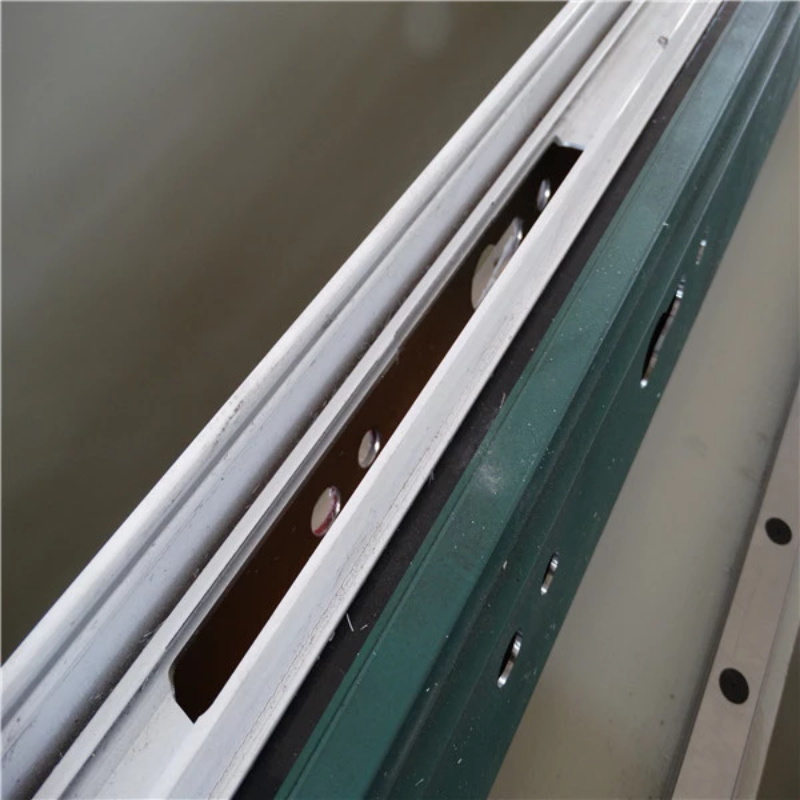

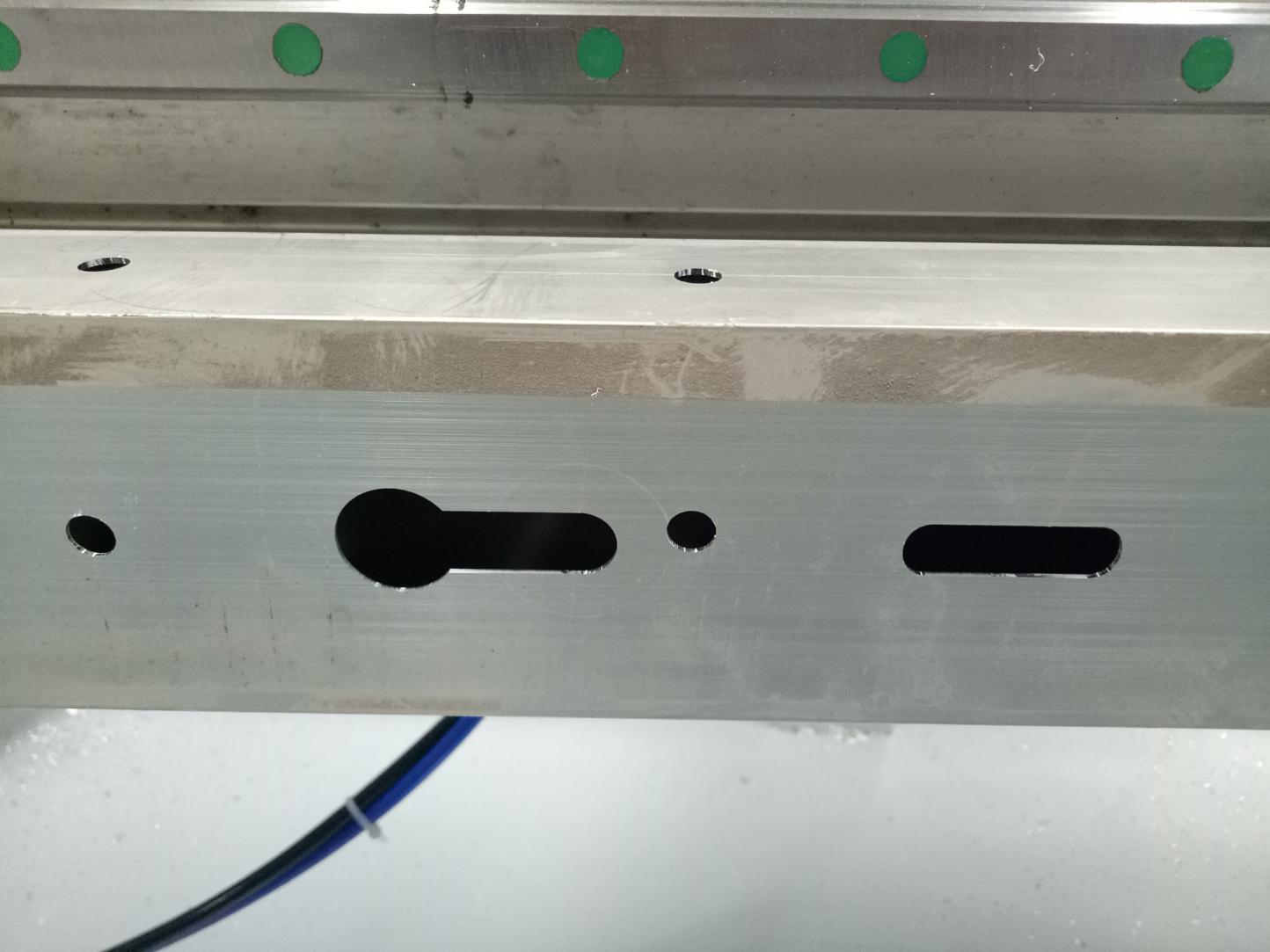

Working Samples: | |
|
|
