30T Aluminum Profile CNC Bending Machine
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
Equipment advantages
1. Suitable for bending and processing of various metal profiles or special profiles (aluminum alloy door and window profiles, thermal insulation bridge profiles).
2. The machine adopts a fully automatic CNC system and dedicated bending software, which is simple and convenient to operate. The machine uses horizontal bending and is suitable for materials with long or large shapes (heavy materials).
It can perform system compensation according to the rebound data of the profile, and has high processing accuracy.
3. It adopts CNC hydraulic system control to ensure accurate positioning.
4. Its product performance meets the standards of advanced European CNC bending machines.
Technical Parameter
Voltage | 380V 50Hz/60Hz |
Total power | 10.6kw |
Air pressure | 0.4-0.8 M pa |
Arc bending radius | R 80mm |
Fixed wheel center distance | 400-7000mm |
Roller die max radius | Φ300mm, material: nylon. |
Y-axis cylinder thrust | 30T |
Roller speed | 1-15r/min |
Roller diameter | R 80mm |
Y-axis cylinder positioning accuracy: | +/-0.1mm |
X-axis maximum torque | 3000 Nm*3=9000 Nm |
Y-axis feed stroke | 0-220mm. |
Roller shaft length | 300mm |
Processing profile range | Height 220*width 220mm. |
X-axis positioning accuracy | <0.5mm |
Minimum processing radius | 100mm (inner arc) one-time bending forming (related to the actual size of the material) |
Overall Dimension | 1900×1500×1700mm |
Weight | 2000Kg |
Configuration:

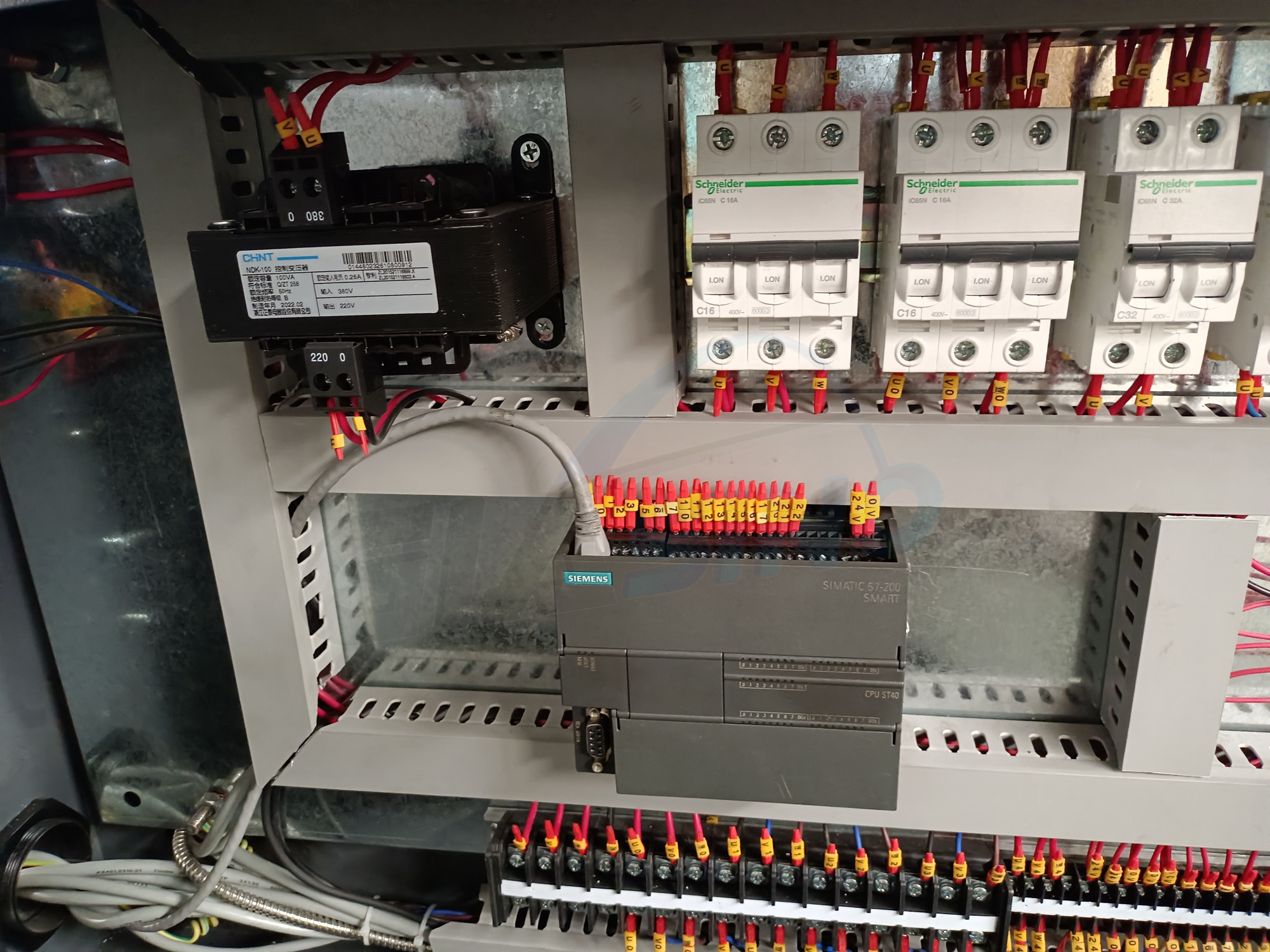

Control system | Siemens PLC controller (good stability) |

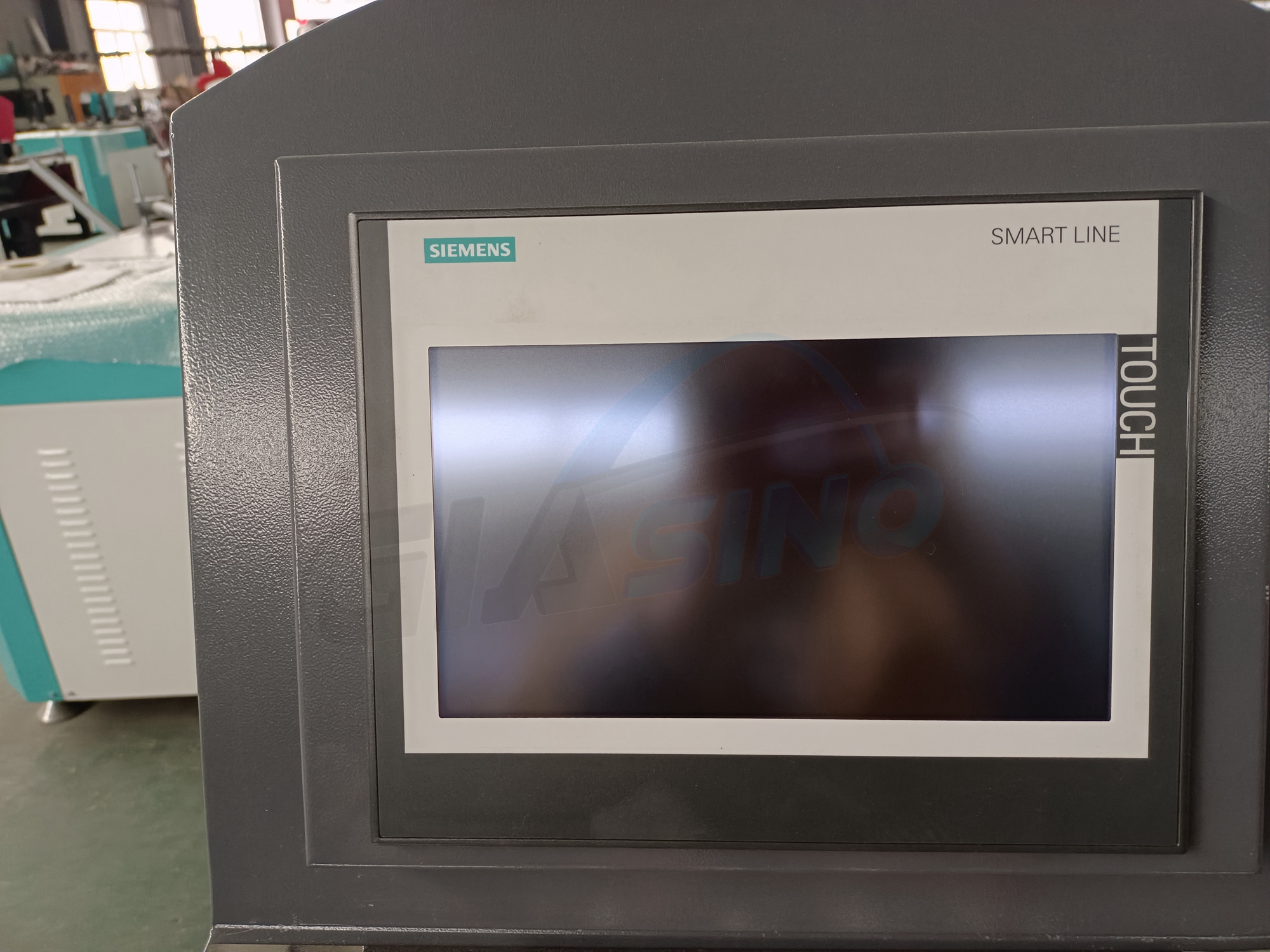

Operation screen | Siemens 10-inch touch screen (easy to use) |
hydraulic system | Yuyan |
Speed reduction | Taiwan Aimoxin |
Electrical component | French Schneider |
|
|
|
|
