4 Axis Aluminium CNC Machining Center
Category:
Summary:
Tel:
E-mail:
DESCRIPTION
Technical specification
Power supply | 380V/60Hz |
Working pressure | 0.6-0.8Mpa |
Total power | 16KW |
main spindle power | 12KW, rotation speed: 24000RPM, |
Tool Magazine | 12pcs, ISO30 |
Fixtures number | 8 sets |
Processing journey | X axis: 7000mm Y Axis: 1500mm; Z Axis: 600mm; |
Working range | 7000x400x300mm(LxWxH) |
Lubrication | Automatic |
Cooling | Oil Mist |
Precision | Working accuracy: ±0.1mm, Repeat positioning accuracy: ±0.1mm |
Control System | HANS PA |
Main spindle | OLI Italy |

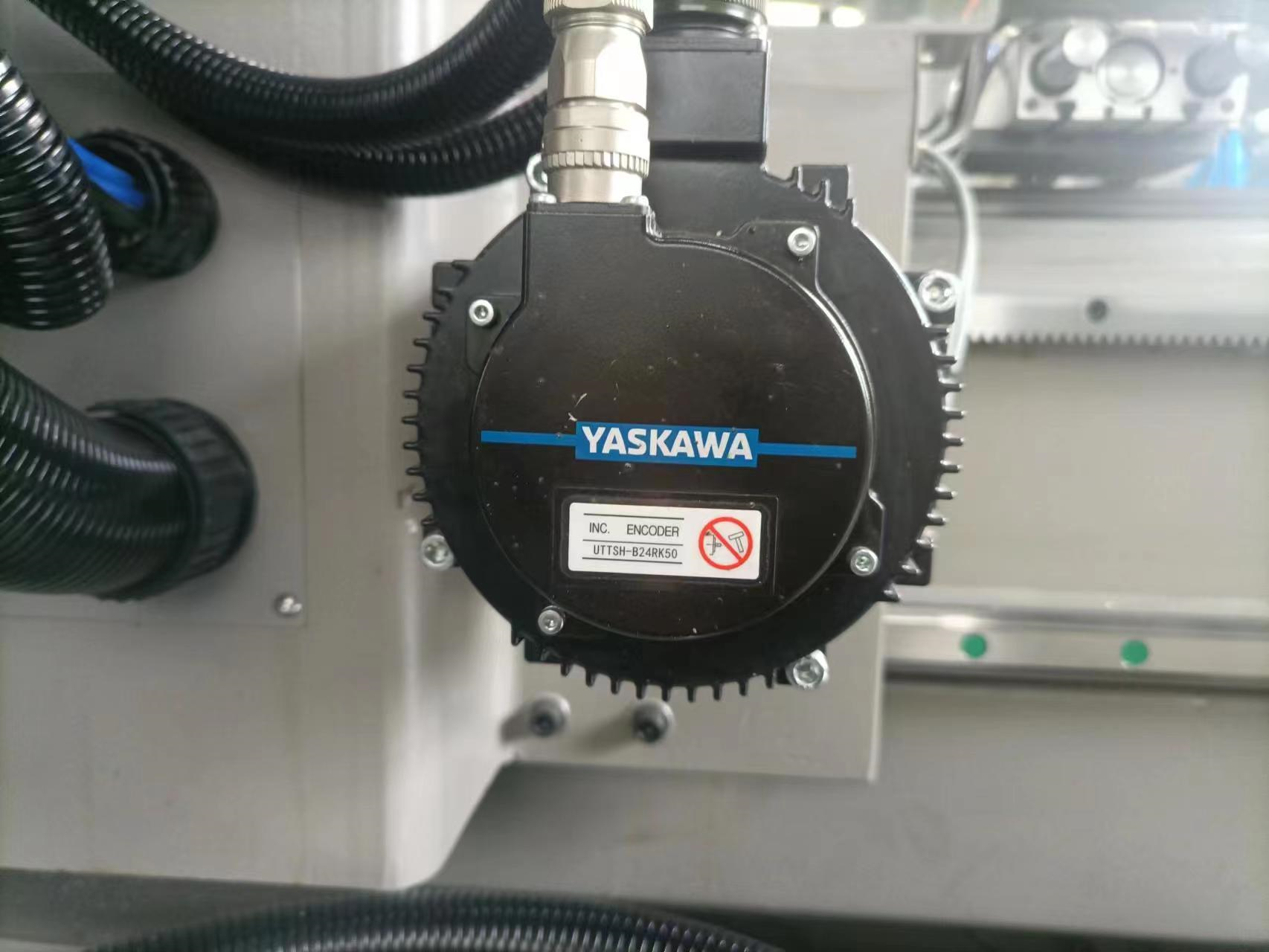

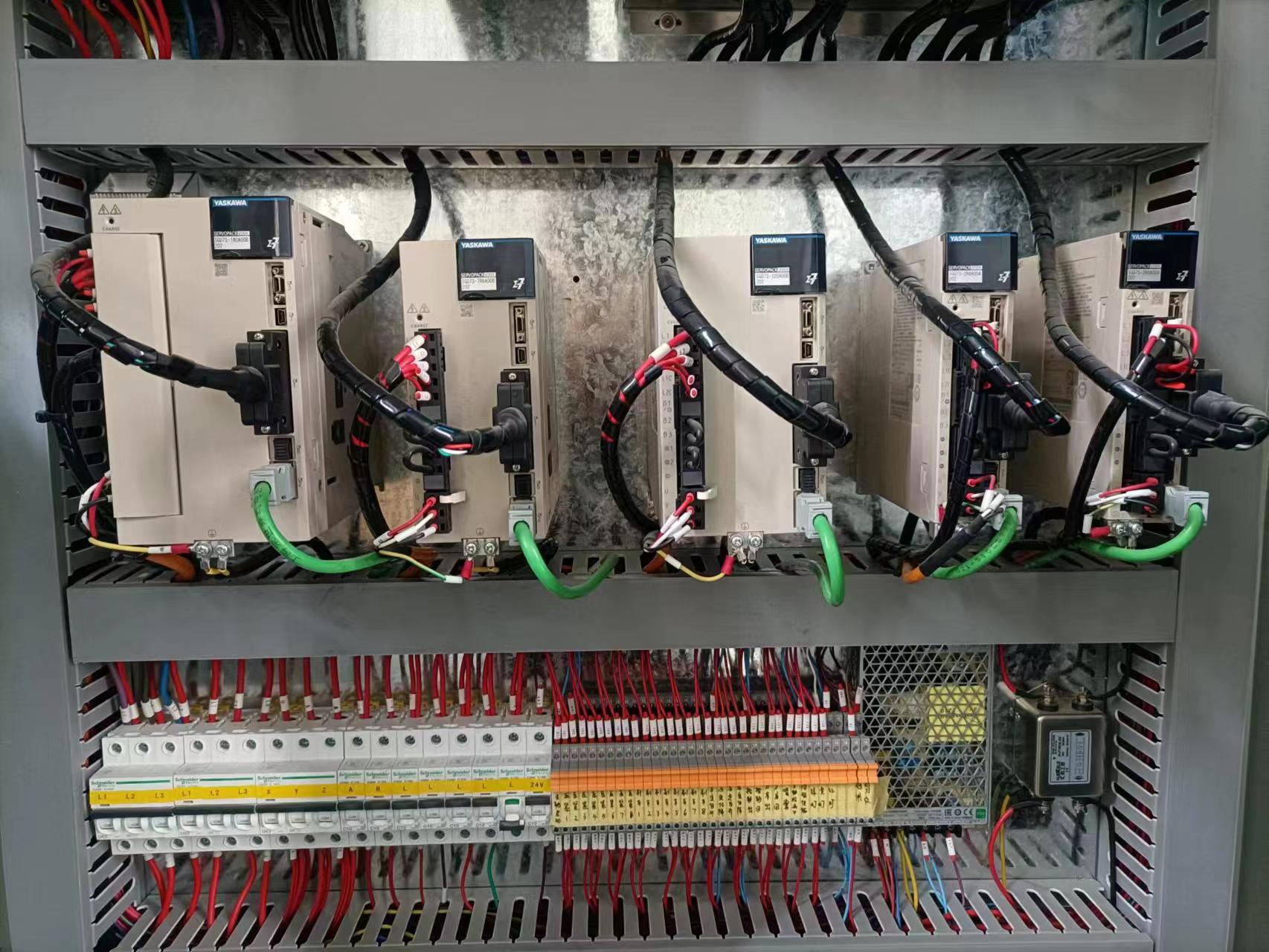

Servo motor | Yaskawa Japan, X-axis servo motor: 1.8KW Y axis servo motor: 0.85KW Z-axis servo motor: 1.3KW (brake) |

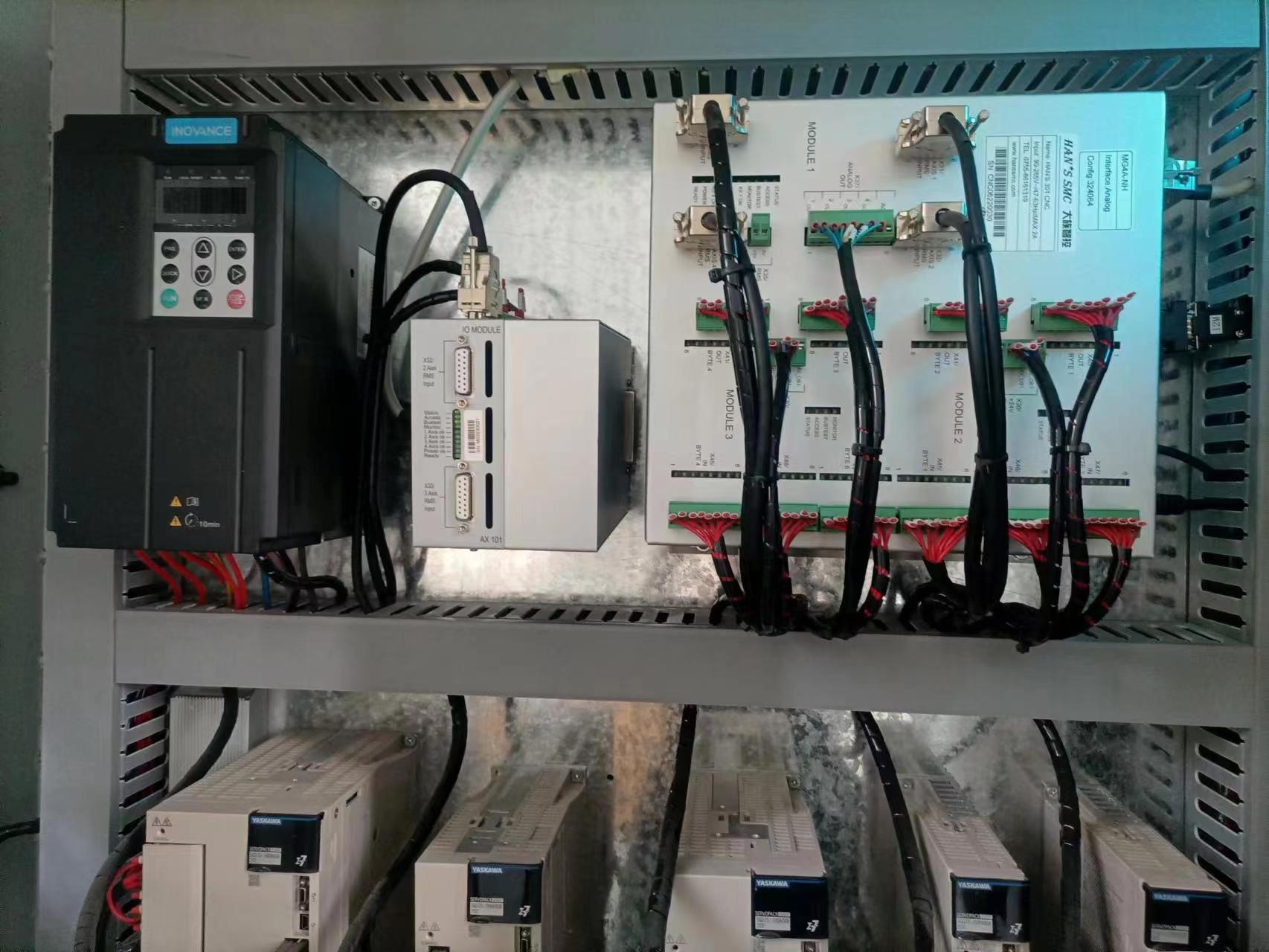

Inverter | 15kw China INOVANCE |
solenoid valve | Airtac Taiwan China |
Guide rail | PEK Italy |
Low-voltage electrical | Schneider France |
Ball screw | TBI Taiwan China |
Rack | YYC Taiwan China |
Overall dimension | About 8500x2500x2800mm |
Weight | About 5000KG |
More pictures of machine:
|
|
|
|
|
|
- It is suitable for processing various aluminum alloys, copper, PVC, automotive engineering industrial aluminum profiles, building doors, windows, curtain walls, sun rooms and other complex parts.
- This machine can clamp raw materials at one time, and complete multi-process processing such as milling keyhole slots, flow channels, air pressure balance holes, mounting holes, and engraving according to processing needs to meet customers' personalized customization of processing technology.
- The machine adopts Shenzhen Han's (PA) machine tool numerical control system, four-axis linkage machining at any angle within ±90° supports UG programming import, special CAM editing software for 3D modeling display, automatic tool setting, and can optimize the stroke path. It can complete the continuous automatic milling of different specifications and sizes of profiles, with powerful functions. CAD drawings can be imported into the system conveniently and easily, and can be connected to German Klaes, Chuang Gao, Duterte, Xingerschuco, Changfeng and other domestic and foreign door and window and curtain wall systems. software.
- It adopts a moving beam and moving column single-arm frame structure, which makes the operation more stable and improves the processing rigidity of the machine tool.
- High-quality highway servo motors, ball screws, linear guide, bearings and other mechanisms are used to ensure that the machine has high processing accuracy, high stability and reliability. The feed movement is pre-stretched to ensure stable processing accuracy.
- Automatic clamp optimization function, automatic avoidance or early warning processing when the clamping position interferes with the processing position.
- Left and right partition layout, with two left and right positioning plates, can complete interactive feeding without stopping the machine, improving processing efficiency.

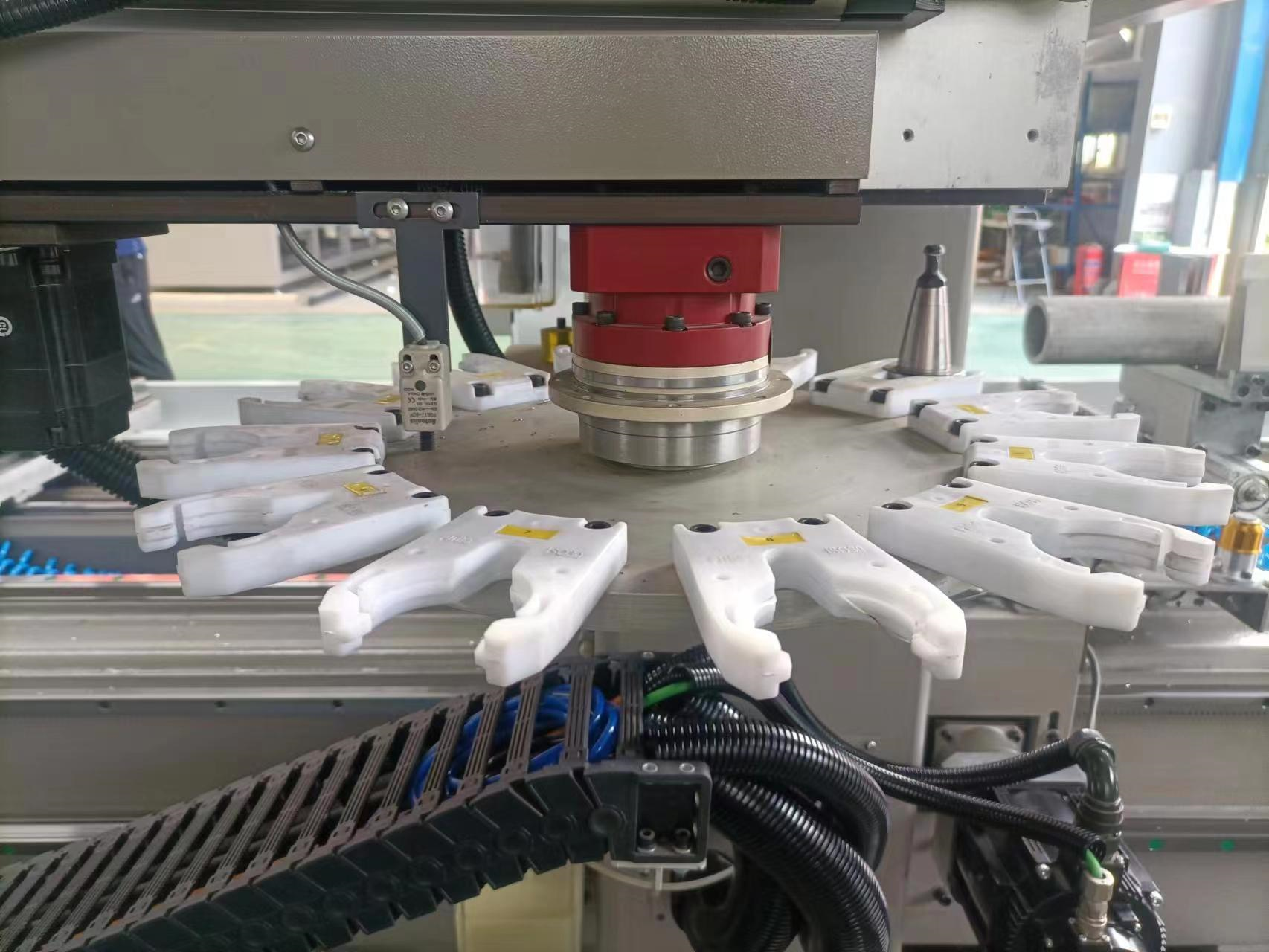

- This machine uses an imported 4-axis milling head, which can complete the processing of the other three sides except the bottom surface. Vertical disc type tool magazine (12 positions).
- The centralized automatic feed lubrication method with quantitative timing ensures the stability of machine tool accuracy and automatic micro-atomization cooling.

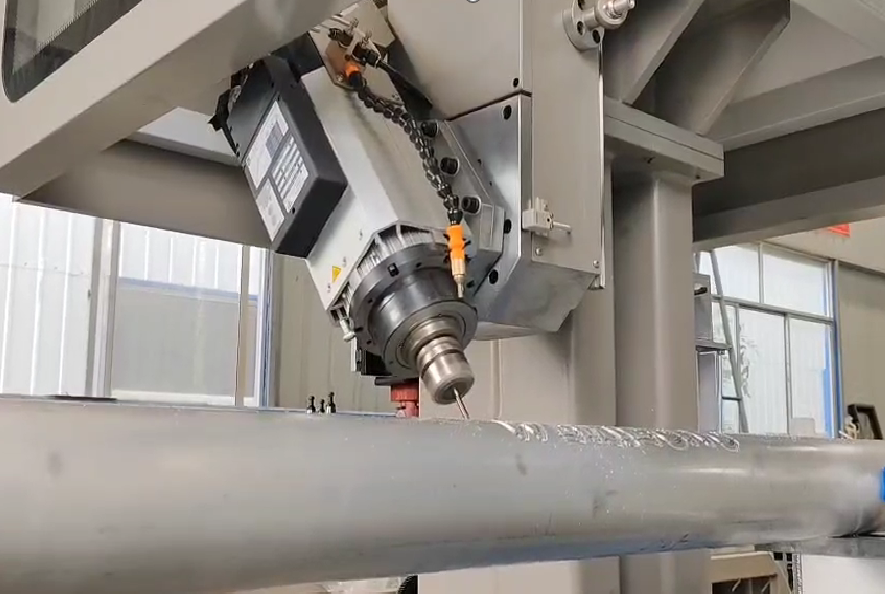

- This machine adopts a high-speed electric spindle imported from Italy, which can complete processing at any angle within ±90°. The vertical disc-type 12-tool rotating tool magazine automatically changes tools.
- Adopt pneumatic clamping workbench to improve loading and unloading speed.
- The fuselage adopts grating safety protection function to ensure safe operation.
