Horizontal CNC four corner uPVC Welding-Cleaning Line
Category:
Summary:
Tel:
E-mail:
DESCRIPTION

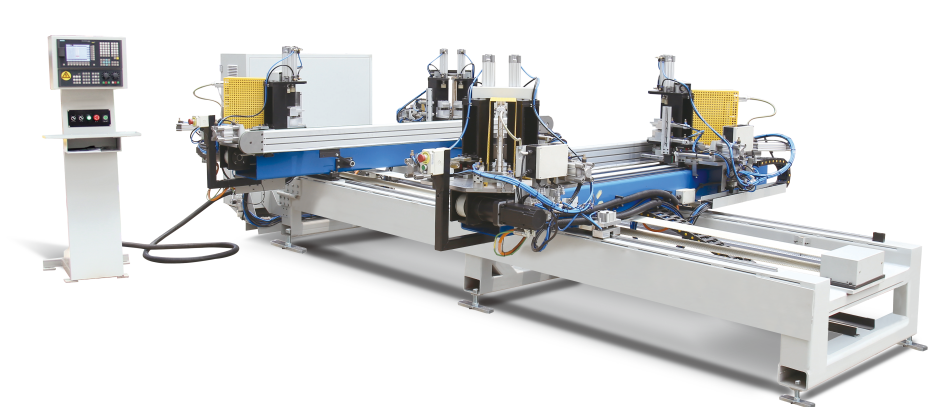

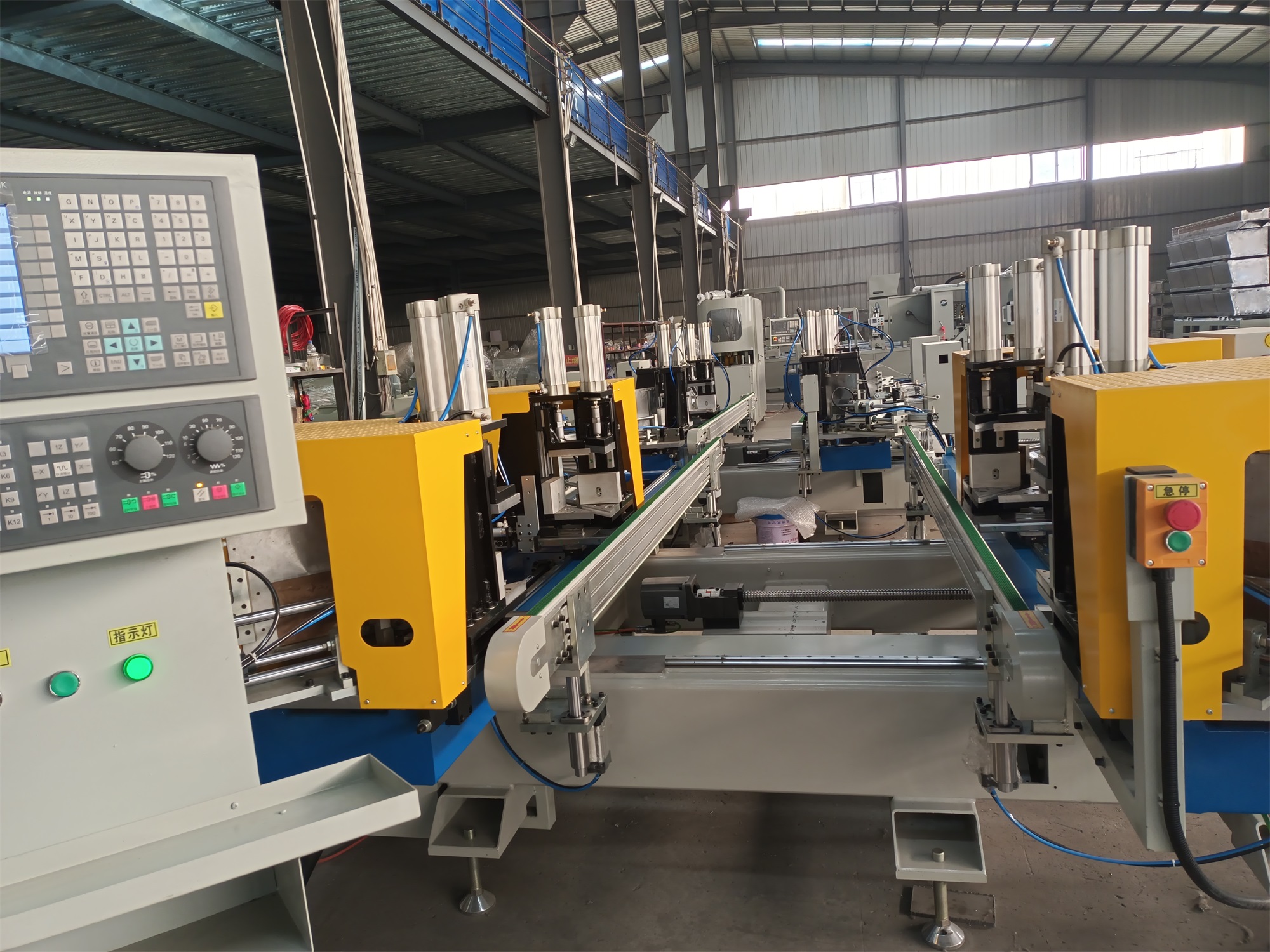

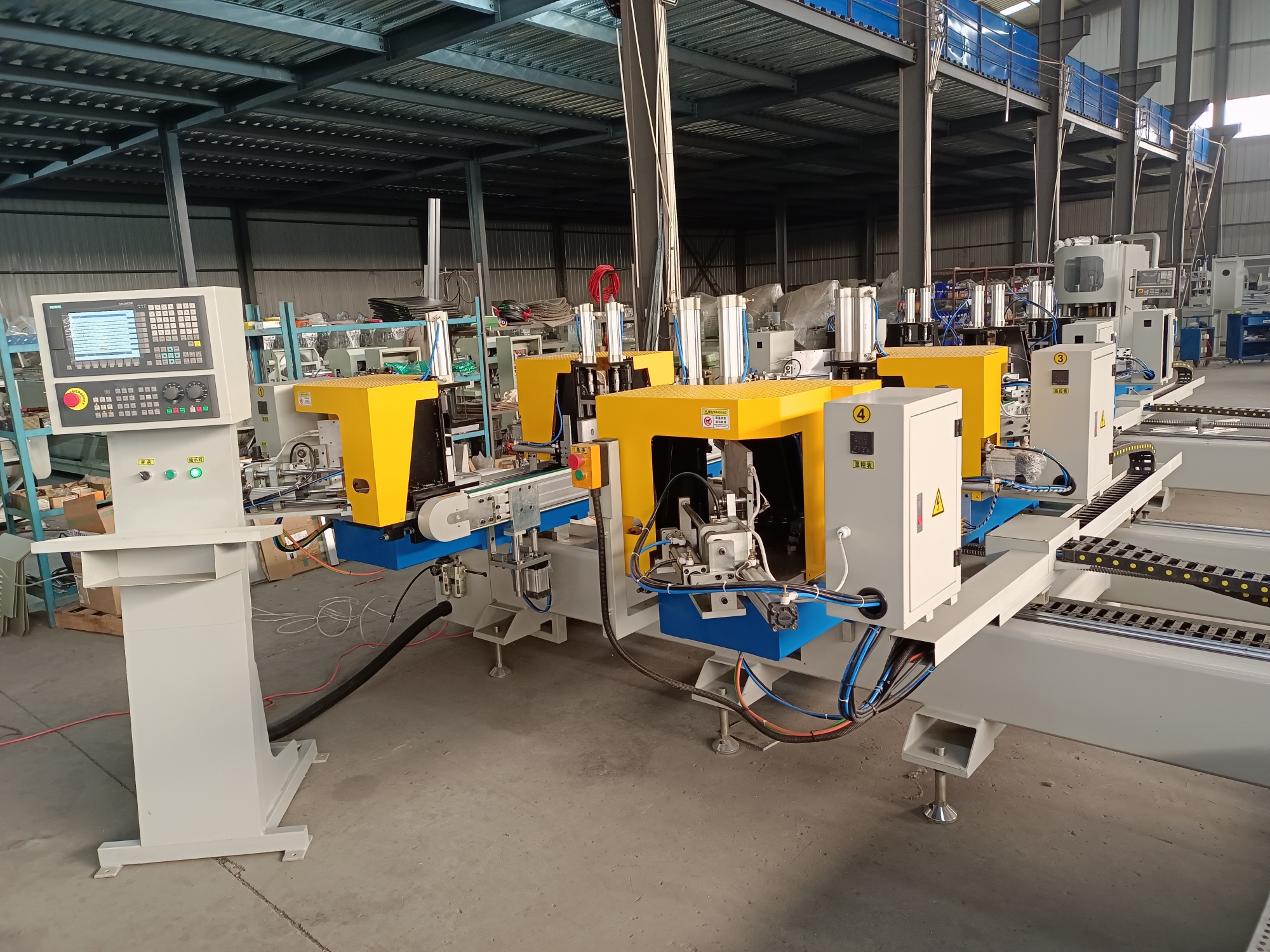

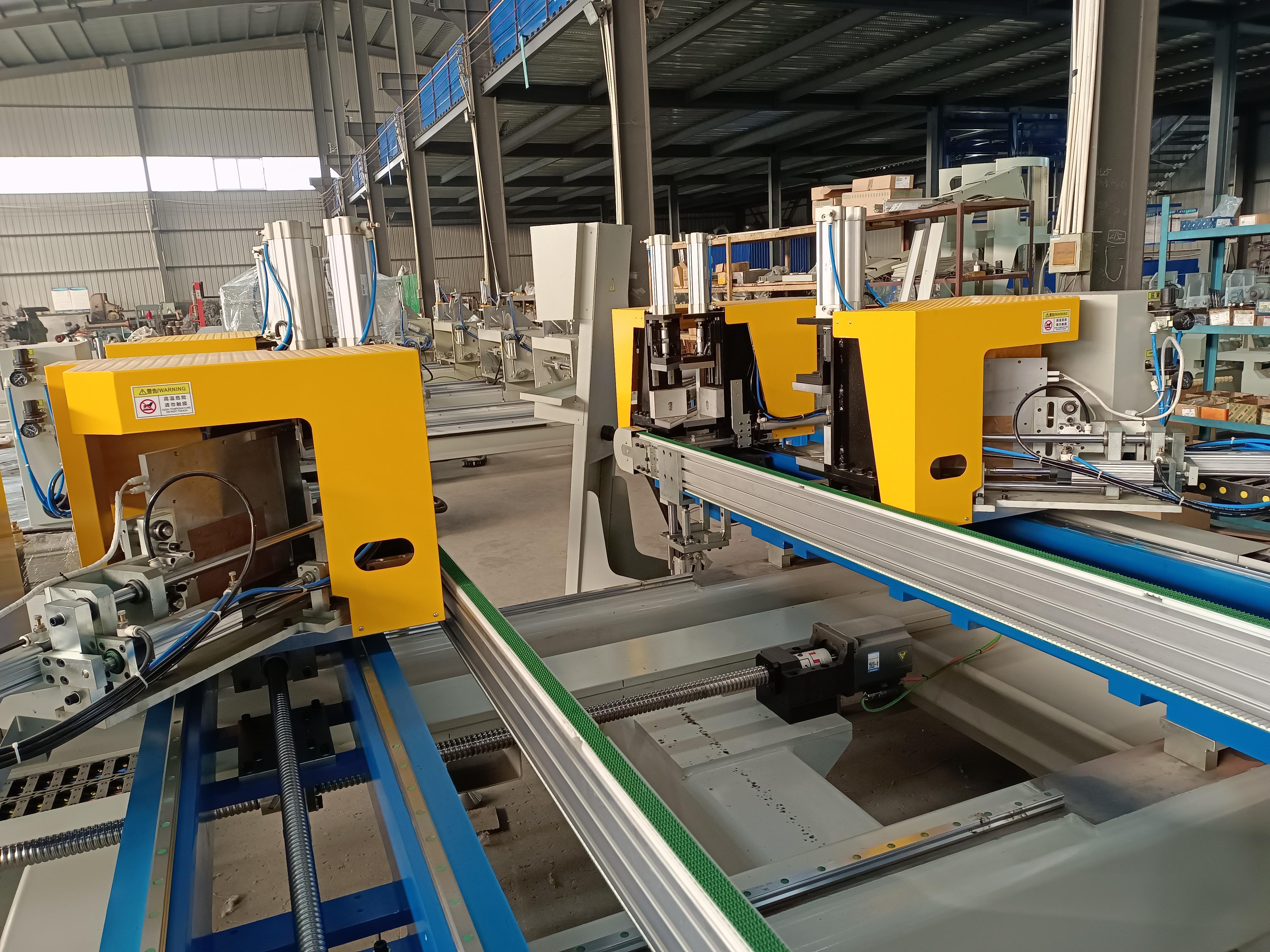

PVC CNC horizontal four-corner welding machine (SHP4W-CNC-3000A)
Equipment Advantages
- The X, Y, and Z axes of the whole machine are all driven by high-precision roller screws
The fuselage is arranged horizontally and adopts enhanced rigidity design, which is stable and reliable

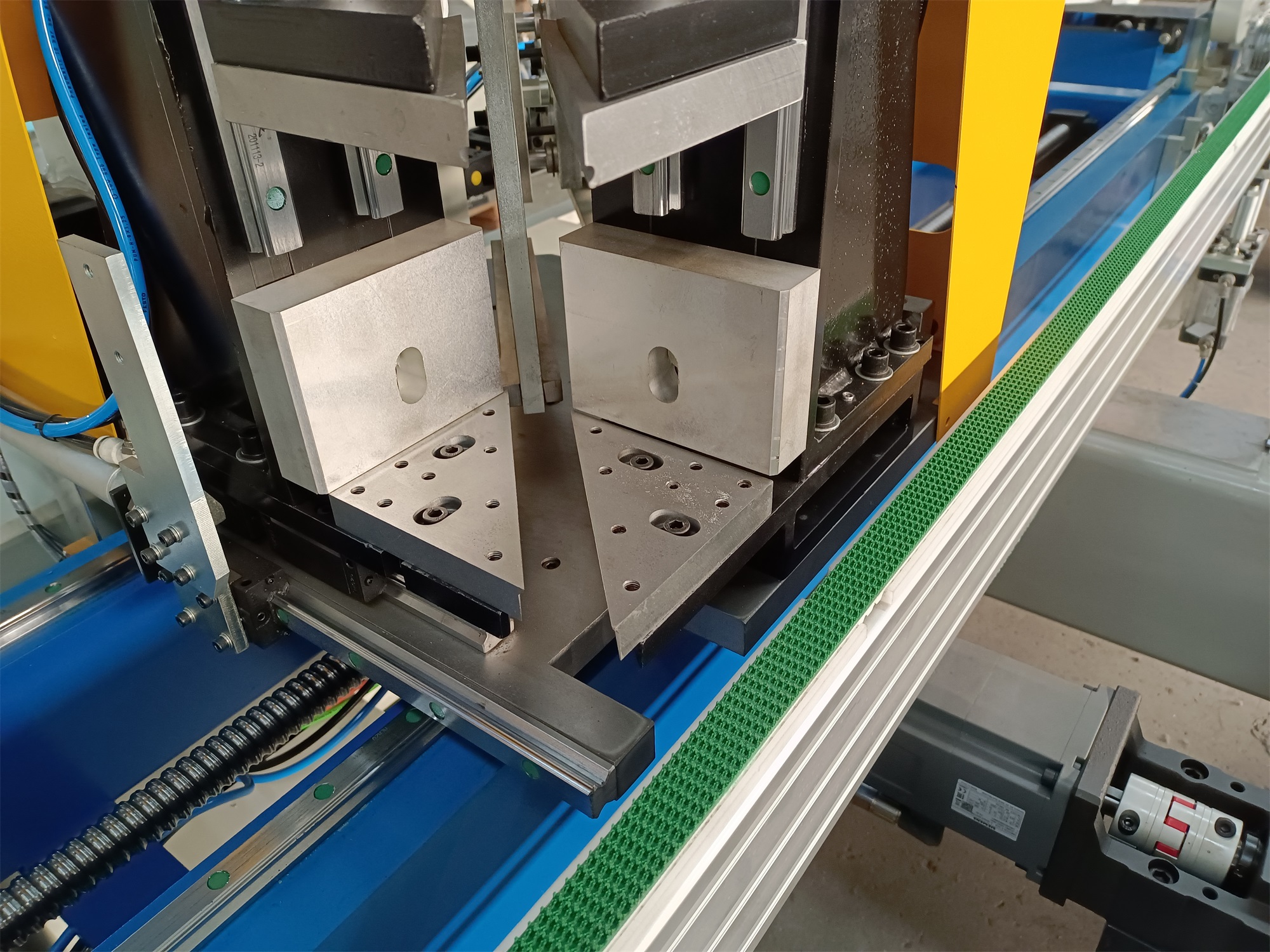

- The unique super-rigid design of the machine head can truly meet the strength requirements of the welding angle
- All feeding adopts square guide rail kinematic pairs, stable and reliable performance
The unique know-how (technical know-how) improves the weld angle strength and quality of products
- The welding backing plate can be replaced quickly and conveniently, and the door and window products are of high grade
- It adopts a complete set of imported brand numerical control system and high-quality electrical and pneumatic systems, with reliable performance
- Optimized program design, high production efficiency
- The special discharge mechanism realizes automatic discharge and reduces the labor intensity of workers
8.It can be conveniently used in in-line production to form an automatic line for welding and clearing corners
Main technical parameters
Name | Parameters |
Voltage | AC380V/50HZ Three-phase four-wire |
Working pressure | 0.5～0.8MPa |
Air consumption | 100L/min |
Working environment | CNC Controller：-5℃～60℃ LCD screen：0℃～60℃ Pneumatic Components：-5℃～70℃ |
Total Power | 13.5KW |
Welding height | 20～165mm |
Welding width | 120mm |
Welding range | 400×450mm～2400×3000mm |
Overall dimension (L × w × h) | 5200×5000×1600（mm） |
Weight | About 2000KG |

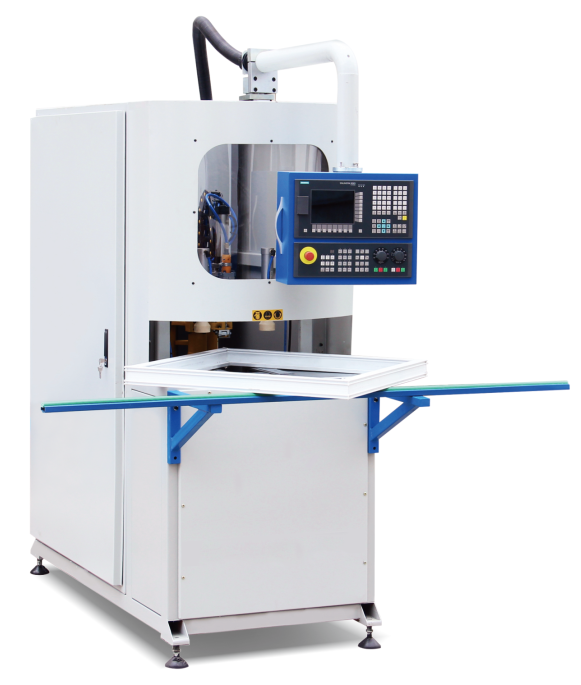

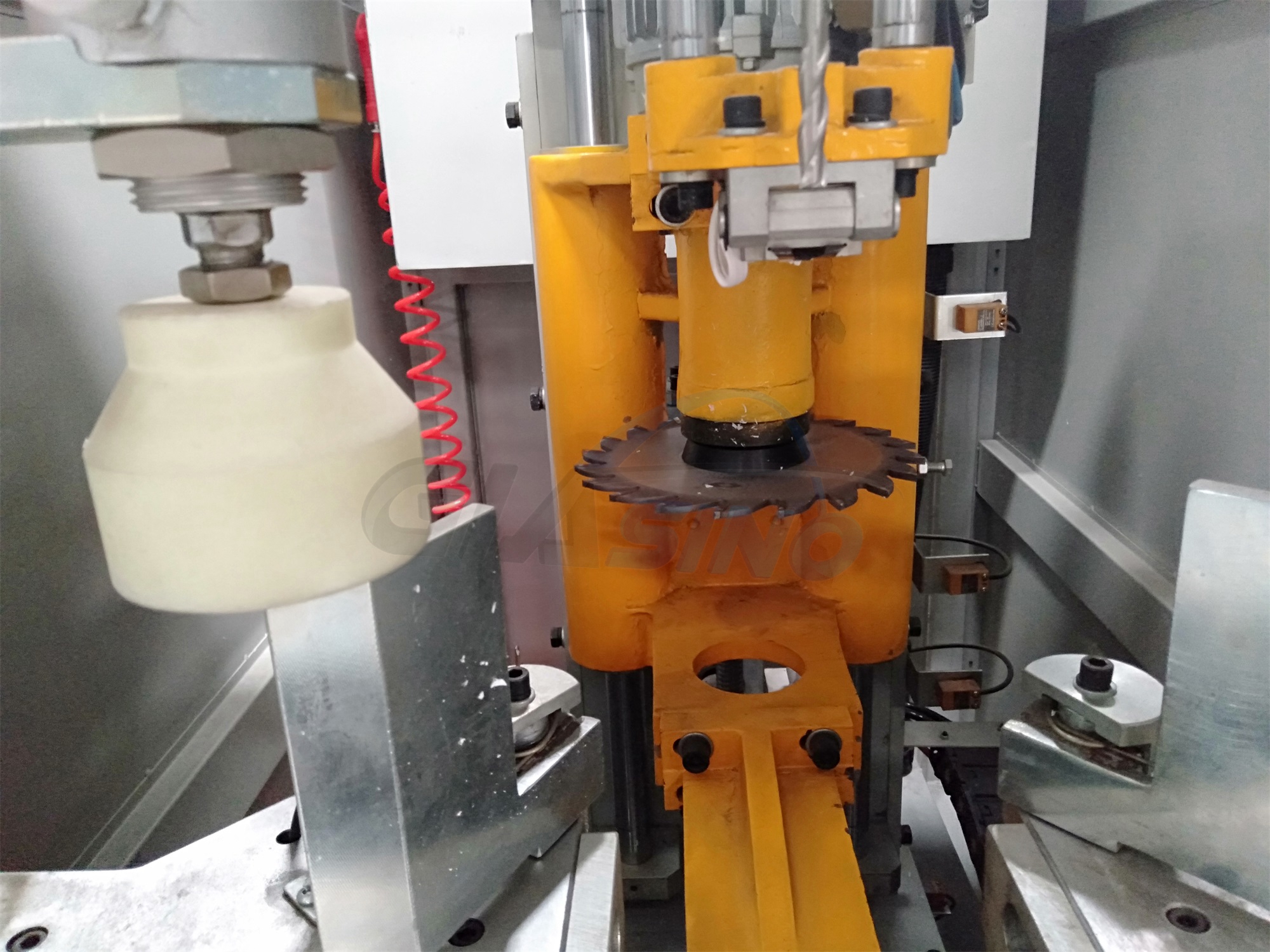

Pvc CNC corner cleaning machine (SQJA-CNC-120)
Function
Used for cleaning the welding corner joints of plastic doors and windows
Features
- Two-axis CNC system
- Servo drive system, numerical control system, solenoid valve, triplex and other main components are all imported brand-name products, with reliable performance and long service life
- The unique internal positioning method ensures the accuracy of door and window weld seam cleaning
- It can complete the cleaning of all kinds of profile welding angle facades, upper and lower plane welding seams, sealing strip grooves, etc., and can realize the processing of American-style profile lifting fan lock installation grooves at one time (optional)
- Machining programs of various specifications and profiles can be stored
- Achievable circular arc differential compensation and oblique line differential compensation, which can ideally meet the needs of making high-quality doors and windows with various cross-section profiles
- Different cutting tools can be customized according to different profile sections to meet the angle-clearing requirements of different profiles
Main technical parameters
Voltage | 380v, 50hz |
working pressure | 0.5～0.8MPa |
Main milling cutter speed | 2880r/min |
Air consumption | 40L/min |
power | 1.4kW |
Processing profile width | 20～120mm |
Processing profile height | 30~130mm |
Dimensions | 1570mm×2670mm×2070mm |
Weight | 500kg |
Main components and configuration
No. | Parts Name | Brand |

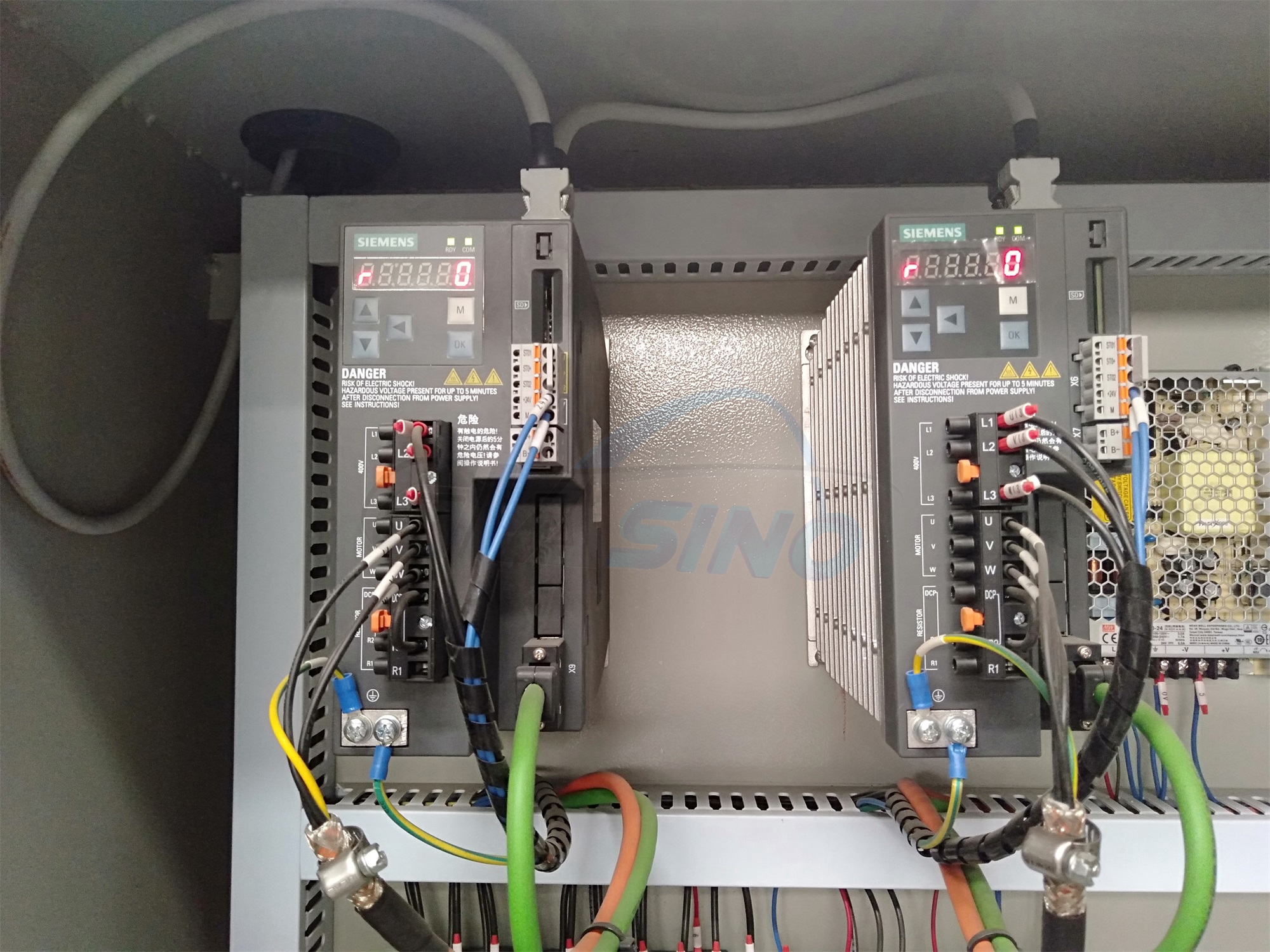

1 | Low-voltage electrical apparatus | Siemens(mostly), Germany |
2 | PLC | Siemens , Germany |

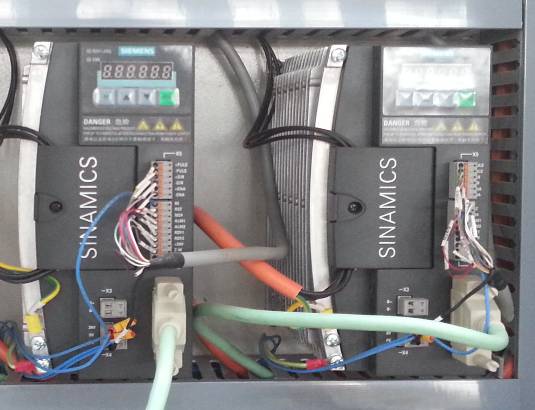

3 | Servo motor and driver | Siemens, Germany |
4 | Button | Yijia, China |
5 | Proximity switch | Omron, Japan |
6 | Relay | CHNIT/ Yudian, China |
8 | Inverter | Invoice, China |
9 | cylinder | AirTAC, Taiwan China |
10 | Solenoid valve | EMC, China |
11 | Oil water separator (filter) | EMC, China |
12 | ball screw | China |
13 | Linear guide rail | Hongli, China, not rusty |
14 | Temperature control meter | Yudian, China |
15 | spindle | Shenyi, China |

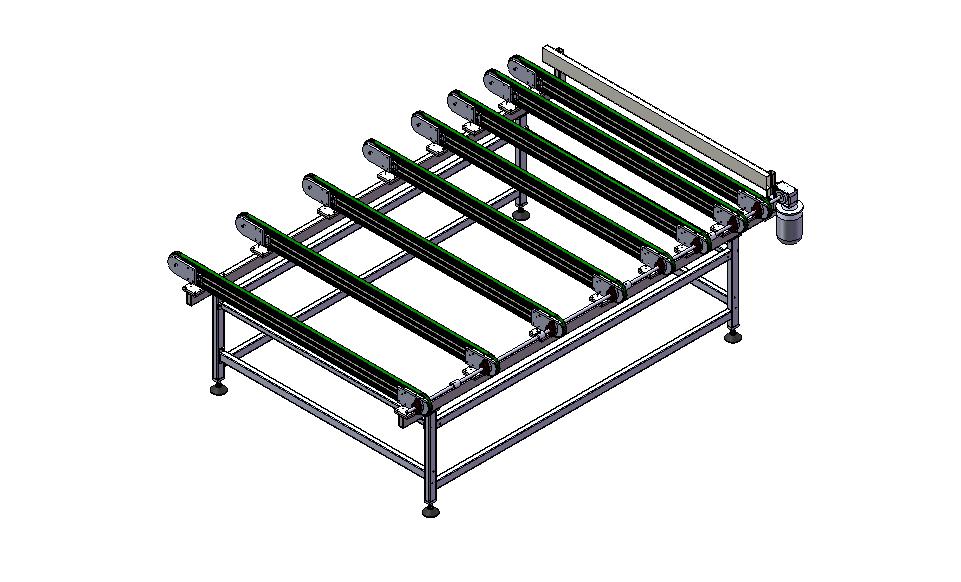

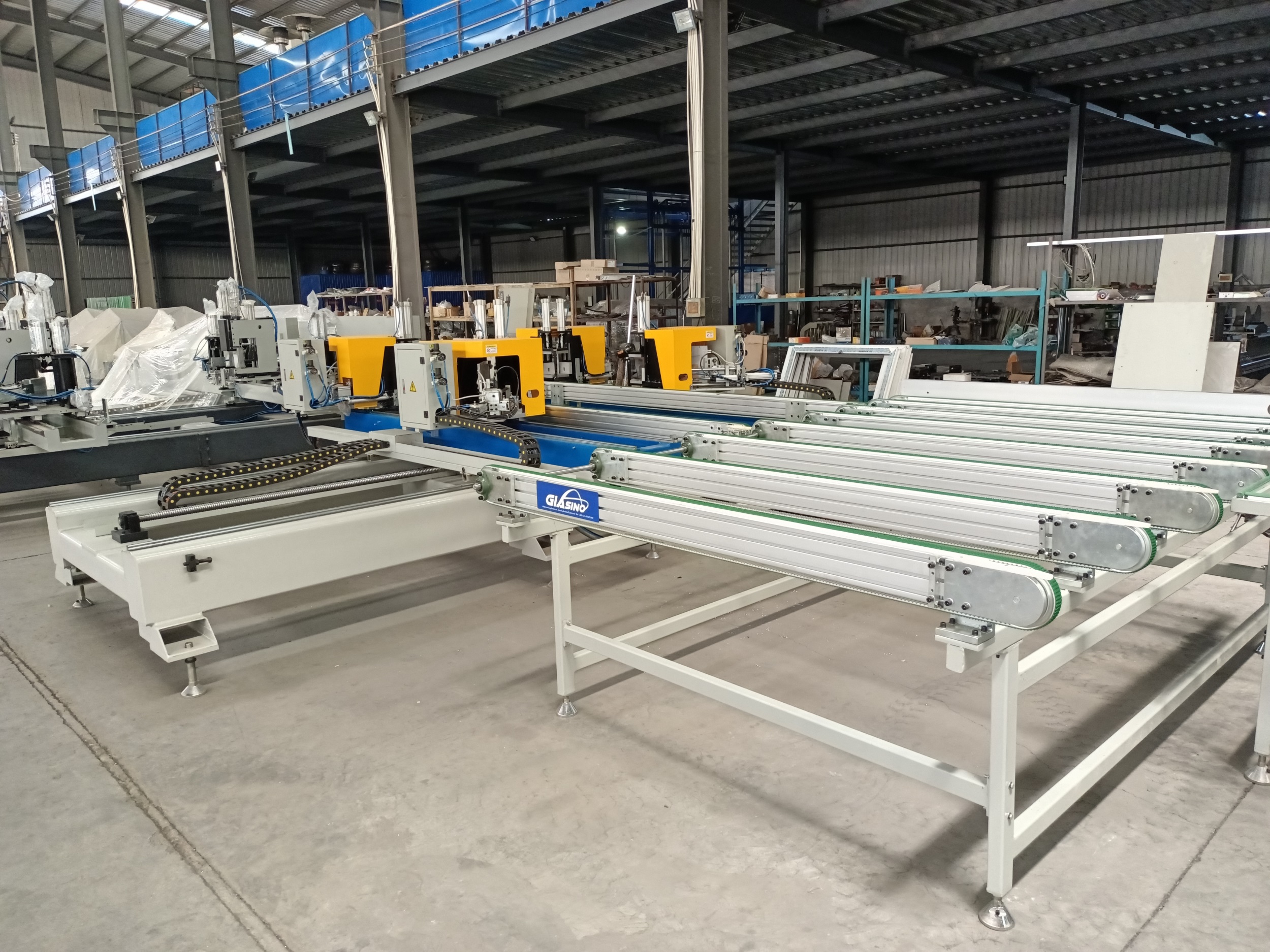

Rectangular automatic transfer table (SHQC-100)

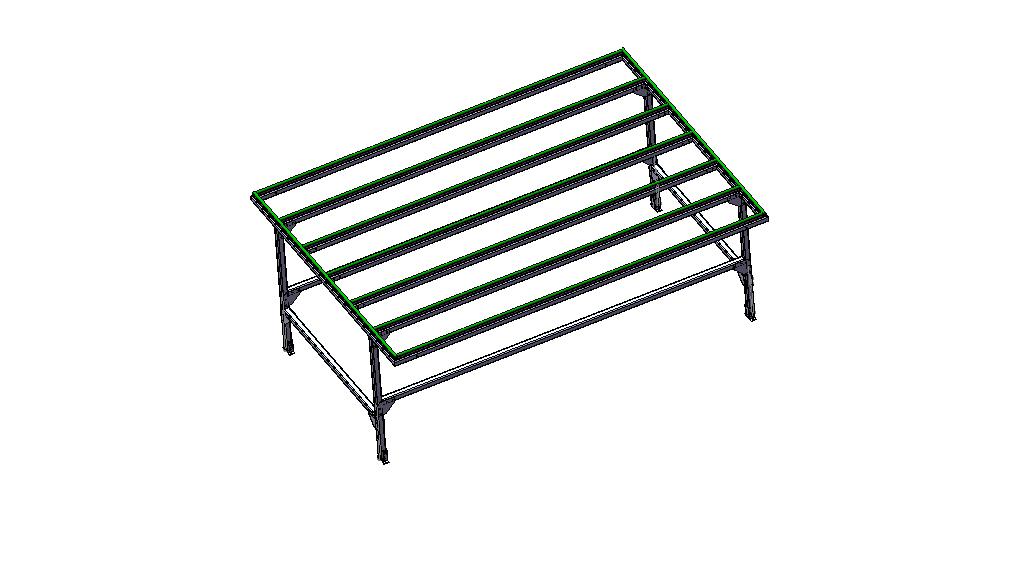

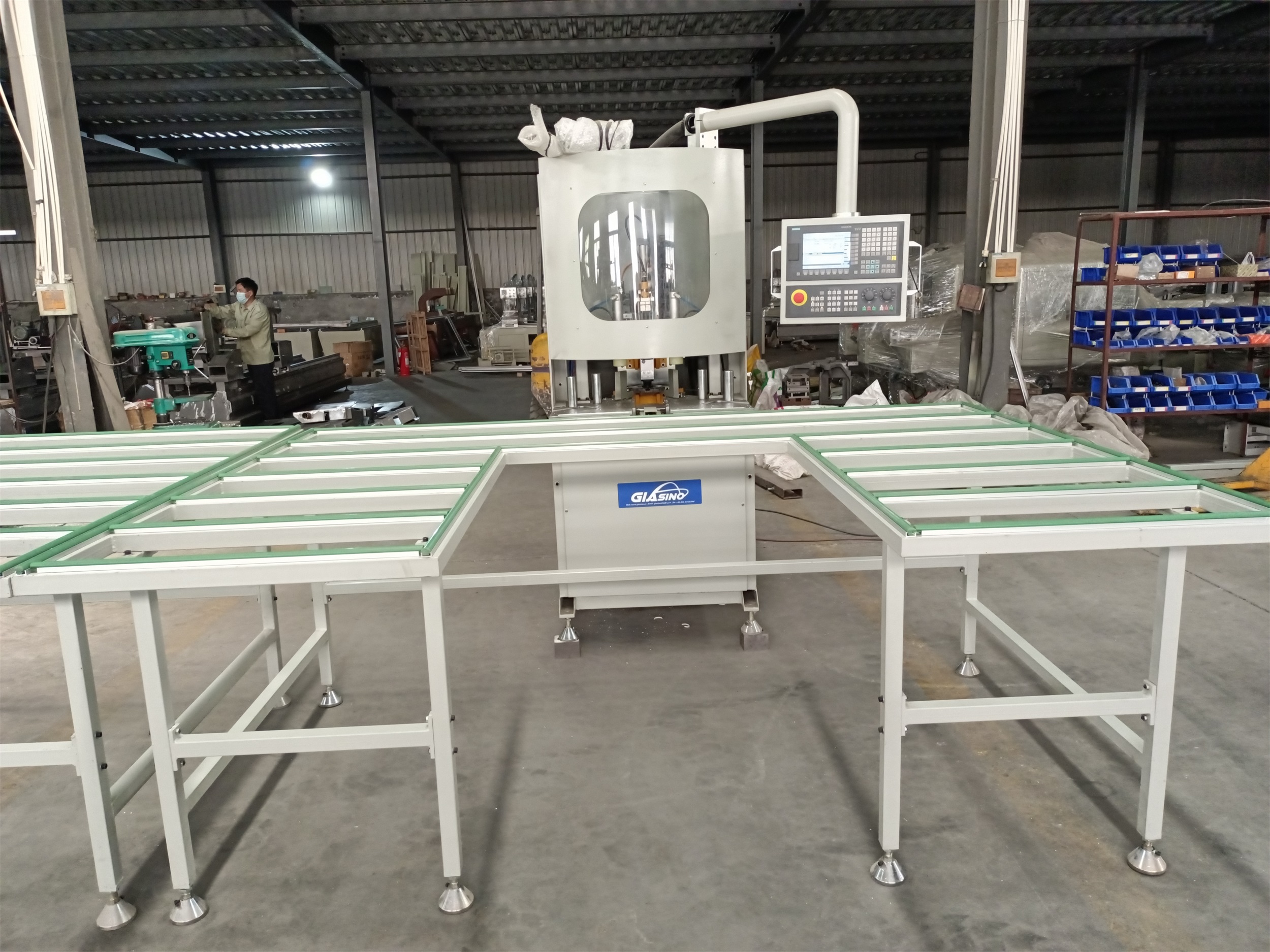

Rectangular Workbench (STKA-2500)
C type workbench
More Pictures of machine:
