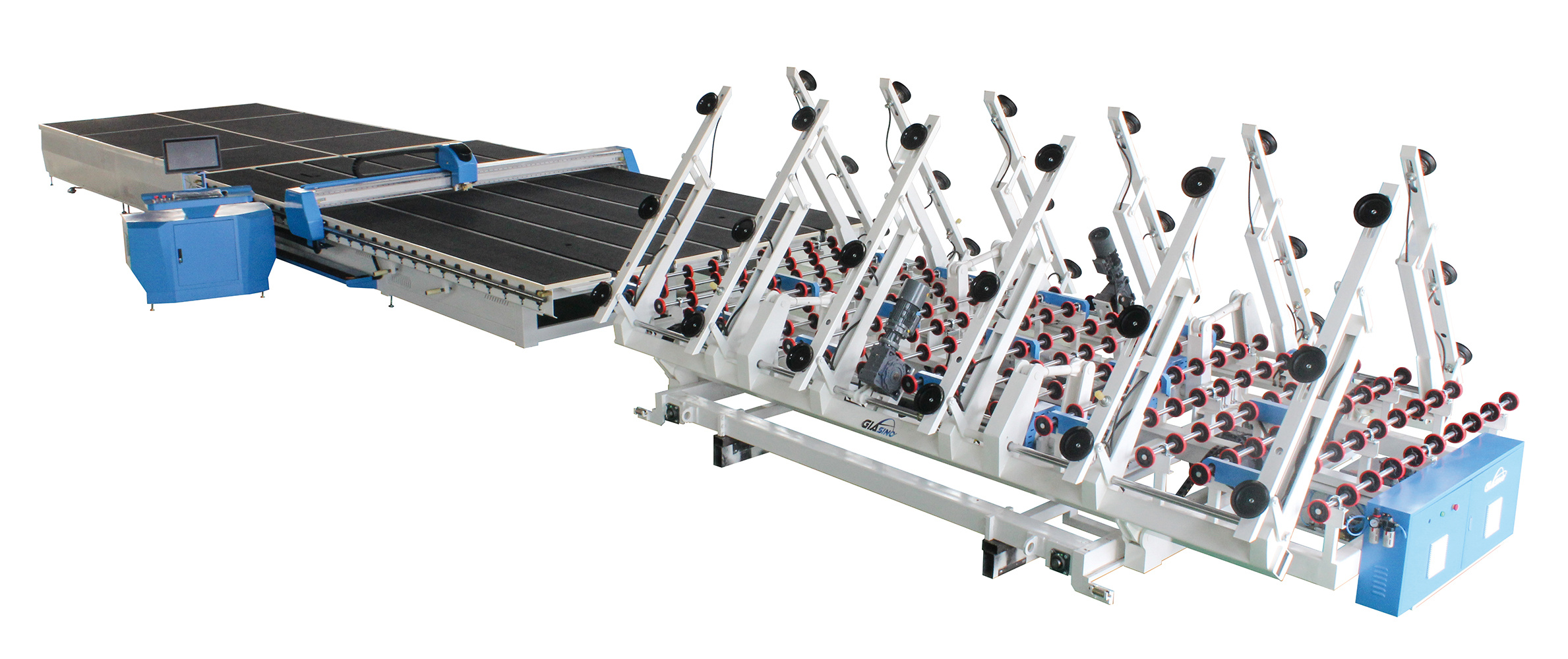

GS-CNC-6133 Automatic Glass Cutting Line(Double Drive)
GS-CNC-6133 Automatic Glass Cutting Line(Double Drive)
Compose
Automatic intelligent Glass Loading Machine +CNC Automatic Glass Cutting Machine +Glass Breaking Table
Main Function
Realize Glass automatic loading,automatic transmission, automatic positioning, automatic optimization, automatic cutting and breaking function.The higher safety,run faster, higher cutting precision, better stability, higher usage, save manpower features. Advanced mechanical structure, famous control system and Optima optimization software. Greatly improve glass cutting quality and high-usage
Main characteristics
- Maintains with the characteristic of one key type assembly line, realizes loading, cutting and breaking with one key type operation.
2. Double drive servo motor system, faster speed and higher stability.
3. Laser scan copy input function, can achieve profile modeling cutting automatically.
4. Laser-scanning and positioning system.
5. It adopts high-quality products of world-famous brands which can ensure high precision and long working life. The software can easy to redevelop and upgrade, we can also redesign or modify the product rapidly according to the market feedback.
6. Compatibility Italy Optima software and Beijing Guiyou optimization software.
7. There are complete models for all kinds of glass types and customized models for customer special requirements.
Scope Construction, hollow doors and windows,automobile, household appliances, furniture, solar, kitchen bathroom, lens, glass and other glass cutting process area.
- Technical parameters
No. |
Model | Max sheet size |
Thickness | Max Cutting Speed | Cutting precision | Dimension（LXWXH） |
Power |
mm | mm | m/min | mm/m | mm | KW | ||
1 | CNC-2620
| 2600X2000 | 2~19 | 160 | ≤±0.20 | 9000X2900X900 | 12~14 |
2 | CNC-3726
| 3660X2440 | 3~19 | 200 | ≤±0.20 | 14500X3500X900 | 16~19 |
3 | CNC-4228
| 4200X2800 | 3~19 | 200 | ≤±0.20 | 14500X3700X900 | 16~19 |
4 | CNC-5133
| 5100X3300 | 3~19 | 200 | ≤±0.20 | 17000X4200X900 | 18~22 |
5 | CNC-6133
| 6100X3300 | 3~19 | 200 | ≤±0.20 | 20000X4200X900 | 20~24 |
Glasino aim: Design and produce new and practical machines, following the development of the glass and window industry.
